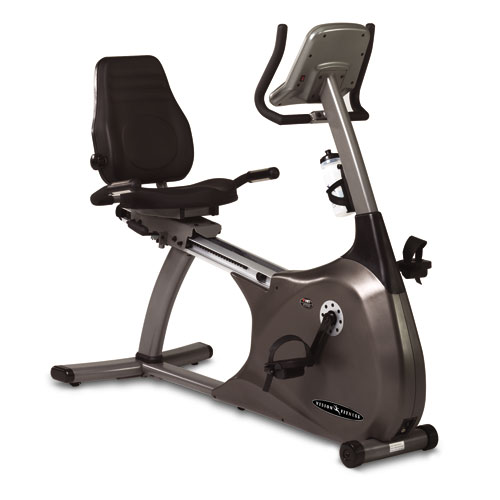

Vision Fitness - R2200HRT - 2006

Repair Parts for Vision Fitness R2200HRT RB107

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2200HRT

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 F05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F08 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
C 700255 000787-00 C10 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C09 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F F12 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

Q 700376 001161-C Q05 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
H 700381 001172-AA H11 Stopper Wheel;Seat Yes Model Compatibility List $5.56 / Each

8,12,13,14
D 700390 001193-00 D28 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

700400 001245-A D07 Bushing;U-Shaped No Model Compatibility List $1.79 / Each

8
700725 002043-A P04 Console Wire Set;1370(JXT/XHP-10+SMR-3V- Yes Model Compatibility List $76.65 / Each

7,4,5,6
P 700768 002229-00 P01 Speed Sensor Wire;480(OKI+SM-2Y);RB18 Yes Model Compatibility List $8.06 / Each

4,5,6
700796 002352-B P11 CABLE CONNECTING HRT No Model Compatibility List $3.82 / Each

7,4,5,6,12,13,14
700797 002356-B P13 WIRE PULSE CON 1200 No Model Compatibility List $9.57 / Each

4,5,6,12,13,14
T 701042 003413-00 T16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701052 003499-D2 P21 Power Adapter;9V/1.5A Yes Model Compatibility List $76.65 / Each

4,5,6
U 701132 003979-B U06 Spring;Idler Yes Model Compatibility List $6.60 / Each

2,8
701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 701174 004096-00 R07 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

R 701202 004157-00 R06 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

23
701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
N 701316 004372-00 N07 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

Q 701365 004416-00 Q09 Screw;FH;M5x0.8Px20L No Model Compatibility List $0.49 / Each

C 701401 004454-00 C13 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

R 701403 004457-00 R14 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
D 701435 004482-00 D44 Screw;Round;Hex Socket;SH;M8X1.25PX20L No Model Compatibility List $1.79 / Each

H 701449 004493-00 H08 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

D 701471 004520-00 D35 Screw;Round;Hex Socket;M5x0.8Px22L No Model Compatibility List $2.00 / Each

2
D 701479 004526-00 D19 Screw;Hex Socket;Round;M6x1.0Px30L No Model Compatibility List $2.00 / Each

2
H 701583 004615-00 H10 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701586 004617-00 Q07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

D 701685 004716-00 D29 Screw;BH;M6X1.0PX55L-23L;;HS;;BZN;;P-T No Model Compatibility List $1.79 / Each

701717 004737-00 F09 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
F 701718 004739-00 F13 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
H 701841 004859-00 H03 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701849 004867-A Q15 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701909 004935-00 D20 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

701961 005004-00 D30 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701987 005025-00 T21 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
702040 005070-00 D25 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
L 702068 005097-00 L06 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
T 702177 005219-00 T19 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

702217 005330-00 Q11 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702226 005351-00 R09 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

U 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

D 702287 005482-C D15 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
702313 005968-B V02 MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
D 702480 007904-D D14 Plate Position No Model Compatibility List $99.35 / Each

3
P 702489 008021-C P02 Fix Plate;Speed Sensor No Model Compatibility List $3.82 / Each

3
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702752 009524-B H01 RAIL SEAT HRT ASSEMBLY No Model Compatibility List $155.66 / Each

7,9,3,12,13,14
D 702764 009581-J D06 FIXING BLOCK SEAT Yes Model Compatibility List $23.89 / Each

12,13,14
703414 014402-AA D27 Back Pad;RB77 No Model Compatibility List $575.56 / Each

4,5,6,12,13,14
T 703415 014411-AA T18 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
E 703436 014658-00 ECB ECB Brake Assembly Z3260121 Yes Model Compatibility List $89.00 / Each

10
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
P 703745 015971-Z PAX Pedal Axle Set Yes Model Compatibility List $164.79 / Each

8,9
703747 015987-ZL T02 CRANK ASSEMBLY LEFT Yes Model Compatibility List $57.49 / Each

8,3
T 703748 015987-ZR T03 CRANK ASSEMBLY RIGHT Yes Model Compatibility List $57.49 / Each
Out Of Stock 		3,8
703749 015990-Z AD5 Frame Set;Seat Back D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $175.92 / Each

3,4,5,6,12,13,14
A 703750 015992-Z AD3 Seat Roller Set Yes Model Compatibility List $34.74 / Each

8,12,13,14
D 703751 015994-Z DAX Drive Axle Set Yes Model Compatibility List $315.54 / Each

8,10
703752 015997-Z AN2 Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
703753 015998-ZL Q01 COVER SIDE LEFT No Model Compatibility List $98.18 / Each

9
703754 015998-ZR Q02 COVER SIDE RIGHT No Model Compatibility List $98.18 / Each

9
D 703807 017550-C D04 Seat Lever Yes Model Compatibility List $15.60 / Each
Out Of Stock 		3,12,13,14
U 703809 017657-00 U05 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

703903 019160-BA F14 COVER SEAT POST RUBBER No Model Compatibility List $1.95 / Each

9,12,13,14
R 703969 020024-00 R17 Screw;Phillip;BH;M6x1.0Px12L;BED;Adhere; No Model Compatibility List $2.00 / Each

D 703980 020050-Z D24 Screw;BH;Sunk;M6X1X20;Zinc No Model Compatibility List $1.66 / Each

2
R 703985 020061-00 R15 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
P 704072 020184-00 P08 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

704118 020274-Z L05 Screw;Hex Socket;BH;M8x1.25Px19L No Model Compatibility List $1.07 / Each

2
H 704292 022293-B H12 Seat Stop;Rail Assembly No Model Compatibility List $4.06 / Each

9,3,12,13,14
704900 025868-Z NOT SHOWN BACK SEAT CLIP No Model Compatibility List $15.00 / Each

2,4,5,6,12,13,14
704905 025948-Z AC1 MAST CONSOLE ASSEMBLY No Model Compatibility List $129.69 / Each

7,3
707014 068356-Z D16 Lever;Seat Knob No Model Compatibility List $3.82 / Each

3,12,13,14
707037 068824-Z Q04 Crank Cover No Model Compatibility List $9.57 / Each

8,9
708151 1000100565 D26 PAD SEAT Yes Model Compatibility List $142.48 / Each

12,13,14
709103 1000109595 T04 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
712753 1000230522 D58 Cover Seat Back;ABS;BL;R70-02; No Model Compatibility List $47.89 / Each

9,4,5,6,12,13,14
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

Power Jack 728841 097930 P05 Power Jack Yes Model Compatibility List $16.51 / Each

729324 ZMS1000076 D34 BOLT SH M5X22 PARTIAL No Model Compatibility List $2.00 / Each

2
M6-1.0 X 56MM Screw 1018911 004716-Z 0 1 M6-1.0 X 56MM Screw No Model Compatibility List $6.49 / Each

2
Idler Belt Pulley Set (Used) 1018923 025967-Z 0 1 Idler Belt Pulley Set (Used) Yes Model Compatibility List $50.70 / Each

8
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

Display Console (Used) 1000431 019704-A AN1 1 Display Console (Used) Yes Model Compatibility List $183.99 / Each
Out Of Stock 		51
E 1000478 014658-00 ECB 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each

10
R 1000484 004157-00 R06 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

Book Tablet Holder (Used) 1032496 R2250HRT-BTH 0 1 Book Tablet Holder (Used) No Model Compatibility List $10.00 / Each

Display Console Board (Used) 1032509 R2250HRT-DCB 0 1 Display Console Board (Used) No Model Compatibility List $149.00 / Each
Out Of Stock
Power Switch On Off (Used) 1032457 R2250HRT-PSOO 0 1 Power Switch On Off (Used) No Model Compatibility List $10.00 / Each
Out Of Stock
Pulse Receiver Hand Heart Rate H601B (Used) 1032470 s00-C001B 0 1 Pulse Receiver Hand Heart Rate H601B (Used) No Model Compatibility List $19.99 / Each

Wireless HR Heart Rate Board Sensor (Used) 1032483 R2250HRT-WHRBS 0 1 Wireless HR Heart Rate Board Sensor (Used) No Model Compatibility List $14.99 / Each

AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
E 1001818 014658-00 ECB Magnetic Brake Yes Model Compatibility List $59.99 / Each

10
R 701174 004096-00 R07 Bearing, Clutching No Model Compatibility List $20.72 / Each

T 1037441 1000109595 T04 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
Q 957398 005330-00 Q11 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

View Drawing
