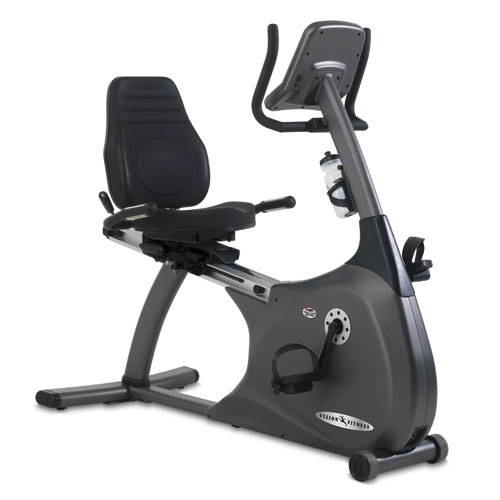

Vision Fitness - R2200HRT - 2007

Repair Parts for Vision Fitness R2200HRT RB115

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2200HRT

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
M6-1.0 X 56MM Screw 1018911 004716-Z 0 1 M6-1.0 X 56MM Screw No Model Compatibility List $7.79 / Each

2
Idler Belt Pulley Set (Used) 1018923 025967-Z 0 1 Idler Belt Pulley Set (Used) Yes Model Compatibility List $35.99 / Each

8
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
704905 025948-Z AC1 MAST CONSOLE ASSEMBLY No Model Compatibility List $129.69 / Each

7,3
706797 065625-Z AC3 Handlebar Mast Assembly No Model Compatibility List $119.81 / Each

3,11
706818 065833-Z AD1 BASE SLIDING ASSEMBLY No Model Compatibility List $627.72 / Each

3
706798 065630-Z AD2 HANDLEBAR SEAT ASSEMBLY D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $195.94 / Each

3,12,13,14,11
706520 062978-AB AD5 FRAME SEAT BOTTOM No Model Compatibility List $169.49 / Each

3,12,13,14
706724 064998-A AD7 FRAME SEAT BACK No Model Compatibility List $133.28 / Each

3,4,5,6,12,13,14
726746 084572 AD8 SEAT LEVER RECLINING ASSEMBLY No Model Compatibility List $24.91 / Each

707333 1000092117 AD10 LEVER SEAT ASSEMBLY RECLINING No Model Compatibility List $163.75 / Each

3,12,13,14
Display Console (Used) 1000431 019704-A AN1 1 Display Console (Used) Yes Model Compatibility List $183.99 / Each
Out Of Stock 		51
Display Console (Used) 1032451 062084-ax AN1 1 Display Console (Used) No Model Compatibility List $249.00 / Each
Out Of Stock
703752 015997-Z AN2 Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
701699 004724-00 C06 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

C 701937 004973-00 C08 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
700262 000808-B C09 Water Bottle No Model Compatibility List $9.88 / Each

1
C 700255 000787-00 C10 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
C 701401 004454-00 C13 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

D 703807 017550-C D04 Seat Lever Yes Model Compatibility List $15.60 / Each
Out Of Stock 		3,12,13,14
D 702764 009581-J D06 FIXING BLOCK SEAT Yes Model Compatibility List $23.89 / Each
Out Of Stock 		12,13,14
700400 001245-A D07 Bushing;U-Shaped No Model Compatibility List $1.79 / Each

8
D 702480 007904-D D14 Plate Position No Model Compatibility List $99.35 / Each

3
D 702287 005482-C D15 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
D 702588 008829-C D16 Knob;Seat Lever Yes Model Compatibility List $9.57 / Each

3,12,13,14
D 701479 004526-00 D19 Screw;Hex Socket;Round;M6x1.0Px30L No Model Compatibility List $2.00 / Each

2
701909 004935-00 D20 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

D 703980 020050-Z D24 Screw;BH;Sunk;M6X1X20;Zinc No Model Compatibility List $1.66 / Each

2
708151 1000100565 D26 PAD SEAT Yes Model Compatibility List $142.48 / Each

12,13,14
725353 070348 D27 PAD SEAT BACK No Model Compatibility List $237.30 / Each

D 700390 001193-00 D28 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

D 701685 004716-00 D29 Screw;BH;M6X1.0PX55L-23L;;HS;;BZN;;P-T No Model Compatibility List $1.79 / Each

701961 005004-00 D30 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

D 701687 004718-00 D31 Screw;Oval;Hex Socket;M8X1.25PX10L No Model Compatibility List $1.85 / Each

2
729324 ZMS1000076 D34 BOLT SH M5X22 PARTIAL No Model Compatibility List $2.00 / Each

2
D 701471 004520-00 D35 Screw;Round;Hex Socket;M5x0.8Px22L No Model Compatibility List $2.00 / Each

2
704108 020256-AB D56 Screw;Hex Socket;BH;M5x0.8Px10L No Model Compatibility List $1.85 / Each

2
700227 000738-A D57 Foam No Model Compatibility List $0.00 / Each
Out Of Stock 		1
706515 062966-B D71 Pressing plate No Model Compatibility List $0.00 / Each
Out Of Stock 		3
D 701912 004941-00 D72 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

D 707075 1000090035 D73 Bush;RB135 No Model Compatibility List $8.87 / Each

1
D 706516 062969-A D74 SLEEVE;;;Q235;Hard Cr;RB116;Diam.25x6; No Model Compatibility List $6.19 / Each

3
D 701828 004848-00 D82 Set Screw;M6X1.0PX10L No Model Compatibility List $1.79 / Each

2
D 703751 015994-Z DAX Drive Axle Set Yes Model Compatibility List $315.54 / Each

8,10
E 703436 014658-00 ECB ECB Brake Assembly Z3260121 Yes Model Compatibility List $89.00 / Each
10
E 1000478 014658-00 ECB 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each
10
E 1001818 014658-00 ECB Magnetic Brake Yes Model Compatibility List $59.99 / Each
10
700132 000485-00 F05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
701717 004737-00 F09 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
700306 000924-F F12 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
F 701718 004739-00 F13 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
703903 019160-BA F14 COVER SEAT POST RUBBER No Model Compatibility List $1.95 / Each

9,12,13,14
701939 004975-00 F15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701934 004972-00 F16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

706817 065831-Z H01 RAIL SEAT HRT ASSEMBLY No Model Compatibility List $298.64 / Each

7,9,3,12,13,14
H 701841 004859-00 H03 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t Yes Model Compatibility List $1.59 / Each

H 701373 004421-AB H08 Screw;Sink Cross;M5x0.8Px12L;Adhere; No Model Compatibility List $1.59 / Each

2
H 701583 004615-00 H10 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

H 700381 001172-AA H11 Stopper Wheel;Seat Yes Model Compatibility List $5.56 / Each

8,12,13,14
H 704292 022293-B H12 Seat Stop;Rail Assembly No Model Compatibility List $4.06 / Each

9,3,12,13,14
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

704118 020274-Z L05 Screw;Hex Socket;BH;M8x1.25Px19L No Model Compatibility List $1.07 / Each

2
L 702068 005097-00 L06 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
N 701316 004372-00 N07 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
726387 081541 NOT SHOWN Hardware Kit;Blue No Model Compatibility List $4.00 / Each

727876 091775 NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $4.00 / Each

P 700768 002229-00 P01 Speed Sensor Wire;480(OKI+SM-2Y);RB18 Yes Model Compatibility List $8.06 / Each

4,5,6
P 702489 008021-C P02 Fix Plate;Speed Sensor No Model Compatibility List $3.82 / Each

3
700725 002043-A P04 Console Wire Set;1370(JXT/XHP-10+SMR-3V- Yes Model Compatibility List $76.65 / Each

7,4,5,6
Power Jack 728841 097930 P05 Power Jack Yes Model Compatibility List $16.51 / Each

P 704072 020184-00 P08 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

700796 002352-B P11 CABLE CONNECTING HRT No Model Compatibility List $3.82 / Each

7,4,5,6,12,13,14
700797 002356-B P13 WIRE PULSE CON 1200 No Model Compatibility List $9.57 / Each

4,5,6,12,13,14
P 701052 003499-D2 P21 Power Adapter;9V/1.5A Yes Model Compatibility List $76.65 / Each

4,5,6
P 703745 015971-Z PAX Pedal Axle Set Yes Model Compatibility List $164.79 / Each

8,9
707037 068824-Z Q04 Crank Cover No Model Compatibility List $9.57 / Each

8,9
Q 700376 001161-C Q05 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
701586 004617-00 Q07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

Q 701365 004416-00 Q09 Screw;FH;M5x0.8Px20L No Model Compatibility List $0.49 / Each

702217 005330-00 Q11 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

Q 957398 005330-00 Q11 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

702483 007964-00 Q13 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
Q 702840 011855-A Q13 Connecting Plate;Side Cover No Model Compatibility List $1.61 / Each

9,3
701849 004867-A Q15 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
R 701202 004157-00 R06 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

23
R 1000484 004157-00 R06 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
R 701174 004096-00 R07 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

R 701174 004096-00 R07 Bearing, Clutching No Model Compatibility List $20.72 / Each

701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 702226 005351-00 R09 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

R 701403 004457-00 R14 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
R 703985 020061-00 R15 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
703747 015987-ZL T02 CRANK ASSEMBLY LEFT Yes Model Compatibility List $57.49 / Each

8,3
T 703748 015987-ZR T03 CRANK ASSEMBLY RIGHT Yes Model Compatibility List $57.49 / Each
Out Of Stock 		3,8
709103 1000109595 T04 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
T 1037441 1000109595 T04 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
T 701160 004078-A2 T09 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

T 701042 003413-00 T16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
T 703415 014411-AA T18 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
T 702027 005059-00 T23 WASHER;Flat;12.5x19.0x1.0T;Black Zinc No Model Compatibility List $3.64 / Each

U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

U 703809 017657-00 U05 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

U 701132 003979-B U06 Spring;Idler Yes Model Compatibility List $6.60 / Each

2,8
U 702516 008418-00 U07 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
706654 064225-AX V02 Decal;Vision Fitness No Model Compatibility List $47.37 / Each

7,3
