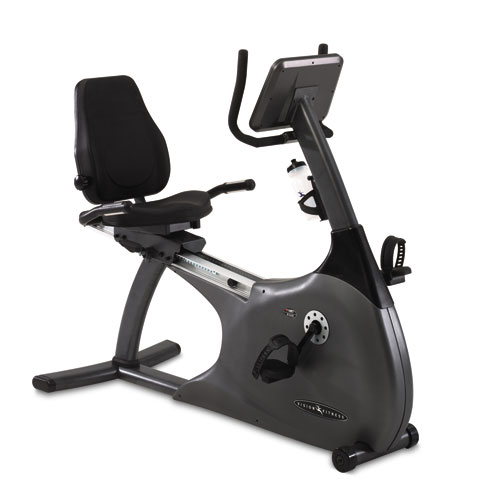

Vision Fitness - R2600HRT - 2002-2003

Repair Parts for Vision Fitness R2600HRT RB59

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2600HRT

Version: 2002-2003

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 J05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C10 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B D65 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F J12 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

H 700379 001170-00 H04 Stopper Wheel;Seat Yes Model Compatibility List $7.54 / Each

8,12,13,14
D 700390 001193-00 D28 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

700400 001245-A D07 Bushing;U-Shaped No Model Compatibility List $1.79 / Each

8
D 700602 001731-CA D26 Seat Pad Set Yes Model Compatibility List $128.47 / Each

12,13,14
700720 002025-D P01 WIRE HARNESS No Model Compatibility List $72.98 / Each

4,5,6
700789 002318-B P04 WIRE HARNESS HR 740mm No Model Compatibility List $3.64 / Each

7,4,5,6,12,13,14
N 701008 003307-00 NOT SHOWN Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

701067 003557-C P03 POWER RESISTOR No Model Compatibility List $128.78 / Each

4,5,6
701144 004033-00 T18 STRAP PEDAL PAIR No Model Compatibility List $40.14 / Each

8,9
T 701160 004078-A2 T12 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

R 701201 004154-00 R20 Drive Belt;Poly-V;370-J6 Yes Model Compatibility List $54.73 / Each

15,10
701221 004189-A R19 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
701297 004362-00 H06 Screw;BH;M4X0.7PX10L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

S 701318 004374-00 S14 Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

701390 004447-AB R15 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

C 701401 004454-00 C13 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

D 701435 004482-00 D44 Screw;Round;Hex Socket;SH;M8X1.25PX20L No Model Compatibility List $1.79 / Each

C 701449 004493-00 C06 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

D 701471 004520-00 D35 Screw;Round;Hex Socket;M5x0.8Px22L No Model Compatibility List $2.00 / Each

2
D 701479 004526-00 D19 Screw;Hex Socket;Round;M6x1.0Px30L No Model Compatibility List $2.00 / Each

2
701585 004616-00 Q08 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701597 004621-00 H11 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
D 701685 004716-00 D29 Screw;BH;M6X1.0PX55L-23L;;HS;;BZN;;P-T No Model Compatibility List $1.79 / Each

J 701718 004739-00 J13 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
D 701828 004848-00 D60 Set Screw;M6X1.0PX10L No Model Compatibility List $1.79 / Each

2
C 701841 004859-00 C05 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
S 701907 004933-00 S06 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

701961 005004-00 D30 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

701964 005005-00 C18 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701987 005025-00 T13 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

S 702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

H 702054 005082-00 H05 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
L 702068 005097-00 L07 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702183 005227-00 T14 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

702217 005330-00 Q10 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702241 005366-00 T15 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

U 702279 005446-00 U07 Spring;Extended;2.0X16.0X100.0L;SWPB;ZNC; No Model Compatibility List $3.35 / Each

2,9
D 702287 005482-C D15 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
702313 005968-B V08 MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
702358 006421-E V11 Decal;Crank Cover;T=0.3mm;RB41 No Model Compatibility List $3.64 / Each

7,8,9,3
702419 006719-00 NOT SHOWN Warranty Card No Model Compatibility List $1.66 / Each

1
S 702470 007768-D S04 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

N 702471 007806-D N22 Contact Plate;Pulse Sensor No Model Compatibility List $3.82 / Each

3,4,5,6,12,13,14
D 702480 007904-D D14 Plate Position No Model Compatibility List $99.35 / Each

3
702483 007964-00 Q05 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702586 008769-A H03 Axle;Stopper;;SS41;12.0x89L;Zn Plate;;; No Model Compatibility List $3.64 / Each

8,3
D 702588 008829-C D16 Knob;Seat Lever Yes Model Compatibility List $9.57 / Each

3,12,13,14
D 702764 009581-J D06 FIXING BLOCK SEAT Yes Model Compatibility List $23.89 / Each

12,13,14
702804 010847-D Q03 COVER CONSOLE MAST No Model Compatibility List $1.66 / Each

7,9
702814 011014-C P06 WIRES HRT No Model Compatibility List $14.56 / Each

7,4,5,6,12,13,14
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
S 703368 013783-AB S08 Lower Control Board;700 Series Yes Model Compatibility List $389.77 / Each

703414 014402-AA D27 Back Pad;RB77 No Model Compatibility List $575.56 / Each

4,5,6,12,13,14
703752 015997-Z N21 Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
D 703807 017550-C D04 Seat Lever Yes Model Compatibility List $15.60 / Each
Out Of Stock 		3,12,13,14
D 703980 020050-Z D24 Screw;BH;Sunk;M6X1X20;Zinc No Model Compatibility List $1.66 / Each

2
R 703986 020066-00 R17 Screw;Hex Socket;Round;M6x1.0Px12L No Model Compatibility List $1.66 / Each

2
704380 023553-Z R04 Housing Bearing Assembly D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $31.15 / Each

8,3
T 704625 024569-A T17 Pedal Set Assembly;9/16 Yes Model Compatibility List $72.98 / Each

31
T 704898 025790-ZL T03 Crank Arm;Left D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each
Out Of Stock 		3,8
T 704899 025790-ZR T04 Crank Arm;Right D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each

3,8
704900 025868-Z D57 BACK SEAT CLIP No Model Compatibility List $15.00 / Each

2,4,5,6,12,13,14
704915 026093-Z R03 PULLEY ASSEMBLY No Model Compatibility List $54.00 / Each

8,3
704916 026095-Z AJ1 STABILIZER ASSEMBLY REAR No Model Compatibility List $92.22 / Each

3
704921 026238-Z AD1 Seat Sliding Frame Set D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $651.87 / Each

3,12,13,14
707037 068824-Z Q04 Crank Cover No Model Compatibility List $9.57 / Each

8,9
709103 1000109595 T08 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
712753 1000230522 D58 Cover Seat Back;ABS;BL;R70-02; No Model Compatibility List $47.89 / Each

9,4,5,6,12,13,14
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

Controller Refurbished 1015117-R 001925-D # 1 Controller Refurbished Yes Model Compatibility List $167.70 / Each

7
A 1000478 014658-00 AS1 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each

10
R 1000481 004197-00 R21 1 Secondary Drive Belt Yes Model Compatibility List $62.99 / Each

15
R 1000484 004157-00 R20 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

T 1037441 1000109595 T08 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
Q 957398 005330-00 Q10 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 986316 004616-00 Q08 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
S 986204 004374-00 S14 Button Head Phillip Screw (New) No Model Compatibility List $12.99 / Each
Out Of Stock
N 971749 003307-00 NOT SHOWN Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

H 957090 004621-00 H11 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
