Vision Fitness - R2750HRT - 2007

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 J05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
700228 000738-B D61 GRIP SEAT LEVER FOAM No Model Compatibility List $3.64 / Each

3,12,13,14,11
700260 000803-AA D64 Water Bottle Holder No Model Compatibility List $22.07 / Each

1
700262 000808-B D65 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F J12 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
P 700357 001126-C P13 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

H 700379 001170-00 H04 Stopper Wheel;Seat Yes Model Compatibility List $7.54 / Each

8,12,13,14
D 700390 001193-00 D28 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

700400 001245-A D07 Bushing;U-Shaped No Model Compatibility List $1.79 / Each

8
700543 001575-BA Q03 Boot;Console Mast No Model Compatibility List $17.89 / Each

7
D 700602 001731-CA D26 Seat Pad Set Yes Model Compatibility List $128.47 / Each

12,13,14

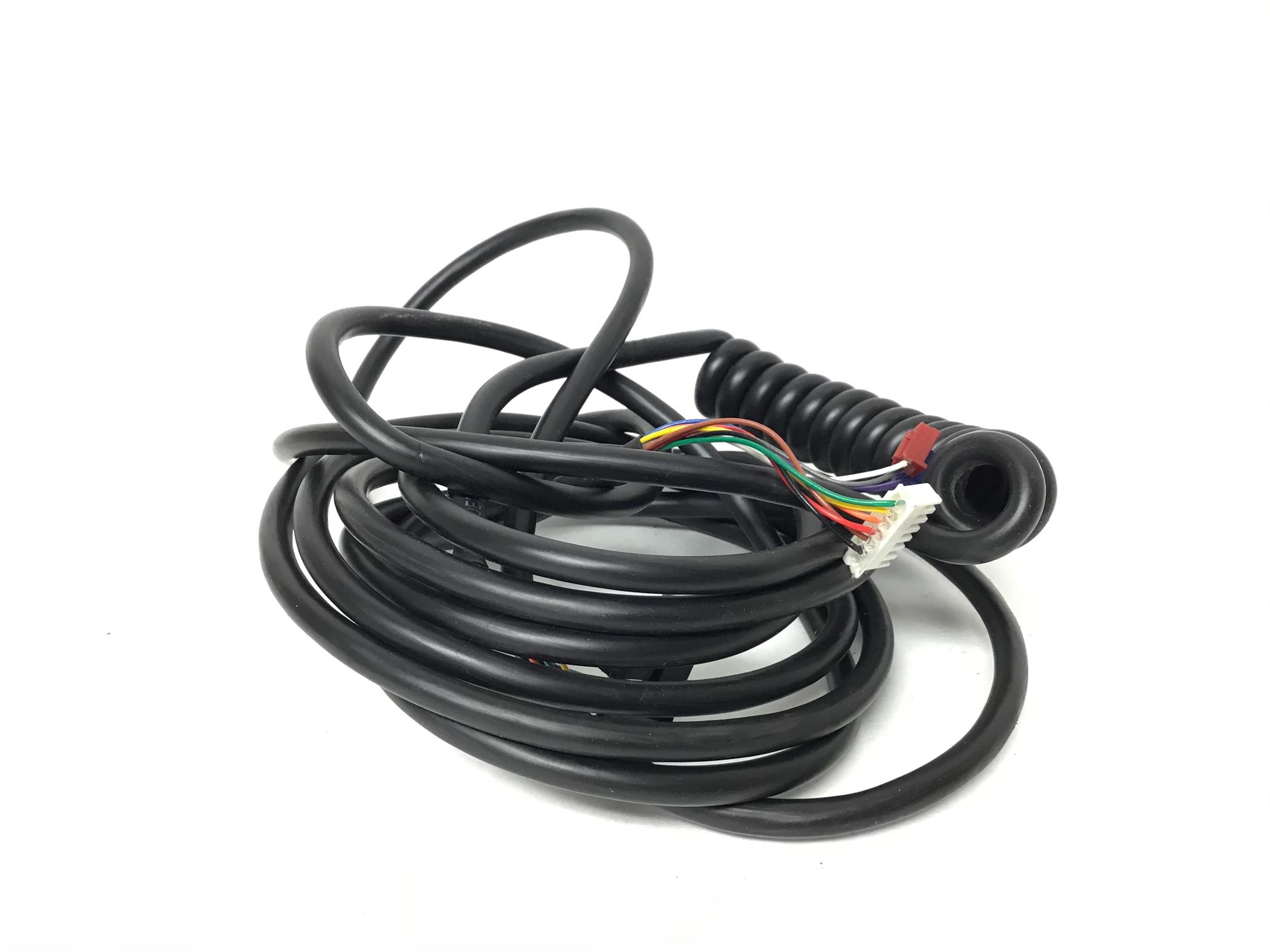

P 700800 002359-C P04 Seat Rail Connection Wire;3300L Yes Model Compatibility List $39.65 / Each

4,5,6,9,12,13,14
700818 002412-C P07 Pulse Grip Wire;Right; 700L No Model Compatibility List $17.97 / Each

4,5,6,12,13,14,11
700819 002413-B P09 Pulse Grip Wire;Left; 700L No Model Compatibility List $14.01 / Each

4,5,6,12,13,14,11

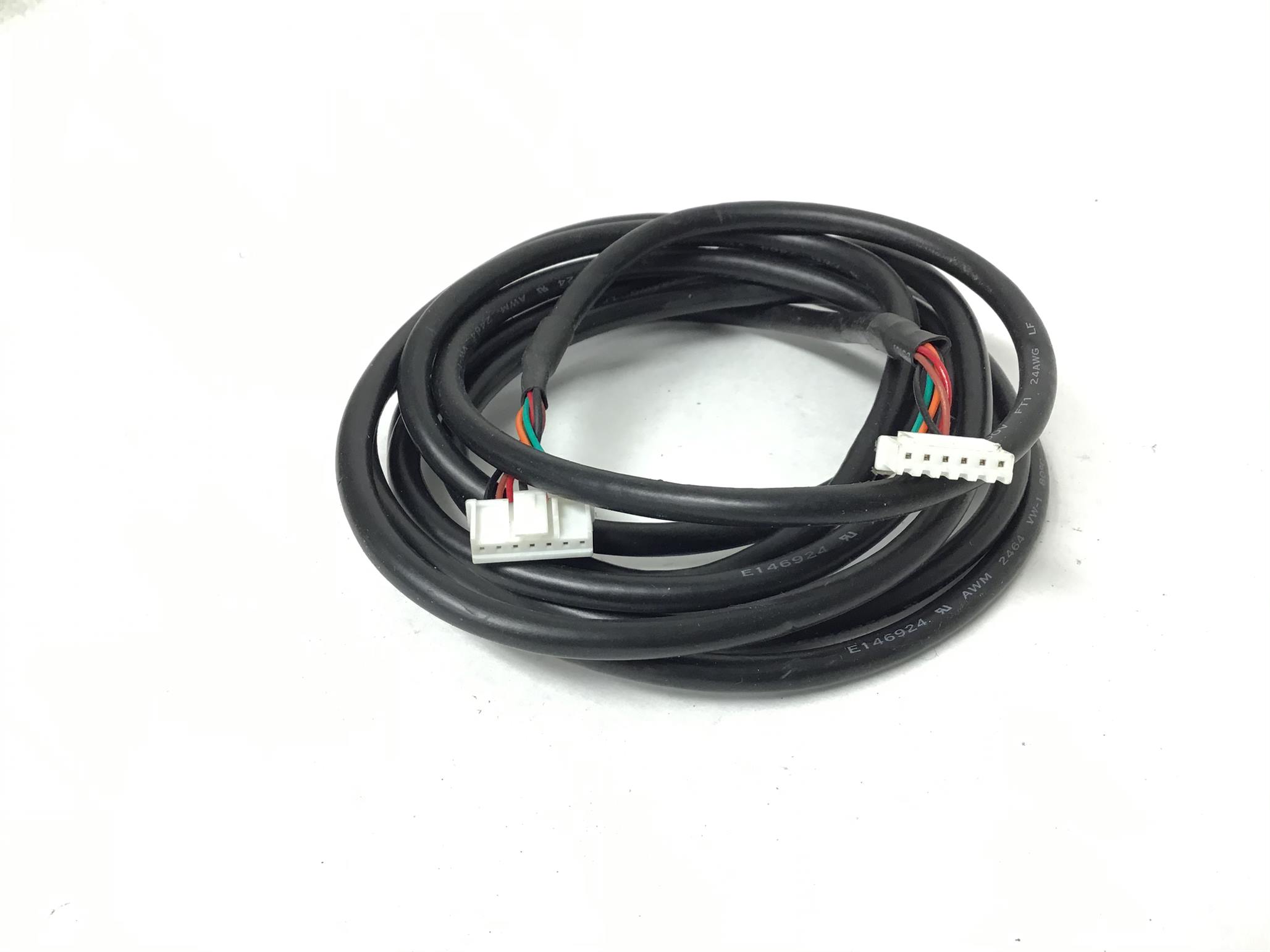

P 700888 002664-B P02 Lower Console Wire Harness; 1000L Yes Model Compatibility List $9.10 / Each

N 701008 003307-00 NOT SHOWN Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

P 701066 003556-D P03 Power Resistor;300W Yes Model Compatibility List $128.78 / Each

4,5,6
R 701159 004077-A2 R09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

T 701160 004078-A2 T07 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

U 701165 004081-A2 U07 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 701171 004091-00 R26 Bearing;One-Way;;HFL2530;INA No Model Compatibility List $30.89 / Each

8
R 701194 004145-00 R04 Drive Belt;Poly-V;360-J6 Yes Model Compatibility List $57.49 / Each

10,15
R 701205 004161-00 R20 Drive Belt;Poly-V;380-J8 Yes Model Compatibility List $54.73 / Each

15,10
701278 004345-AB D67 SCREW;RND;M5X0.8PX35L;;PH;;BZN;;BP No Model Compatibility List $0.55 / Each

2
H 701295 004361-00 H07 Screw;Phillip;BH;M4x0.7Px10L;Ni;Gap; No Model Compatibility List $9.10 / Each

701306 004366-Z H25 Screw;BH;M5X8 No Model Compatibility List $1.79 / Each

2
701308 004369-00 Q22 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701315 004371-Z P55 Bolt;BH;M5X25 No Model Compatibility List $1.66 / Each

2
P 701342 004388-00 P51 Screw;Oval;PH; M5X0.8PX12L(ZINC PLATING) No Model Compatibility List $1.79 / Each

H 701367 004417-00 H26 Screw;Phillip;Sink;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
701369 004419-AB D24 Screw;FH;M5X0.8PX16L;;PH;;ZN;;BP No Model Compatibility List $1.79 / Each

2
D 701402 004456-00 D35 Screw;Round;Hex Socket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

C 701449 004493-00 C06 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

D 701479 004526-00 D19 Screw;Hex Socket;Round;M6x1.0Px30L No Model Compatibility List $2.00 / Each

2
701527 004558-AA P52 Screw;SH;M5X0.8PX50L;;HS;;BZN;; No Model Compatibility List $1.66 / Each

J 701583 004615-00 J17 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701585 004616-00 Q26 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

P 701626 004647-00 P16 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

D 701685 004716-00 D29 Screw;BH;M6X1.0PX55L-23L;;HS;;BZN;;P-T No Model Compatibility List $1.79 / Each

R 701688 004718-AC R30 Screw;BH;M8X1.25PX10L;;HS;;BZN;;BP No Model Compatibility List $2.00 / Each

701699 004724-00 C05 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701717 004737-00 H23 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
D 701828 004848-00 D63 Set Screw;M6X1.0PX10L No Model Compatibility List $1.79 / Each

2
701840 004858-C D34 Set Screw;M12X10L;BZN;ADJ SPRING No Model Compatibility List $3.64 / Each

2
L 701841 004859-00 L06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P15 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
P 701891 004924-00 P53 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

S 701907 004933-00 S06 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

701909 004935-00 D20 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
701934 004972-00 J16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 J15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

B 701945 004980-A B51 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) Yes Model Compatibility List $1.79 / Each

701961 005004-00 D30 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

701964 005005-00 J11 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701987 005025-00 T31 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

R 701999 005037-00 R31 Washer;Flat;8.2x30.0x1.5T No Model Compatibility List $1.79 / Each

2
S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

S 702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

D 702052 005080-00 D25 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
P 702054 005082-00 P54 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
L 702068 005097-00 L07 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702132 005158-A H24 Washer;Flat;8x16x1.5T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702188 005231-A L05 Washer;Wavy;16.2x28.7x1.5Tx1.5H No Model Compatibility List $1.79 / Each

2,4,5,6
U 702240 005365-00 U23 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 T06 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

D 702287 005482-C D15 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

D 702480 007904-D D14 Plate Position No Model Compatibility List $99.35 / Each

3
702484 007970-B Q25 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702586 008769-A H03 Axle;Stopper;;SS41;12.0x89L;Zn Plate;;; No Model Compatibility List $3.64 / Each

8,3

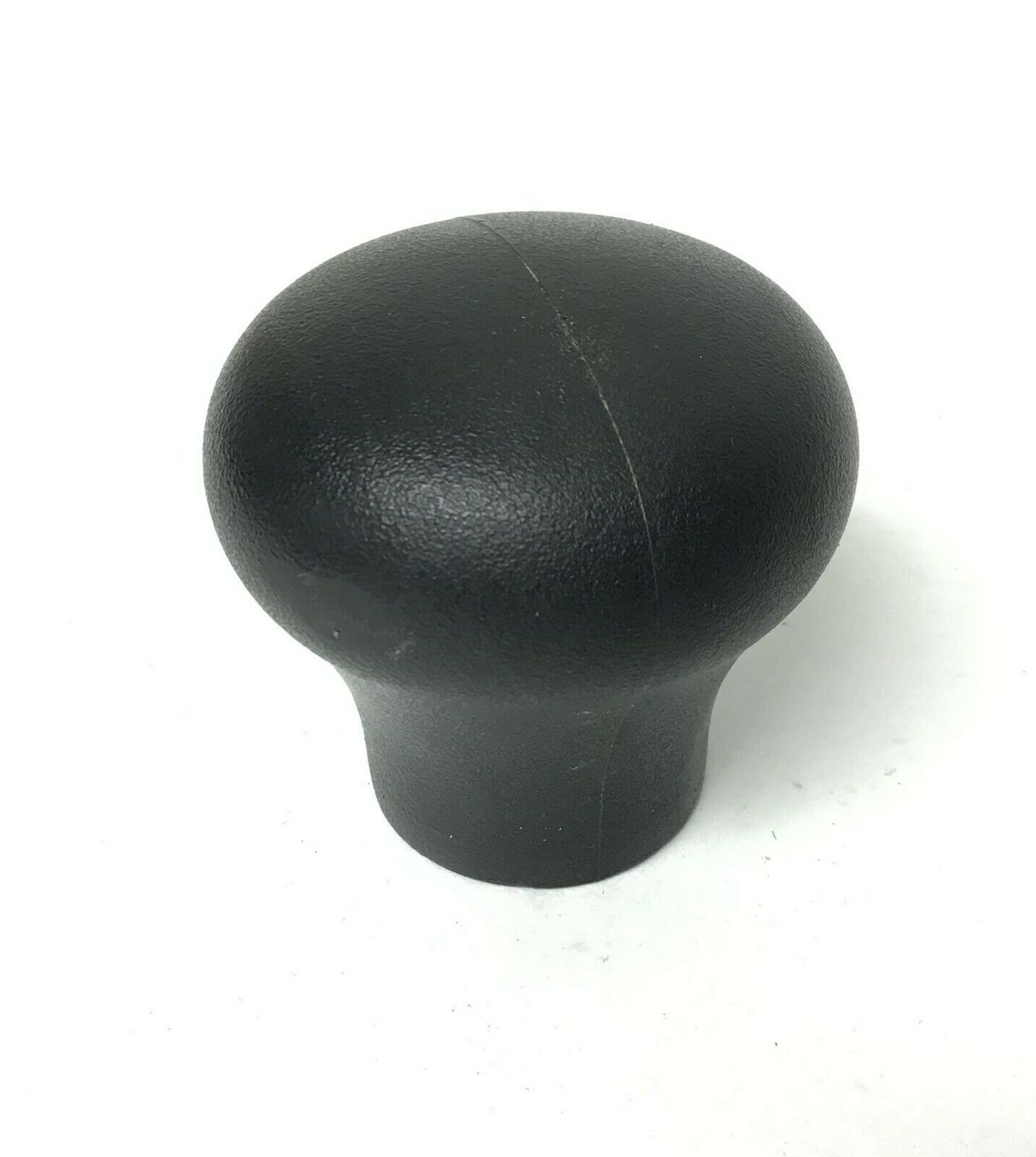

D 702588 008829-C D16 Knob;Seat Lever Yes Model Compatibility List $9.57 / Each

3,12,13,14
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
S 703368 013783-AB S08 Lower Control Board;700 Series Yes Model Compatibility List $389.77 / Each

703411 014382-C NOT SHOWN HARDWARE KIT PINK No Model Compatibility List $1.66 / Each

12,13,14
703413 014396-A NOT SHOWN HARDWARE KIT BLACK No Model Compatibility List $8.42 / Each

4,5,6
703414 014402-AA D27 Back Pad;RB77 No Model Compatibility List $575.56 / Each

4,5,6,12,13,14
T 703415 014411-AA T13 Pedal Strap Set - Left Right Yes Model Compatibility List $40.14 / Each

8,9
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

1
703560 015392-AB Q08 Rear Side Cover End Cap;Left No Model Compatibility List $61.85 / Each

9
703561 015393-AB Q09 Rear Side Cover End Cap;Right No Model Compatibility List $61.85 / Each

9
703730 015913-AA AC2 HANDLEBAR CONSOLE MAST No Model Compatibility List $215.20 / Each

7,11
703764 016073-ZL HPS - L GRIP HRT ASSEMBLY LEFT No Model Compatibility List $36.48 / Each

7,3,12,13,14,11
703765 016073-ZR HPS - R GRIP HRT ASSEMBLY RIGHT No Model Compatibility List $36.48 / Each

7,3,12,13,14,11
703766 016074-Z AD1 FRAME SEAT ASSEMBLY No Model Compatibility List $556.66 / Each

3,12,13,14
704109 020256-AC S12 Screw;Hex Socket;BH;M5x0.8Px10L;Zinc; No Model Compatibility List $1.79 / Each

T 704898 025790-ZL T03 Crank Arm;Left D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each
Out Of Stock
3,8
T 704899 025790-ZR T04 Crank Arm;Right D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each

3,8
704900 025868-Z D57 BACK SEAT CLIP No Model Compatibility List $15.00 / Each

2,4,5,6,12,13,14
704916 026095-Z AJ1 STABILIZER ASSEMBLY REAR No Model Compatibility List $92.22 / Each

3
704922 026241-Z DAX DRIVE AXLE ASSEMBLY D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $305.11 / Each

8,3,10
704923 026242-Z AD2 HANDLEBAR SEAT No Model Compatibility List $342.55 / Each

12,13,14,11

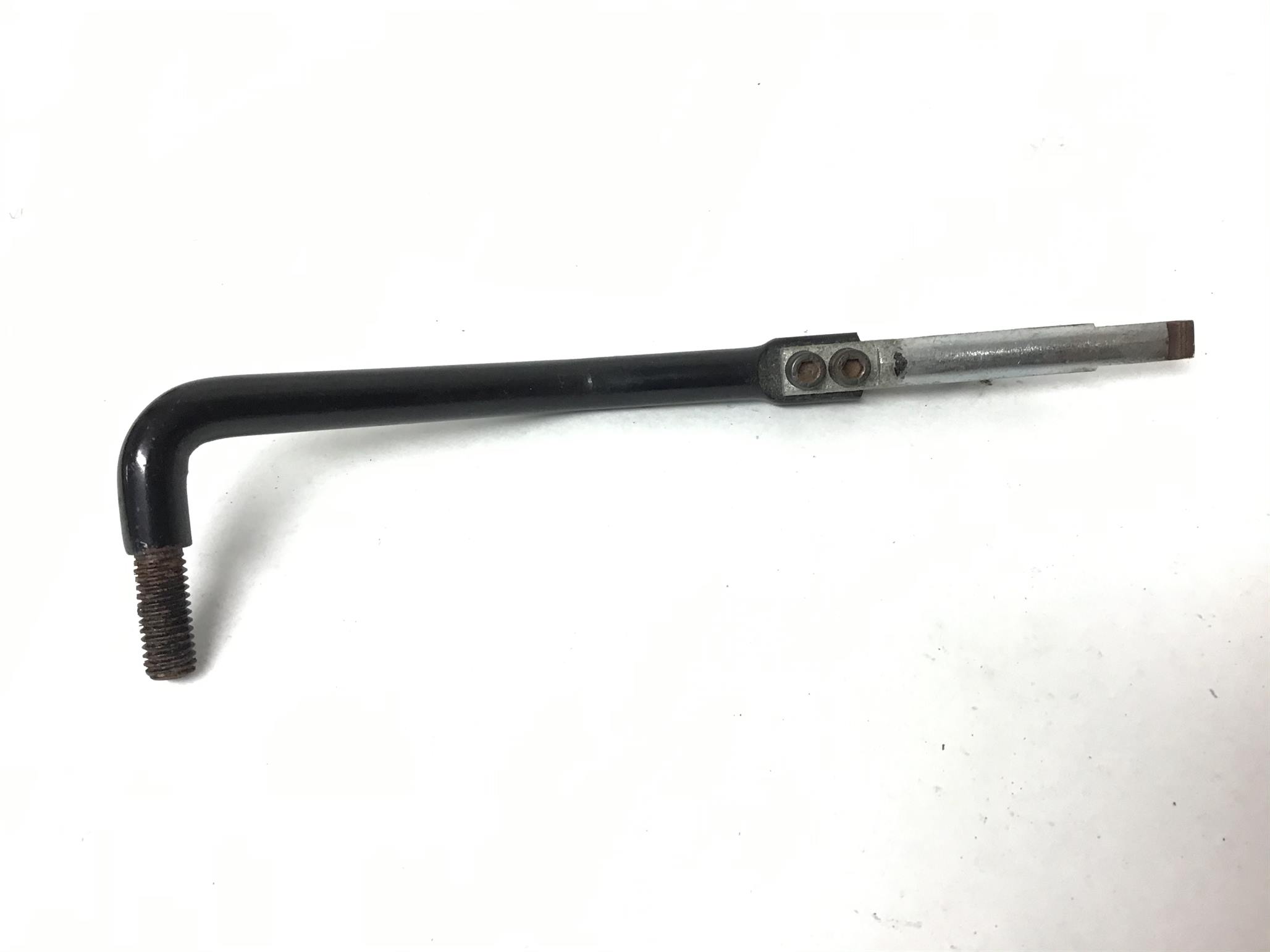

D 704926 026249-Z D04 LEVER SEAT ASSEMBLY Yes Model Compatibility List $42.82 / Each

3,12,13,14
704927 026251-Z AU1 IDLER ASSEMBLY No Model Compatibility List $136.55 / Each

8,3
706656 064235-A V12 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
P 706799 065640-A P14 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

J 706806 065753-A J13 Screw;Hex Socket;BH;M10x1.5Px65L(Tooth25 No Model Compatibility List $4.00 / Each

2
707037 068824-Z Q04 Crank Cover No Model Compatibility List $9.57 / Each

8,9
709103 1000109595 T05 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6
712753 1000230522 D58 Cover Seat Back;ABS;BL;R70-02; No Model Compatibility List $47.89 / Each

9,4,5,6,12,13,14
715532 1000325796 T08 Nut;Hex Flange;M10x1.25Px7T;SS41;Black A No Model Compatibility List $1.79 / Each

2,4,5,6
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
725339 070151 NOT SHOWN OWNERS MANUAL R2700HRT/R2750HRT/E3700HRT No Model Compatibility List $13.26 / Each

725342 070177 NOT SHOWN MANUAL ASSEMBLY R2750HRT No Model Compatibility List $3.35 / Each

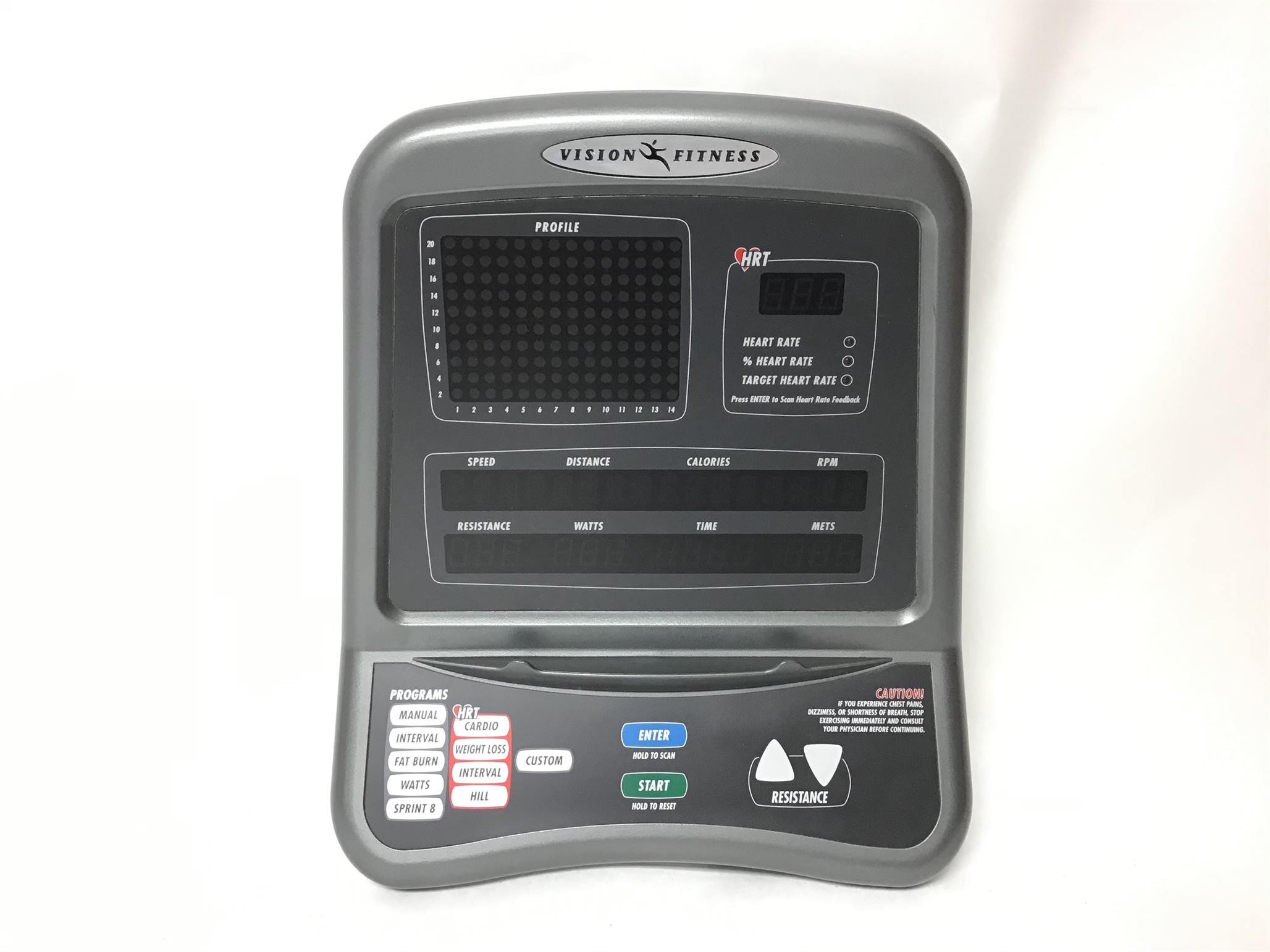

CONSOLE ASSEMBLY 725349 070314 AN1 CONSOLE ASSEMBLY Yes Model Compatibility List $518.70 / Each

Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

726416 081713 G21 Washer;Flat;10.3X20X1.0T No Model Compatibility List $1.79 / Each

727462 089466 T03 Crank;Left;SS41;BED;S14.8;CB59B-T03; No Model Compatibility List $51.48 / Each

727463 089467 T04 Crank;Right;SS41;BED;S14.8;CB59B-T04; No Model Compatibility List $51.48 / Each

727824 091195 RAL Seat Guide Rail Set;Aluminum No Model Compatibility List $546.16 / Each

727828 091207 PAX Pedal Axle (Drive) Set;US;R70; No Model Compatibility List $220.97 / Each

729107 Part of HPS-L AP5 GRIP FAST KEY ASSEMBLY LEFT No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,11
729108 Part of HPS-R AP6 GRIP FAST KEY ASSEMBLY RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,11
M6-1.0 X 56MM Screw 1018911 004716-Z 0 1 M6-1.0 X 56MM Screw No Model Compatibility List $6.49 / Each

2
Pedal Axle Set 1020551 026244-z 0 1 Pedal Axle Set No Model Compatibility List $297.70 / Each

8
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

Q 1036645 007970-B Q25 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

9,3
T 1037441 1000109595 T05 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
Q 986316 004616-00 Q26 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
N 971749 003307-00 NOT SHOWN Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

View Drawing
