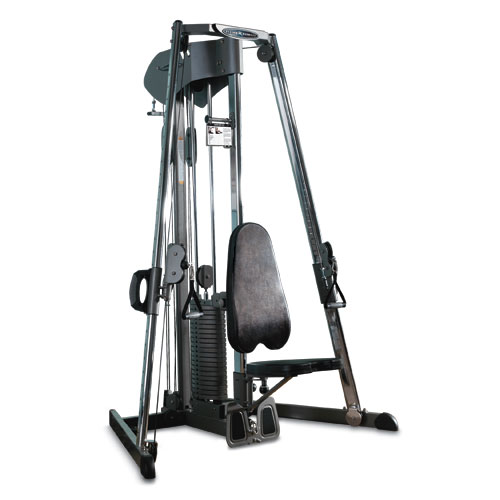

Vision Fitness - ST200 - N/A

Repair Parts for Vision Fitness ST200 GM89,GM77

Brand: Vision Fitness

Category: Multi Station

Type: Strength Systems

Model Name: ST200

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
J 700467 001440-AA J27 Seat Adjustment Knob Yes Model Compatibility List $13.65 / Each

12,13,14
K 700494 001510-B K07 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
700603 001733-BA J17 PAD SEAT BACK Yes Model Compatibility List $156.16 / Each

4,5,6,12,13,14
Q 700683 001785-AA Q12 Stopper Piece;Fix Tube;Rubber;BL;GM20 RUBBER(BLACK) No Model Compatibility List $3.35 / Each

3,4,5,6
Q 701318 004374-00 Q10 Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

Z 701682 004714-AC Z13 Screw;Hex Socket;BH;M6x1.0Px15L;Cr No Model Compatibility List $1.66 / Each

2
Z 701758 004780-00 Z05 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

701804 004818-A F16 SCREW;BH;M10X1.5PX90L-20L;;HS;;CHM;;P-T No Model Compatibility List $1.12 / Each

2
701809 004825-A F09 BOLT BH M10X45 PARTIAL CHM No Model Compatibility List $1.85 / Each

2
701882 004909-AB K11 Nut;Rod End Bearing;M12x1.75P No Model Compatibility List $0.36 / Each

2,8,9,3
Z 701896 004925-ZAB Z18 Nut;Nlk;M6X1.0P;;CHM;; No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F14 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

701961 005004-00 Z12 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

F 701981 005017-00 F13 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

702101 005131-Z F12 Washer;Flat;10.5x18x2T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
702160 005196-00 J24 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

K 702308 005847-A K05 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
702313 005968-B V02 MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
702723 009373-E Q03 Delrin Insert No Model Compatibility List $3.64 / Each

1
702775 009646-B NOT SHOWN Weight;Add-On5LBS No Model Compatibility List $47.97 / Each

3
703369 013796-A NOT SHOWN Mulit Function Bar;Steel No Model Compatibility List $167.21 / Each

1
703370 013797-A NOT SHOWN Sports Handle No Model Compatibility List $51.90 / Each

11
703734 015939-AA AC1 FRAME RIGHT SIDE UPRIGHT No Model Compatibility List $948.90 / Each

3
703735 015940-AA AC2 FRAME LEFT SIDE UPRIGHT No Model Compatibility List $744.17 / Each

3
703736 015941-AA AC3 FRAME FRONT CENTER VERTICAL No Model Compatibility List $962.99 / Each

3
Q 703901 019151-AA Q05 Rubber Bumper;Weight Stack Yes Model Compatibility List $8.00 / Each

703955 019986-A NOT SHOWN FOOT CUFF No Model Compatibility List $18.23 / Each

9,3
704123 020289-00 Z04 Screw;Hex Socket;BH;M10x1.5Px60;Chromed No Model Compatibility List $3.64 / Each

7,2,12,13,14
704141 020323-00 K03 Set Screw;M6x1.0Px25L No Model Compatibility List $0.34 / Each

2
704181 020439-00 Z11 Washer;Flat;6.4X14.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704206 020479-A Z02 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

704224 020647-A NOT SHOWN Snap Ring;Karabiner No Model Compatibility List $3.35 / Each

2
704237 021448-B E08 Grip Tape;Left No Model Compatibility List $9.10 / Each

11
704238 021449-B E09 Grip Tape;Right No Model Compatibility List $9.10 / Each

11
Q 704284 022231-A Q06 Pad Frame Stabilizer No Model Compatibility List $1.79 / Each

3,12,13,14
Q 704321 022402-B Q07 End Cap;Rear Determination No Model Compatibility List $1.66 / Each

9
704323 022408-B Not Shown Pin; Weight Plate;GM77 Yes Model Compatibility List $18.23 / Each

3,12,13,14
704332 022510-F K04 Weight Plate;GM77-K04 Yes Model Compatibility List $71.94 / Each

3
704333 022512-E K01 Top Weight Plate No Model Compatibility List $80.26 / Each

3
704597 024159-ZUP AB1 STRUCTURE TOP PULLEY No Model Compatibility List $503.70 / Each

8
704598 024160-Z AG4 FRAME CENTRAL FLOOR SUPPORT No Model Compatibility List $296.19 / Each

3
704697 025366-AA AB2 SUPPORT TOP FRONT No Model Compatibility List $206.54 / Each

3
704800 025490-A AQ1 COVER PLATE LEFT No Model Compatibility List $82.24 / Each

9,3
704867 025612-AA AG1 FRAME REAR VERTICAL UPRIGHT No Model Compatibility List $340.39 / Each

3
704968 026875-C NOT SHOWN CO-MOLDED EXERCISE HANDLE Yes Model Compatibility List $18.23 / Each

11
705151 038273-Z NOT SHOWN DECAL KIT WEIGHT PLATE No Model Compatibility List $18.23 / Each

7,3
706165 059717-A K02 ADJ Rod;Weight Plate;25x590L;Cr Plate;M No Model Compatibility List $87.62 / Each

3
707207 1000091189 AF1 MOVABLE BLOCK FRAME Yes Model Compatibility List $368.99 / Each

3
707208 1000091193 Q09 BRACKET HALF PULLEY Yes Model Compatibility List $54.76 / Each

2,8,3,4,5,6
707312 1000091939 NOT SHOWN Bolt;Cable;4.8mm Slotted;M12x60 No Model Compatibility List $13.03 / Each

2,4,5,6
707603 1000093602 AG3 FRAME RIGHT FLOOR SUPPORT No Model Compatibility List $234.94 / Each

3
707887 1000096633 F07 CABLE #1 4850MM No Model Compatibility List $164.24 / Each

4,5,6
707987 1000097435 F06 Steel Rope;A;Steel Rope Head;Exrta-Work; Yes Model Compatibility List $72.98 / Each

1
707988 1000097436 F08 Steel Rope;C;Steel Rope Head;Exrta-Work; Yes Model Compatibility List $182.49 / Each

1
708118 1000099800 AJ3 BACK PAD ADJUSTMENT BRACKET Yes Model Compatibility List $196.51 / Each

2,3,4,5,6,12,13,14
708761 1000105460 Q01 PLATE COVER FRONT Yes Model Compatibility List $22.62 / Each

9,3
708839 1000106198 C08 SPACER PULLEY(service) No Model Compatibility List $42.38 / Each

2,8,3,4,5,6
708841 1000106205 B01 Cable Bracket Yes Model Compatibility List $63.96 / Each

2,3,4,5,6
708843 1000106208 AK1 BRACKET PULLEY WEIGHT STACK(service) No Model Compatibility List $50.78 / Each

2,8,3,4,5,6
726235 080874 F05 PULLEY 90MM VGROOVE SKF No Model Compatibility List $18.23 / Each

727163 087512 Q06 Pulley;115mm No Model Compatibility List $18.23 / Each

727164 087513 F17 Pulley;90mm Yes Model Compatibility List $18.23 / Each

728977 N/A NOT SHOWN Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,,1,,1
729393 ZMS1000459 F01 BRACKET FLOATING PULLEY Yes Model Compatibility List $17.73 / Each

2,8,3,4,5,6
Q 986204 004374-00 Q10 Button Head Phillip Screw (New) No Model Compatibility List $12.99 / Each
Out Of Stock
FRONT END CAP FRAME (Used) 1039045 000535-DA FRONT END CAP FRAME (Used) Yes Model Compatibility List $10.00 / Each
Out Of Stock 		1
Seat Pad (Used) 1039059 001732-BA Seat Pad (Used) Yes Model Compatibility List $69.00 / Each
Out Of Stock 		34
END CAP FRAME BRACKET PULLEY (USED) 1039056 009374-B END CAP FRAME BRACKET PULLEY (USED) Yes Model Compatibility List $5.00 / Each
Out Of Stock 		1
FRAME SEAT SUPPORT (USED) 1039143 015799-AA FRAME SEAT SUPPORT (USED) Yes Model Compatibility List $40.00 / Each
Out Of Stock 		22,34
BOLT BH M10X205 PARTIAL CHM (USED) 1039027 020311-ZA BOLT BH M10X205 PARTIAL CHM (USED) Yes Model Compatibility List $8.00 / Each
Out Of Stock 		1
BOLT BH M10X215 PARTIAL CHM 1039158 020313-ZA BOLT BH M10X215 PARTIAL CHM Yes Model Compatibility List $8.99 / Each
Out Of Stock 		1
Low Row Foot Plate Weldmen (used) 1039050 024161-Z & 021448-B & 021449-B Low Row Foot Plate Weldmen (used) Yes Model Compatibility List $49.00 / Each
Out Of Stock 		1
BRACKET TRAINING CARD WITH END CAP 1039142 024242-A & 018991-AA BRACKET TRAINING CARD WITH END CAP Yes Model Compatibility List $12.00 / Each
Out Of Stock 		1
BRACKET PULLEY WEIGHT STACK (USED) 1039141 025533-AA BRACKET PULLEY WEIGHT STACK (USED) Yes Model Compatibility List $29.00 / Each
Out Of Stock 		37
Weight Plate Stem w Head Weight (Used) 1039062 059717-A & 022512-E Weight Plate Stem w Head Weight (Used) Yes Model Compatibility List $75.00 / Each
Out Of Stock 		1
3.5 Inch Pulley Cable (New) vis3.5pull 087513 3.5 Inch Pulley Cable (New) Yes Model Compatibility List $24.99 / Each
37
Belt Set, Painting (Used) 1039053 1000091188 Belt Set, Painting (Used) Yes Model Compatibility List $39.00 / Each
Out Of Stock 		23,34
Slotted screw with nut 1039140 1000091939 & 004909-AB Slotted screw with nut Yes Model Compatibility List $15.00 / Each
Out Of Stock 		1
SEAT ADJUSTMENT BRACKET (USED) 1039042 1000099797 SEAT ADJUSTMENT BRACKET (USED) Yes Model Compatibility List $79.00 / Each
Out Of Stock 		1
Only HANDLE ADJUSTMENT (USED) 1039058 063918-ZR Only HANDLE ADJUSTMENT (USED) Yes Model Compatibility List $50.00 / Each
Out Of Stock 		1
View Drawing
