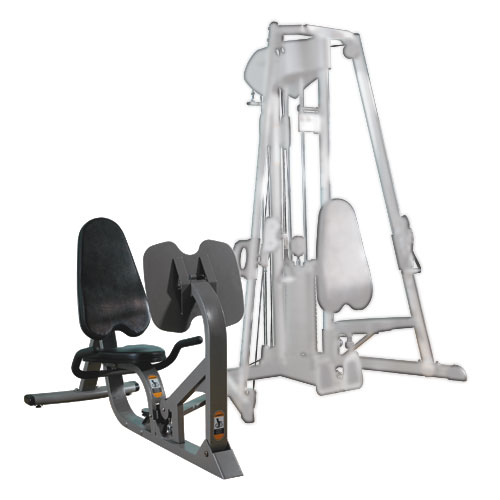

Vision Fitness - ST250 - 2006

Repair Parts for Vision Fitness ST250 GM78

Brand: Vision Fitness

Category: Single Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

GM78

Model Name: ST250

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

17553.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700132	000485-00	N46	Leveler;Rubber;W3/8-16UNC	Yes	Model Compatibility List	$9.09 / Each	3
700306	000924-F	Q05	End Cap;Rear Stabilizer	No	Model Compatibility List	$9.57 / Each	9
700467	001440-AA	J27	Seat Adjustment Knob	Yes	Model Compatibility List	$13.65 / Each	12,13,14
700603	001733-BA	J17	PAD SEAT BACK	Yes	Model Compatibility List	$156.16 / Each	4,5,6,12,13,14
701757	004779-00	Z02	Screw;Oval;Hex Socket;M10x1.5Px30L;Chromed	No	Model Compatibility List	$1.66 / Each
701799	004814-AB	Z03	Screw;Umbrella Hex Socket;M10x1.5Px100L	No	Model Compatibility List	$18.23 / Each	2
701809	004825-A	F09	BOLT BH M10X45 PARTIAL CHM	No	Model Compatibility List	$1.85 / Each	2
701914	004943-00	F14	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701981	005017-00	F13	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702101	005131-Z	F12	Washer;Flat;10.5x18x2T;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
702723	009373-E	Q03	Delrin Insert	No	Model Compatibility List	$3.64 / Each	1
704123	020289-00	Z04	Screw;Hex Socket;BH;M10x1.5Px60;Chromed	No	Model Compatibility List	$3.64 / Each	7,2,12,13,14
704125	020291-00	Z08	Screw;Hex Socket;BH;M6x1.0Px15L;Chromed	No	Model Compatibility List	$1.85 / Each	7,2,12,13,14
704128	020294-ABX	Z11	Screw;BH;M10x1.5Px20L;Chromed	No	Model Compatibility List	$0.99 / Each
704284	022231-A	Q06	Pad Frame Stabilizer	No	Model Compatibility List	$1.79 / Each	3,12,13,14
704332	022510-F	NOT SHOWN	Weight Plate;GM77-K04	Yes	Model Compatibility List	$71.94 / Each	3
704599	024164-Z	A13	FRAME MAIN FLOOR SUPPORT	No	Model Compatibility List	$746.88 / Each	3
704600	024166-Z	A10	FRAME BRACKET PULLEY	No	Model Compatibility List	$442.60 / Each	2,8,3,4,5,6
704601	024167-Z	AN5	PLATE FOOT	No	Model Compatibility List	$1248.88 / Each	9,3
704602	024168-Z	AN4	EXERCISE LEVER ARM	No	Model Compatibility List	$558.97 / Each	3
704603	024169-Z	RST	SUPPORT FOOT REAR	No	Model Compatibility List	$256.39 / Each	9,3
705700	055204-A	N40	Screw;SelfTapping;4x10L	No	Model Compatibility List	$2.00 / Each
707208	1000091193	Q09	BRACKET HALF PULLEY	Yes	Model Compatibility List	$54.76 / Each	2,8,3,4,5,6
707312	1000091939	NOT SHOWN	Bolt;Cable;4.8mm Slotted;M12x60	No	Model Compatibility List	$13.03 / Each	2,4,5,6
707572	1000093453	A11	FRAME REAR SUPPORT	No	Model Compatibility List	$282.10 / Each	3
707992	1000097472	N38	CABLE#6 STEEL 2695MM	No	Model Compatibility List	$132.94 / Each	4,5,6
708065	1000098834	N37	Steel Rope;D;Steel Rope Head;Exrta-Work;	No	Model Compatibility List	$69.34 / Each	1
708102	1000099712	A14	BRACKET PULLEY STATIONARY	No	Model Compatibility List	$125.42 / Each	2,8,3,4,5,6
708836	1000106191	AN6	SUPPORT SEAT BACK	No	Model Compatibility List	$107.85 / Each	3,4,5,6,12,13,14
727164	087513	F17	Pulley;90mm	Yes	Model Compatibility List	$18.23 / Each
1039059	001732-BA		Seat Pad (Used)	Yes	Model Compatibility List	$69.00 / Each	34
1039056	009374-B		END CAP FRAME BRACKET PULLEY (USED)	Yes	Model Compatibility List	$5.00 / Each	1
vis3.5pull	087513		3.5 Inch Pulley Cable (New)	Yes	Model Compatibility List	$24.99 / Each Out Of Stock	37
