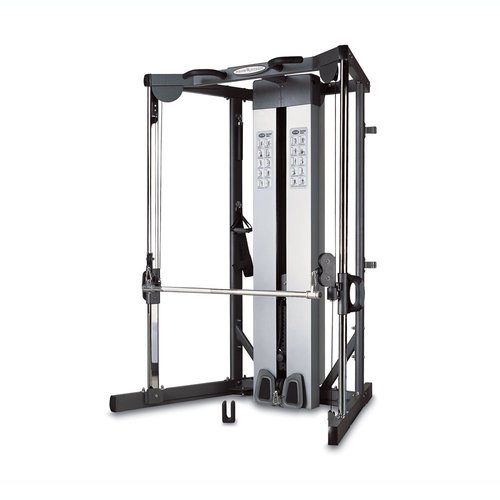

Vision Fitness - ST700 - 2007

Repair Parts for Vision Fitness ST700 GM84

Brand: Vision Fitness

Category: Functional

Type: Strength Systems

Model Name: ST700

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
D 701160 004078-A2 D14 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

701308 004369-00 Q15 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701338 004387-AC Q16 Screw;BH;M5X0.8PX10L;;PH;;BOX;; No Model Compatibility List $2.00 / Each

2
701343 004389-00 Z15 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
E 701386 004442-00 E35 Screw;Hex Socket;M4X0.7PX10L No Model Compatibility List $2.00 / Each

Z 701660 004696-AB Z13 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

Z 701677 004711-AE Z21 Screw;Hex Socket;BH;;M5x0.8Px15L No Model Compatibility List $1.79 / Each

2
F 701733 004758-AC F12 Screw;BH;M10X1.5PX50L;;HS;;ZN;; No Model Compatibility List $2.00 / Each

2
Z 701758 004780-00 Z12 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

Z 701783 004797-AC Z01 Screw;Hex;10X1.5X70L No Model Compatibility List $10.01 / Each

2
Z 701799 004814-AB Z09 Screw;Umbrella Hex Socket;M10x1.5Px100L No Model Compatibility List $18.23 / Each

2
701809 004825-A F13 BOLT BH M10X45 PARTIAL CHM No Model Compatibility List $1.85 / Each

2
701882 004909-AB F18 Nut;Rod End Bearing;M12x1.75P No Model Compatibility List $0.36 / Each

2,8,9,3
Z 701901 004929-00 Z18 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

Z 701914 004943-00 Z03 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

701939 004975-00 B25 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

Z 701981 005017-00 Z05 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

702059 005085-AD Z11 Washer;Flat;5.2x10.0x1.5T;Chromed No Model Compatibility List $1.66 / Each

Z 702098 005130-00 Z14 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

K 702308 005847-A K09 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
K 702719 009365-00 K08 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
702723 009373-E Q13 Delrin Insert No Model Compatibility List $3.64 / Each

1
703370 013797-A E17 Sports Handle No Model Compatibility List $51.90 / Each

11
703706 015827-AA AD3 PULLEY ASSEMBLY SWIVEL DUAL No Model Compatibility List $69.47 / Each
Out Of Stock 		8,3
703887 018997-AA E04 TIP DELRIN No Model Compatibility List $1.79 / Each

1
703955 019986-A NOT SHOWN FOOT CUFF No Model Compatibility List $18.23 / Each

9,3
E 704077 020192-A E08 Screw;Umbrella Cross Tapped;4X10L;Flat No Model Compatibility List $2.00 / Each

Z 704107 020256-00 Z10 Screw;Oval Hex Socket;M5x.8Px10L;Black Zinc No Model Compatibility List $4.00 / Each

Z 704206 020479-A Z02 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

B 704220 020634-00 B26 Tinnerman Nut;M5 No Model Compatibility List $2.00 / Each

704237 021448-B E37 Grip Tape;Left No Model Compatibility List $9.10 / Each

11
704238 021449-B E38 Grip Tape;Right No Model Compatibility List $9.10 / Each

11
Q 704321 022402-B Q17 End Cap;Rear Determination No Model Compatibility List $1.66 / Each

9
704968 026875-C E12 CO-MOLDED EXERCISE HANDLE Yes Model Compatibility List $18.23 / Each

11
Q 705014 029160-AA Q10 End Cap;Handlebar No Model Compatibility List $1.79 / Each

9,11
705049 033235-AB AE1 PIN LOCATING PLATE ADJUSTABLE HANDLE No Model Compatibility List $19.14 / Each

3,12,13,14,11
705364 048964-AA Q09 CAP HANDLEBAR FRONT No Model Compatibility List $1.66 / Each

9,11
705425 049133-BA Q06 CAP HANDLEBAR REAR No Model Compatibility List $1.66 / Each

9,11
Q 705426 049134-BA Q07 Upright Frame Top End Cap No Model Compatibility List $1.66 / Each

9,3
705429 049146-AA Q05 RUBBER BUMPER 65L No Model Compatibility List $3.35 / Each

1
705477 049275-AB F10 SCREW;BH;M10X1.5PX145L-20L;;HS;;CHM;;P-T No Model Compatibility List $8.42 / Each

2
705509 049667-A NOT SHOWN ASSEMBLY/OWNER MANUAL ST700 No Model Compatibility List $18.23 / Each

3
705556 050402-D K04 Pin Selector;Weight Plate No Model Compatibility List $25.09 / Each

3,12,13,14
705576 051730-A NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $29.30 / Each

1
705577 051731-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $32.24 / Each

1
705578 051732-A NOT SHOWN HARDWARE KIT PINK No Model Compatibility List $31.64 / Each

12,13,14
705579 051733-A NOT SHOWN HARDWARE KIT GREEN No Model Compatibility List $32.24 / Each

1
705580 051734-A NOT SHOWN HARDWARE KIT YELLOW No Model Compatibility List $29.30 / Each

1
705581 051735-A NOT SHOWN HARDWARE KIT BLACK No Model Compatibility List $32.24 / Each

4,5,6
705600 051923-AA AB1 FRAME TOP CENTER W/PULLEY No Model Compatibility List $402.35 / Each

8,3
705601 051925-AA AB2 FRAME TOP REAR No Model Compatibility List $380.46 / Each

3
705602 051927-AA AB4 FRAME ASSEMBLY TOP LEFT No Model Compatibility List $244.58 / Each

3
705603 051928-AA AB5 FRAME ASSEMBLY TOP RIGHT No Model Compatibility List $244.58 / Each

3
705609 052048-AA AG1 UPRIGHT FRONT No Model Compatibility List $929.37 / Each

3
705610 052049-AA AG2 UPRIGHT LEFT REAR No Model Compatibility List $352.64 / Each

3
705611 052050-AA AG3 UPRIGHT RIGHT REAR No Model Compatibility List $338.26 / Each

3
705617 052102-A B20 TRAP CABLE BRACKET No Model Compatibility List $3.35 / Each

2,3,4,5,6
705636 052206-AA K05 ROD GUIDE CHM No Model Compatibility List $135.25 / Each

3
705641 052431-A K02 WEIGHT PLATE 10 LB. No Model Compatibility List $63.86 / Each

3
705720 055341-A E28 SWIVEL BAR DUEL No Model Compatibility List $135.25 / Each

1
706181 060008-AA K07 BUSHING INNER WEIGHT PLATE No Model Compatibility List $1.79 / Each

8,3
706276 060714-Z AB3 FRAME TOP FRONT No Model Compatibility List $343.33 / Each

3
706277 060717-ZL AD1 Adjustable Handle;Left No Model Compatibility List $617.66 / Each
Out Of Stock 		11
706278 060717-ZR AD2 HANDLE ADJUSTABLE RIGHT No Model Compatibility List $679.20 / Each

11
706279 060719-Z AC2 STABILIZER ASSEMBLY LEFT No Model Compatibility List $375.39 / Each

3
706280 060720-Z AC3 STABILIZER ASSEMBLY RIGHT No Model Compatibility List $335.53 / Each

3
706281 060722-Z AC1 SUPPORT FLOOR CENTER No Model Compatibility List $755.64 / Each

3
Q 706532 063070-A Q18 Hook Snap No Model Compatibility List $9.10 / Each

1
706558 063485-AA F09 BOLT M10X1.5X48 CHM No Model Compatibility List $4.00 / Each

2
706565 063529-AA Z17 BOLT BH M8X52 CHM No Model Compatibility List $4.00 / Each

2
706567 063533-A Z19 BRACKET CONNECTING No Model Compatibility List $1.90 / Each

2,3,4,5,6
706608 063826-AA F11 SCREW HEX M10X93 CHM No Model Compatibility List $8.42 / Each

2
706654 064225-AX V02 Decal;Vision Fitness No Model Compatibility List $47.37 / Each

7,3
706814 065801-A V01 DECALS WEIGHT PLATES No Model Compatibility List $39.55 / Each

7,3
706857 066303-AA Q03 COVER TOP LEFT No Model Compatibility List $85.59 / Each

9
706858 066304-AA Q04 COVER TOP RIGHT No Model Compatibility List $87.62 / Each

9
706981 067854-A V17 DECAL INSTRUCTION ST700 No Model Compatibility List $1.79 / Each

7,3
707312 1000091939 NOT SHOWN Bolt;Cable;4.8mm Slotted;M12x60 No Model Compatibility List $13.03 / Each

2,4,5,6
707837 1000096179 AQ1 FurniTure Hook Set;Exrta-work;BED;MS10 No Model Compatibility List $14.59 / Each

1
707880 1000096576 F06 CABLE #2 2040MM No Model Compatibility List $70.41 / Each

4,5,6
707881 1000096577 F07 CABLE #1 5690MM No Model Compatibility List $173.58 / Each

4,5,6
707882 1000096578 F08 Cable;8800mm;Left and Right Side No Model Compatibility List $255.81 / Each

4,5,6
708108 1000099767 E07 PLATE FOOT No Model Compatibility List $148.75 / Each

9,3
708235 1000101376 AG5 STABILIZER SUPPORT RIGHT No Model Compatibility List $303.19 / Each

3
708704 1000104977 Q01 SHIELD LEFT WEIGHT STACK No Model Compatibility List $350.97 / Each

3,4,5,6
708705 1000104978 Q02 SHIELD RIGHT WEIGHT STACK No Model Compatibility List $350.97 / Each

3,4,5,6
708757 1000105449 AG4 STABILIZER SUPPORT LEFT No Model Compatibility List $105.77 / Each

3
708828 1000106182 B21 COVER TOP FRONT FRAME No Model Compatibility List $45.68 / Each

9,3
708830 1000106185 AF1 CABLE REAR TERMINATION TUBE No Model Compatibility List $68.67 / Each

3,4,5,6
708841 1000106205 C20 Cable Bracket Yes Model Compatibility List $63.96 / Each

2,3,4,5,6
709037 1000108461 AF2 PULLEY BRACKET TOP PLATE No Model Compatibility List $54.86 / Each

2,8,3,4,5,6
Z 721052 1000380094 Z16 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
725309 069664 NOT SHOWN WEIGHT 5# ADD ON No Model Compatibility List $131.74 / Each

Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

Pulley; 115mm 725584 073573 F21 Pulley; 115mm Yes Model Compatibility List $42.17 / Each

725908 078163 B14 COVER PULLEY No Model Compatibility List $8.42 / Each

727007 086641 K01 Top Plate Assembly No Model Compatibility List $206.75 / Each

Low Row Foot Plate Weldmen (used) 1039050 024161-Z & 021448-B & 021449-B Low Row Foot Plate Weldmen (used) Yes Model Compatibility List $49.00 / Each
Out Of Stock 		1
Weight Plate Stem w Head Weight (Used) 1039062 059717-A & 022512-E Weight Plate Stem w Head Weight (Used) Yes Model Compatibility List $75.00 / Each
Out Of Stock 		1
4.5 Inch Pulley Cable (New) vis4.5pull 073573 4.5 Inch Pulley Cable (New) Yes Model Compatibility List $36.99 / Each
5,37
3.5 Inch Pulley Cable (New) vis3.5pull 087513 3.5 Inch Pulley Cable (New) Yes Model Compatibility List $24.99 / Each
37
Slotted screw with nut 1039140 1000091939 & 004909-AB Slotted screw with nut Yes Model Compatibility List $15.00 / Each
Out Of Stock 		1
