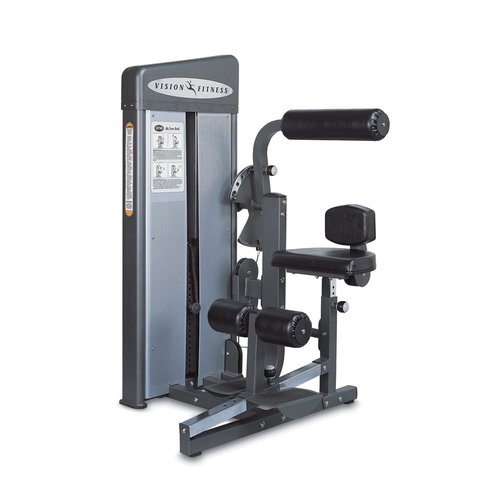

Vision Fitness - ST740 - 2007

Repair Parts for Vision Fitness ST740 GM81

Brand: Vision Fitness

Category: Single Station

Type: Strength Systems

Model Name: ST740

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
T 700467 001440-AA T22 Seat Adjustment Knob Yes Model Compatibility List $13.65 / Each

12,13,14
Z 700494 001510-B Z38 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
C 700519 001523-E C05 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

D 701159 004077-A2 D13 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

B 701660 004696-AB B12 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

Z 701677 004711-AE Z51 Screw;Hex Socket;BH;;M5x0.8Px15L No Model Compatibility List $1.79 / Each

2
Z 701700 004724-AC Z20 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $2.00 / Each

2
Z 701758 004780-00 Z50 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

701767 004789-AC Z14 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $3.69 / Each

701777 004794-AD Z46 SCREW HEX M12X25 CHM No Model Compatibility List $4.00 / Each

2

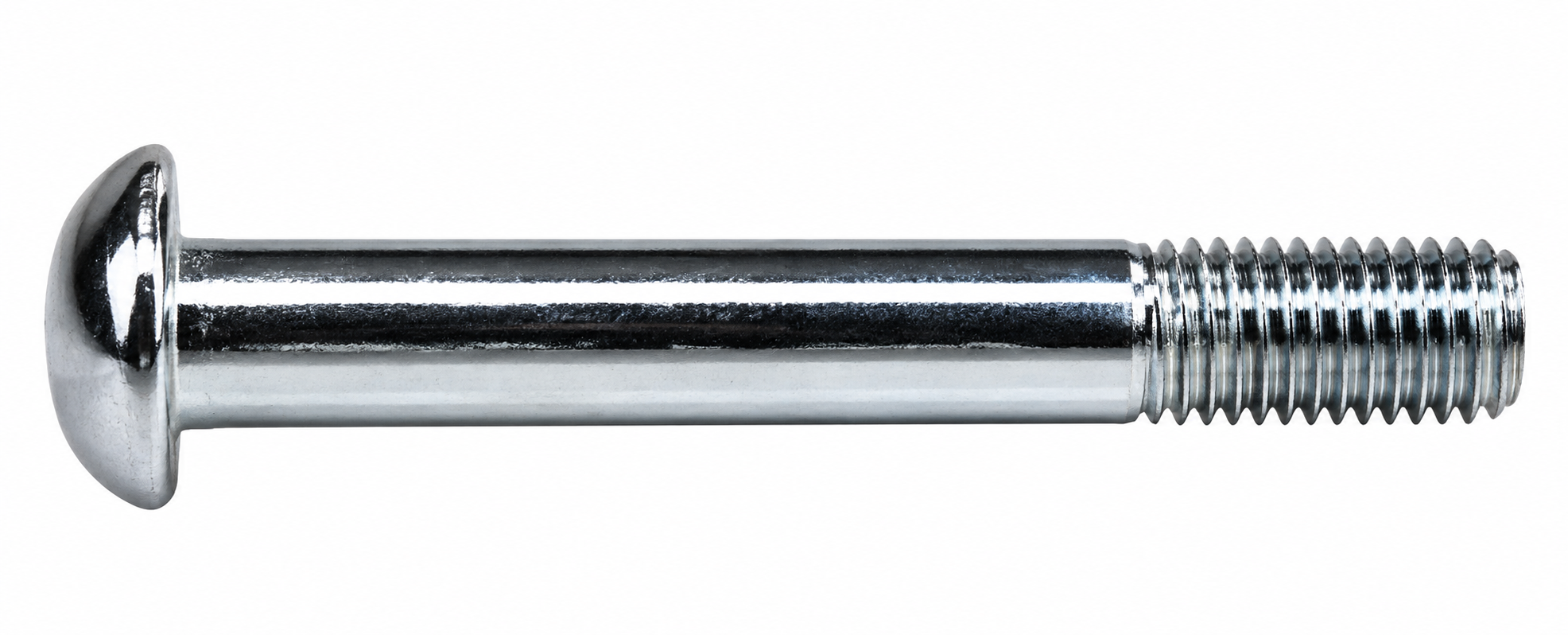

Z 701783 004797-AC Z09 Screw;Hex;10X1.5X70L No Model Compatibility List $10.01 / Each

2
Z 701790 004805-AB Z15 Screw;Umbrella Hex Scoket;M10x1.5Px65L No Model Compatibility List $9.10 / Each

2
Z 701792 004808-AF Z11 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
Z 701901 004929-00 Z03 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

Z 701914 004943-00 Z02 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

Z 701916 004945-00 Z04 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701968 005007-00 Z08 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

Z 701980 005016-00 Z49 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

Z 702056 005084-00 Z48 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

Z 702098 005130-00 Z06 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

Z 702102 005132-00 Z07 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
702178 005220-00 Z31 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702217 005330-00 Z36 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

K 702308 005847-A K10 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
Z 702530 008522-C Z37 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
K 702719 009365-00 K09 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
703887 018997-AA D14 TIP DELRIN No Model Compatibility List $1.79 / Each

1
Z 703901 019151-AA Z39 Rubber Bumper;Weight Stack Yes Model Compatibility List $8.00 / Each

704108 020256-AB Z47 Screw;Hex Socket;BH;M5x0.8Px10L No Model Compatibility List $1.85 / Each

2
704123 020289-00 Z10 Screw;Hex Socket;BH;M10x1.5Px60;Chromed No Model Compatibility List $3.64 / Each

7,2,12,13,14
Z 704206 020479-A Z05 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

F 704316 022395-B F17 Sleeve;Axle;20X40MM No Model Compatibility List $3.64 / Each

8,3
F 704319 022400-A F18 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

705316 040825-AB Z19 SCREW HEX 12X1.75X85 CHM No Model Compatibility List $20.05 / Each

2
Z 705360 048947-BA Z32 Disc;Plastic Exterior No Model Compatibility List $3.64 / Each

9
C 705369 048973-AA C08 Pad Frame Stabilizer No Model Compatibility List $3.35 / Each

3,12,13,14
705397 049054-AA T21 END CAP 25.4X25.4X2 No Model Compatibility List $1.66 / Each

9
B 705402 049062-BA B11 END CAP No Model Compatibility List $3.64 / Each

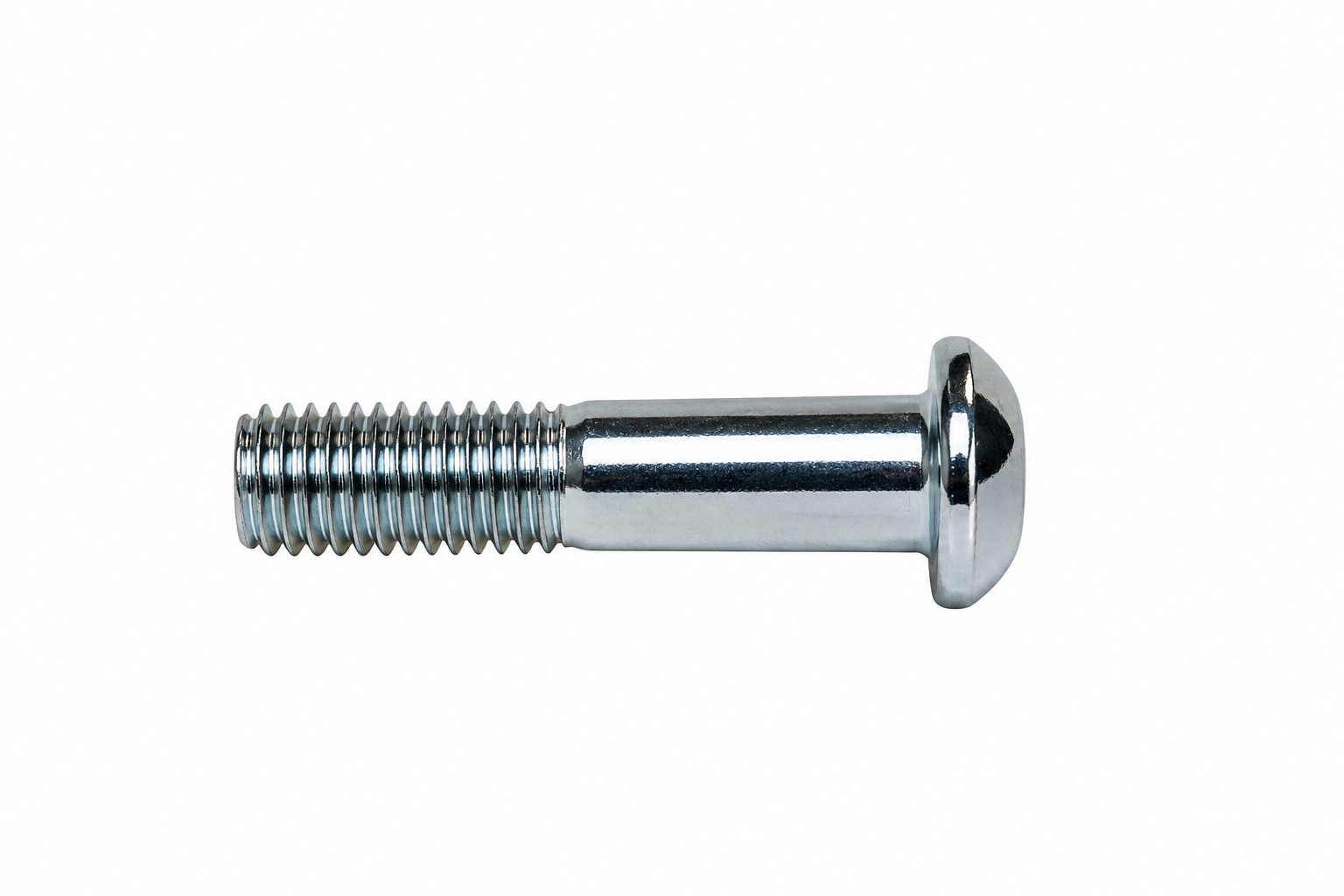

Z 705473 049272-AB Z18 Screw;Hex;M10x1.5Px45L;Chromed No Model Compatibility List $1.85 / Each

7,2,12,13,14
705504 049567-AA H06 PAD ANTISLIP No Model Compatibility List $19.14 / Each

12,13,14
705526 050198-B F10 AXLE 220MM No Model Compatibility List $20.88 / Each

8
705532 050238-B Z22 Screw;BH;10X8X26;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
705549 050352-A F14 Spacer;Steel;20X11X6 No Model Compatibility List $3.64 / Each

2,3,4,5,6
705556 050402-D K07 Pin Selector;Weight Plate No Model Compatibility List $25.09 / Each

3,12,13,14
705561 050467-B T19 BUSHING 19X12X3 CHM No Model Compatibility List $9.10 / Each

8
705582 051744-C D08 KNOB SPRING PIN ASSEMBLY 80MM No Model Compatibility List $9.10 / Each
Out Of Stock 		2,3,12,13,14
705583 051745-C T16 PULL PIN 60MM No Model Compatibility List $18.23 / Each

12,13,14
705614 052067-AA AC2 TUBE FOOT SUPPORT No Model Compatibility List $349.00 / Each

9,3
705641 052431-A K02 WEIGHT PLATE 10 LB. No Model Compatibility List $63.86 / Each

3
705648 053308-BA J02 PAD SEAT No Model Compatibility List $146.72 / Each

12,13,14
705654 053319-BA J03 PAD SEAT BACK No Model Compatibility List $31.75 / Each

4,5,6,12,13,14
705659 053326-BA J04 Round Pad;Leg No Model Compatibility List $69.86 / Each

12,13,14
706181 060008-AA K03 BUSHING INNER WEIGHT PLATE No Model Compatibility List $1.79 / Each

8,3
706215 060265-A V03 DECAL WEIGHT PLATE No Model Compatibility List $3.64 / Each

7,3
706270 060701-Z AD1 ARM SWING No Model Compatibility List $294.81 / Each

3
706271 060703-Z AB1 FRAME WEIGHT STACK No Model Compatibility List $1166.00 / Each

3,4,5,6
706272 060705-Z AH1 SUPPORT FOOT BASE No Model Compatibility List $316.55 / Each

9,3
706273 060706-Z AT2 SEAT POST No Model Compatibility List $856.02 / Each

12,13,14
706274 060706-Z1 AT4 BRACKET SEAT BACK No Model Compatibility List $258.70 / Each

2,3,4,5,6,12,13,14
Z 706533 063161-AA Z13 Screw;Hex Socket;MX8X1.25X62L-20L;Chromed Yes Model Compatibility List $7.90 / Each

2
C 706539 063236-A C06 Screw;SH;M8X1.25PX22L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
706541 063237-AB Z01 SCREW HEX M10X1.5X48 CHM PARTIAL No Model Compatibility List $4.00 / Each

2
706543 063240-AA Q06 COVER TOP RIGHT No Model Compatibility List $81.02 / Each

9
706544 063241-AA Q07 COVER TOP LEFT No Model Compatibility List $81.02 / Each

9
706879 066555-A Z12 SCREW HEX M10X10 CHM No Model Compatibility List $1.85 / Each

2
706909 067130-A V14 DECAL VF PANEL 700 SERIES No Model Compatibility List $1.66 / Each

7,3
707024 068479-A NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $93.13 / Each

1
707025 068480-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $71.94 / Each

1
707026 068481-A NOT SHOWN HARDWARE KIT PINK No Model Compatibility List $49.53 / Each

12,13,14
707027 068483-A NOT SHOWN HARDWARE KIT BLACK No Model Compatibility List $31.12 / Each

4,5,6
707028 068484-A NOT SHOWN HARDWARE KIT YELLOW No Model Compatibility List $9.28 / Each

1
707029 068485-A NOT SHOWN HARDWARE KIT RED No Model Compatibility List $18.56 / Each

1
707030 068486-A NOT SHOWN HARDWARE KIT LIGHT BLUE No Model Compatibility List $76.75 / Each

1
707210 1000091216 AG2 SUPPORT SWING ARM No Model Compatibility List $472.47 / Each

3
707312 1000091939 NOT SHOWN Bolt;Cable;4.8mm Slotted;M12x60 No Model Compatibility List $13.03 / Each

2,4,5,6
707841 1000096288 AT1 SUPPORT SEAT POST No Model Compatibility List $237.12 / Each

3,12,13,14
707870 1000096554 F13 CABLE 2855mm No Model Compatibility List $108.42 / Each

4,5,6
707933 1000097083 AT3 SEAT FRAME No Model Compatibility List $314.13 / Each

3,12,13,14
708236 1000101378 Q08 BRACKET CONNECTING TOP & BOTTOM No Model Compatibility List $71.34 / Each

2,3,4,5,6
708300 1000101896 Q09 BRACKET SIDE CONNECTING No Model Compatibility List $61.33 / Each

2,3,4,5,6
708760 1000105459 AC1 SUPPORT FLOOR SIDE No Model Compatibility List $150.07 / Each

3
708762 1000105461 Q02 SHIELD RIGHT No Model Compatibility List $155.66 / Each

3
708814 1000106127 Q03 SHIELD REAR No Model Compatibility List $226.33 / Each

3
708819 1000106143 Z40 BRACKET AXLE L No Model Compatibility List $50.67 / Each

2,8,3,4,5,6
708826 1000106179 G10 Plate Support;Swivel Arm No Model Compatibility List $33.54 / Each

3
708832 1000106187 AG3 TUBE FRAME CONNECTION No Model Compatibility List $50.60 / Each

3
708833 1000106188 AG1 SUPPORT CENTER FLOOR No Model Compatibility List $107.61 / Each

3
708840 1000106204 AF2 BRACKET DUAL PULLEY ASSEMBLY(service) No Model Compatibility List $108.81 / Each

2,8,3,4,5,6
708854 1000106268 Q01 SHIELD LEFT No Model Compatibility List $256.05 / Each

3
725419 071083 Z33 Disc Plastic Interior No Model Compatibility List $1.77 / Each

Pulley; 115mm 725584 073573 F21 Pulley; 115mm Yes Model Compatibility List $42.17 / Each

725977 078793 V01 DECAL INSTRUCTION ST740 No Model Compatibility List $34.61 / Each

727007 086641 K01 Top Plate Assembly No Model Compatibility List $206.75 / Each

729009 ORDER K04 K01 PLATE WEIGHT TOP No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Z 957398 005330-00 Z36 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

4.5 Inch Pulley Cable (New) vis4.5pull 073573 4.5 Inch Pulley Cable (New) Yes Model Compatibility List $36.99 / Each
5,37
3.5 Inch Pulley Cable (New) vis3.5pull 087513 3.5 Inch Pulley Cable (New) Yes Model Compatibility List $24.99 / Each
Out Of Stock 		37
