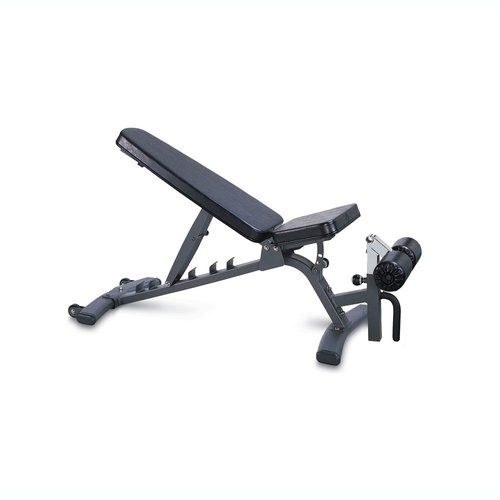

Vision Fitness - ST780 - 2007

Repair Parts for Vision Fitness ST780 FW101

Brand: Vision Fitness

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW101

Model Name: ST780

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

17545.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700022	000037-CC	C12	Wheel;Nylon	No	Model Compatibility List	$3.82 / Each	8
700252	000782-B	H08	Pad;Stopper	No	Model Compatibility List	$1.79 / Each	12,13,14
700467	001440-AA	H20	Seat Adjustment Knob	Yes	Model Compatibility List	$13.65 / Each	12,13,14
701183	004118-00	T12	Bearing;Dry;Flange;LEF-2015 LFF-2015	No	Model Compatibility List	$3.64 / Each	8
701338	004387-AC	H09	Screw;BH;M5X0.8PX10L;;PH;;BOX;;	No	Model Compatibility List	$2.00 / Each	2
701585	004616-00	C10	Screw;Umbrella Cross Tapped;4x12L	No	Model Compatibility List	$2.00 / Each
701758	004780-00	Z07	Screw;Hex Socket;BH;M10x1.5Px25L;Adhere	No	Model Compatibility List	$2.00 / Each
701791	004805-AD	Z13	Screw;Hex;10X1.5X65L;Chrome	No	Model Compatibility List	$3.64 / Each	7,2,12,13,14
701914	004943-00	Z05	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701916	004945-00	Z09	Nut;Nylon;M12x1.75P;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
701959	005002-00	C09	Washer;Split;4.1x7.6x1.0T	No	Model Compatibility List	$2.00 / Each	2
701981	005017-00	Z15	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702102	005132-00	Z10	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702747	009486-00	T10	Bushing;Seat Slide Bar	No	Model Compatibility List	$1.90 / Each	8,12,13,14
702831	011179-00	T08	Washer;Teflon;M12x30Px1T	No	Model Compatibility List	$4.00 / Each	2
704106	020255-AC	C11	Screw;Hex Socket;BH;M5x0.8Px20L;Chromed	No	Model Compatibility List	$3.64 / Each	7,2,12,13,14
704123	020289-00	Z03	Screw;Hex Socket;BH;M10x1.5Px60;Chromed	No	Model Compatibility List	$3.64 / Each	7,2,12,13,14
704193	020465-AB	Z02	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704206	020479-A	Z04	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
704284	022231-A	C08	Pad Frame Stabilizer	No	Model Compatibility List	$1.79 / Each	3,12,13,14
705394	049051-AA	C07	End Cap;Stabilizer	Yes	Model Compatibility List	$12.17 / Each	9
705399	049059-AB	T14	GRIP POSITIONING	No	Model Compatibility List	$3.64 / Each	11
705422	049128-AA	Q04	End Cap;Back	No	Model Compatibility List	$1.79 / Each
705427	049139-BA	H13	END CAP	No	Model Compatibility List	$1.79 / Each	9
705547	050334-A	T15	SLEEVE	No	Model Compatibility List	$3.64 / Each	3
705582	051744-C	B09	KNOB SPRING PIN ASSEMBLY 80MM	No	Model Compatibility List	$9.10 / Each Out Of Stock	2,3,12,13,14
705615	052070-AA	AH2	LEG ADJUSTABLE ASSEMBLY	No	Model Compatibility List	$418.11 / Each	3
705632	052197-AA	H06	AXLE LEG	No	Model Compatibility List	$18.23 / Each	8
705657	053322-BA	B07	PAD SEAT BACK	No	Model Compatibility List	$309.14 / Each	4,5,6,12,13,14
705659	053326-BA	B06	Round Pad;Leg	No	Model Compatibility List	$69.86 / Each	12,13,14
706568	063534-B	T25	AXLE SWIVEL 20x132L	No	Model Compatibility List	$18.23 / Each	8
706604	063763-AA	H12	Cap Bottom	No	Model Compatibility List	$3.82 / Each	9
706618	063840-AA	B08	PAD SEAT	No	Model Compatibility List	$135.25 / Each	12,13,14
706619	063841-00	Z01	Nut;HAC;M10X1.5P(Yrw8L);SS41;CHM;;	No	Model Compatibility List	$1.79 / Each
706758	065405-AB	Z06	SCREW BH M12X115 CHM	No	Model Compatibility List	$3.35 / Each	2
706880	066556-Z	AH1	FRAME BASE SET	No	Model Compatibility List	$188.24 / Each	3
706881	066558-Z	AT2	BASE BACK ASSEMBLY	No	Model Compatibility List	$154.44 / Each	3,4,5,6
706882	066559-Z	AC2	STABILIZER ASSEMBLY FRONT	No	Model Compatibility List	$227.99 / Each	3
706883	066562-Z	AT1	BASE SEAT ASSEMBLY	No	Model Compatibility List	$153.22 / Each	3,12,13,14
706947	067350-A	NOT SHOWN	MANUAL ASSEMBLY/OWNER ST780	No	Model Compatibility List	$16.87 / Each	3
707040	068858-A	NOT SHOWN	HARDWARE KIT PINK	No	Model Compatibility List	$16.87 / Each	12,13,14
707041	068859-A	NOT SHOWN	HARDWARE KIT BLUE	No	Model Compatibility List	$24.13 / Each	1
707042	068860-A	NOT SHOWN	HARDWARE KIT ORANGE	No	Model Compatibility List	$34.79 / Each	1
986316	004616-00	C10	Umbrella Cross Tapped Screw 4x12L (New)	No	Model Compatibility List	$12.00 / Each Out Of Stock
