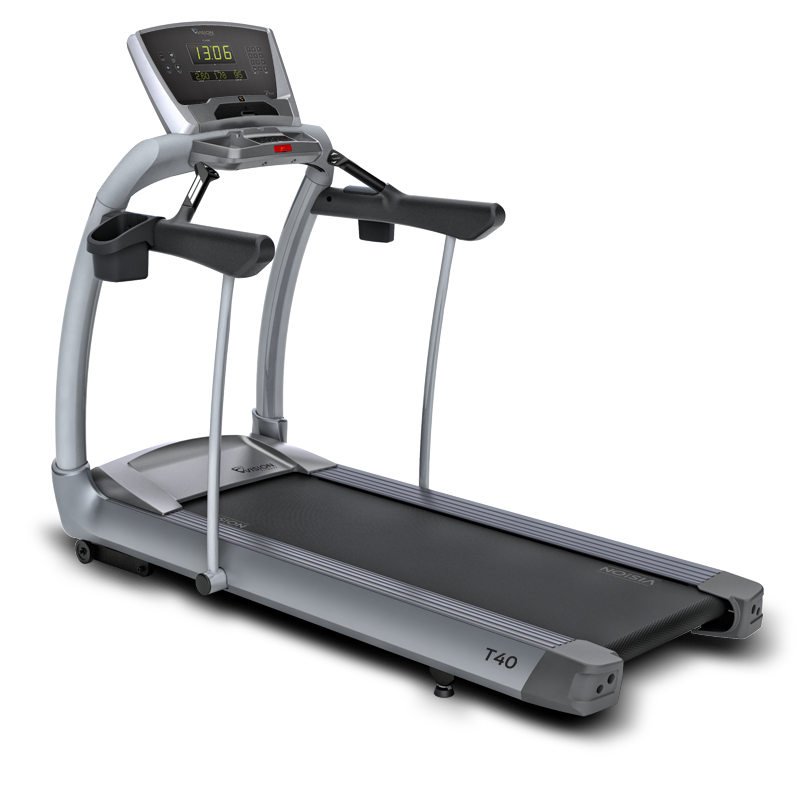

Vision Fitness - T40 - 2012

Repair Parts for Vision Fitness T40 TM433,TM435_1,TM435_2,TM435_3

Brand: Vision Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T40

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700013 000020-C2 H18 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
B 700135 000491-B B91 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
B 700242 000763-E B24 Elastomer;Black 90 No Model Compatibility List $16.04 / Each

700264 000820-E2 B28 Deck Extension;Right No Model Compatibility List $1.90 / Each

700265 000821-E2 B39 Deck Extension;Left No Model Compatibility List $1.90 / Each

701013 003326-00 P01 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

P 701021 003347-00 P02 Circuit Breaker;Current;ZE-700 20A/250V; Yes Model Compatibility List $28.73 / Each

701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $57.49 / Each

23
701300 004364-00 P08 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

P 701363 004415-00 P06 Screw;FH;M3X0.5PX10L;;PH;;ZN;; No Model Compatibility List $2.00 / Each

R 701446 004488-AC R09 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701454 004502-00 M26 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

701481 004527-AC R08 Screw;Round;Hex Socket;M8x1.25Px35L No Model Compatibility List $1.79 / Each

G 701528 004560-AD G24 Screw;Hex Socket;Sink;M6x1.0Px20L;Adhere No Model Compatibility List $2.00 / Each

701530 004562-00 B27 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
N 701574 004608-00 N30 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701586 004617-00 Q19 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701591 004620-00 Z06 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

Q 701601 004625-00 Q15 Screw;BH;4X20L;SM;PH;;BAN;;POT No Model Compatibility List $2.00 / Each

2
701607 004628-00 B150 Screw;Oval Tapping;Phillip;5x15L No Model Compatibility List $1.59 / Each

2,12,13,14
701612 004631-00 G26 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701622 004641-A Q17 Screw;Umbrella Cross Tapped;5x20L No Model Compatibility List $2.00 / Each

2
Z 701751 004775-00 Z05 Bolt;M8X1.25PX95L(20L) No Model Compatibility List $4.00 / Each

2
Z 701803 004817-A Z08 Screw;BH;M6X1.0PX45L;;HS;;;; No Model Compatibility List $2.00 / Each

2
Z 701841 004859-00 Z12 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701842 004859-AC Z01 Screw;BH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $2.00 / Each

701861 004883-00 M23 Nut;Hex;M6x1.0P No Model Compatibility List $2.00 / Each

701866 004889-00 P10 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 R05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701900 004928-00 H15 Nut;Nylon;M12x1.75P No Model Compatibility List $4.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

H 701912 004941-00 H20 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

701939 004975-00 B26 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M35 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701966 005005-ZAB Z10 Washer;Spring;8.2x15.4x2.0t;Yellow Ni No Model Compatibility List $2.00 / Each

2
701968 005007-00 H11 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

701970 005009-AB Z03 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

B 702004 005042-00 B105 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

702007 005044-00 R07 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702014 005048-AC Z04 Washer;Flat;8.2x15.0x1.2T;Chromed No Model Compatibility List $2.00 / Each

702016 005051-00 M25 Washer;Flat;8x16x1.4T No Model Compatibility List $2.00 / Each

2
702074 005106-00 R06 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

M 702136 005165-00 M27 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

702145 005177-00 P09 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

702217 005330-00 B20 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702831 011179-00 H17 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2
B 703505 015053-AJ B45 Side Rail Fixing Board No Model Compatibility List $1.77 / Each

9
703878 018905-AA Q35 Foam Tape;One Sided;20x5x150L No Model Compatibility List $1.90 / Each

1
703919 019354-A P04 Connecting Cable;Breaker/Switch;Black;120mm No Model Compatibility List $9.57 / Each

703920 019370-A P26 Power Cord;14 Guage/15 Amp Yes Model Compatibility List $57.49 / Each

P 703931 019461-A P11 Control Board Power Wire No Model Compatibility List $1.90 / Each

7,4,5,6
P 703932 019462-A P12 Control Board Power Wire No Model Compatibility List $1.90 / Each

7,4,5,6
703994 020077-00 H09 Screw;Hex Socket;Round;M12X1.75PX60L(30L) No Model Compatibility List $4.00 / Each

2
M 704058 020152-00 M10 Screw;HH;3/8-16UNCX50L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

704062 020160-00 M28 SCREW;HH;M6X1.0PX25L;;HE;;;; No Model Compatibility List $0.42 / Each

2
Z 704183 020446-00 Z09 Washer;Flat;6.4X13.0X1.5T;;BZN; No Model Compatibility List $1.79 / Each

2
H 704202 020477-A H13 Washer;Flat;12.5x23.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

H 704203 020478-00 H19 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

704212 020484-00 Z02 Washer;Arc;8.4x17x1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 704979 028275-AA B21 Adjustable Leveler Yes Model Compatibility List $1.90 / Each

Q 704999 028633-A Q16 Screw;Phillip;BH;Tapped;4x15L;;Zn-BL No Model Compatibility List $1.79 / Each

Q 705356 048936-AA Q03 Motor Cover;Bottom No Model Compatibility List $45.08 / Each

9,10
705857 056374-AA M08 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.90 / Each

706312 061162-AC B29 Screw;Hex Socket;Sink;M8x1.25Px40L No Model Compatibility List $4.00 / Each

2
N 707457 1000092805 Not Shown Silicon Oil;40ml No Model Compatibility List $32.49 / Each

708085 1000099219 L07 Open-Type Pin;R-Type;Nominal diameter3. No Model Compatibility List $1.90 / Each

708090 1000099323 Z07 End Cap;Front Stabilizer Yes Model Compatibility List $9.57 / Each

9
708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $249.13 / Each

28
708858 1000106666 Z11 Nut;HX;M8X1.25P;SS41;BAN;; No Model Compatibility List $1.79 / Each

2
708997 1000108136 N82 Console Cable;Upper;700(25430101-08+SM-8Y) Yes Model Compatibility List $19.84 / Each

4,5,6,7
A 709035 1000108456 AR1 Roller Set;Front;Texture;TM136 Yes Model Compatibility List $191.62 / Each

8
709036 1000108457 AR2 Roller Set;Rear;TM105 Yes Model Compatibility List $191.62 / Each

26
M 709273 1000111694 M03 Motor Control Board;2.75HP;110V;MLH0914HFSB Yes Model Compatibility List $467.77 / Each

48
709967 1000205281 N84 Wire;IPOD-PCB;300L;XHS-10Y Yes Model Compatibility List $12.17 / Each

4,5,6
B 710309 1000208940 B25 Extrawork;Elastomer;Running Deck;Nai Ri Yes Model Compatibility List $27.35 / Each

710643 1000211507 B68 Fixing Plate;Power;;;;;PAT;;; No Model Compatibility List $23.32 / Each

3,4,5,6
B 710859 1000214545 B08 Fixing Plate;MCB Board;;;SPCC;;;;; No Model Compatibility List $17.03 / Each

3
L 710867 1000214660 L06 Pillar;45;BZN;;; No Model Compatibility List $3.82 / Each

711070 1000216278 P18 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $3.82 / Each

711265 1000219179 Not Shown Documentation Manual;TM Safety Direction No Model Compatibility List $11.91 / Each

9
N 711287 1000219565 N07 PLASTIC BLOCK;;ABS;;SAFETY KEY;TM434 Yes Model Compatibility List $9.70 / Each

9
G 711291 1000219584 G16 KettleRack;2;BL;TM434-1US Yes Model Compatibility List $31.41 / Each

4,5,6
R 711294 1000219595 R02 R-BELT;3246X495X2.2T No Model Compatibility List $383.27 / Each

15
N 711296 1000219607 N43 SAFETY KEY SET;TM434-1US No Model Compatibility List $40.14 / Each

G 711306 1000219642 G15 KettleRack1;BL;TM434-1US; Yes Model Compatibility List $38.32 / Each

4,5,6
N 711331 1000220024 N62 OVERLAY;D;EN;Bronze;TM435 No Model Compatibility List $38.32 / Each
Out Of Stock 		1
P 711371 1000220502 P03 WIRE;;BELOW;1500L(CKM254301-8P SM-8Y); No Model Compatibility List $9.57 / Each

4,5,6
711372 1000220504 Q18 PROTECTED PLATE;MOTOR;D;PE;BL No Model Compatibility List $9.57 / Each

3,10
N 711412 1000220729 N01 Screw;Thread Hitch;Aluminum Base;8X1.2 No Model Compatibility List $1.85 / Each

7,2,3,12,13,14
711859 1000223374 P05 PWR SOCKET;CE;100,1250,80;250 90Deg. No Model Compatibility List $9.57 / Each

1
N 711870 1000223397 N83 WIRE;HANDLEBAR;700(XHS-11Y+HX30002-6Rx2) Yes Model Compatibility List $18.67 / Each

4,5,6,11
G 711871 1000223398 G20 WIRE;HANDLEBAR;750L(3P 110 HX30002-6P Yes Model Compatibility List $14.77 / Each

4,5,11
B 711882 1000223440 B31 TM DECK;;608x1360x25.4T;;;TM433; No Model Compatibility List $287.46 / Each

3
711883 1000223442 AC1 CONSOLE MAST SET;CONSOLE MAST;-;PAINTING No Model Compatibility List $229.97 / Each

7
A 711912 1000223664 AG4 SUPPORT TUBE;HANDLE BAR;RT;PAINTING; Yes Model Compatibility List $76.65 / Each

3,11
711913 1000223666 AC2 CONSOLE MAST SET;CONSOLE;R;PAINTING No Model Compatibility List $229.97 / Each

7
A 711914 1000223669 AG3 SUPPORT TUBE WELDING SET;SIDE HANDLE BAR Yes Model Compatibility List $76.65 / Each

3,11
Q 711915 1000223679 Q06 END CAP;ABS;PANTONE 425C Gray;TM433;; Yes Model Compatibility List $25.64 / Each

9
Q 711916 1000223680 Q07 END CAP;;ABS;PANTONE 425C GRAY;TM433;; Yes Model Compatibility List $15.64 / Each

9
711917 1000223691 Not Shown DOCUMENTATION;MANUAL;MANIPULATETM434-2KM No Model Compatibility List $9.57 / Each

1
711924 1000223831 AH1 PAINT;FOOT SET,INCLINE;BLACE METALS;TM43 No Model Compatibility List $229.97 / Each

9,3,4,5,6,10
N 711965 1000224518 N81 CONTROL BOARD;KEY;SOO1126;HBPB; Yes Model Compatibility List $8.40 / Each

7,9
N 711978 1000224655 N80 WIRE;SAFE SWITCH;150L(XHS2.5-2P) Yes Model Compatibility List $23.87 / Each

4,5,6
712012 1000225029 B79 PLASTIC PLATE;RE;PP;BL;DECK;EXTEND;70X50 No Model Compatibility List $1.90 / Each

9,3
N 712112 1000226797 N04 Stopper Board;Base;BL;HIPS,PH-88;TM423-1 Yes Model Compatibility List $20.14 / Each

3
712126 1000226815 M05 MOTOR FIXNG PLATE;FRAME;;;PAINTING;;;BLA No Model Compatibility List $57.49 / Each

3,10
N 712157 1000227054 N85 CONTROL BOARD;EUP BOARD;;;HDPD;;; Yes Model Compatibility List $11.00 / Each

7
712367 1000228564 Not Shown HARDWARE SET;-;TM433;-; No Model Compatibility List $60.22 / Each

1
N 712446 1000228957 N06 READING RACK SET;U;VISION DARK SILVER PA Yes Model Compatibility List $38.32 / Each

4,5,6
712447 1000228958 N03 READING RACK SET ;D;VISION DARK SILVER P No Model Compatibility List $24.91 / Each

4,5,6
712458 1000228981 Q11 PLASTIC COVER ,L;1;VISION MEDIUM SILVER No Model Compatibility List $24.91 / Each

9
712459 1000228982 Q12 PLASTIC COVER ;L;2;VISION MEDIUM SILVER No Model Compatibility List $9.57 / Each

9
712460 1000228983 Q13 PLASTIC COVER ;R;1;VISION MEDIUM SILVER No Model Compatibility List $24.91 / Each

9
712461 1000228984 Q14 PLASTIC COVER ;R;1;VISION MEDIUM SILVER No Model Compatibility List $9.57 / Each

9
7 712587 1000229640 7 GRIP SET;PULSE;SA;L;TM434-1US;SERVICE; Yes Model Compatibility List $38.32 / Each

11,12,13,14
8 712588 1000229641 8 GRIP SET ;PULSE ;SA;R;TM434-1US;SERVICE; Yes Model Compatibility List $38.32 / Each

11,12,13,14
712811 1000230893 1 Motor set;Semi-Assy;;;;TM433-1US;; No Model Compatibility List $958.20 / Each

10
3 712812 1000230894 3 ARM REST SET;SA;R;TM433-1US;;; Yes Model Compatibility List $479.10 / Each

3
2 712813 1000230895 2 ARM REST SET;SA;L;TM433-1US;;; Yes Model Compatibility List $479.10 / Each

3
712814 1000230896 4 Console Base Set;SA;;TM433-1US;;; No Model Compatibility List $574.91 / Each

7,3
5 712815 1000230897 5 SIDE RAIL SET;SA;R;TM433-1US;;; Yes Model Compatibility List $134.13 / Each

9
712816 1000230898 6 SIDE RAIL SET;SA;L;TM433-1US;;; No Model Compatibility List $134.13 / Each

9
712845 1000231023 P21 POWER SWITCH FIXING; TM434 No Model Compatibility List $9.57 / Each

4,5,6
Q 712959 1000231802 Q01 MOTOR COVER;UP;ABS;Net;BL;TM434 Yes Model Compatibility List $89.65 / Each

9,10
716605 1000337790 B90 Fixing Plate;Side Rail2;;SPHC;;;TM445; No Model Compatibility List $3.82 / Each

9,3
R 724436 1000419646 R02 Treadmill Belt;495x3250x2.2t;no wax;Blac Yes Model Compatibility List $141.93 / Each

15,4,5,6
Speed feedback system;Motor controller2. 726233 080869 Not Shown Speed feedback system;Motor controller2. No Model Compatibility List $28.99 / Each

Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

Speed Sensor 726503 082406 M38 Speed Sensor Yes Model Compatibility List $31.10 / Each

726748 084584 B51 Screw;BH;M8X1.25PX20L;;HS;;BAN;; No Model Compatibility List $1.79 / Each

727433 089165 B37 Clip Nut;Attached Plate;Elastomer;SPCC;1.6t;Zn Pl No Model Compatibility List $3.64 / Each

729118 Part of Kit 1 M09 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729138 Part of Kit 2 AG1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
729152 Part of Kit 3 AG2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729165 Part of Kit 4 N05 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729172 Part of Kit 5 Q04 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 Q05 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729194 Part of Kit 7 G14 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729197 Part of Kit 8 G23 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729784 ZMS4004832 Not Shown Medium Silver Touch-Up Paint No Model Compatibility List $47.89 / Each

1
729785 ZMS4004833 Not Shown Flat Black Touch-Up Paint No Model Compatibility List $50.18 / Each

4,5,6
729786 ZMS4004834 Not Shown Dark Grey Touch-Up Paint No Model Compatibility List $45.60 / Each

1
B 1020890 000763-E B24 1 Red Elastomer Version - Used No Model Compatibility List $7.79 / Each

M 1000111694 1000111694 M03 1 Lower Control Board Motor Controller Yes Model Compatibility List $362.70 / Each

48
DC Drive Motor Johnson 1000112728 1000112728 0 1 DC Drive Motor Johnson Yes Model Compatibility List $635.70 / Each

10
P 1001381 003326-00 P01 1 Power Switch Yes Model Compatibility List $29.99 / Each

M 1003118 1000111694 M03 1 Controller Motor 110 V Yes Model Compatibility List $299.99 / Each

48
M 1003555 1000111694 M03 1 Controller Motor Yes Model Compatibility List $299.00 / Each

48
Elegant Console (Used) 1030037 1000229482 1001 Elegant Console (Used) No Model Compatibility List $299.00 / Each
Out Of Stock
P 1000573 003326-00 P01 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

A 1001529 1000108456 AR1 Front Drive Roller Yes Model Compatibility List $95.99 / Each

8
M 1001366 1000101465 M02 Incline Motor Elevation Yes Model Compatibility List $89.00 / Each
28
P 1003694 003347-00 P02 Power Entry Circuit Breaker Yes Model Compatibility List $9.99 / Each

P 1036808 019354-A P04 Power harness wire Yes Model Compatibility List $5.00 / Each

Display Matrix LCD Screen T80 Touch 1037002 1000229482 Display Matrix LCD Screen T80 Touch Yes Model Compatibility List $239.00 / Each

P 1009784 003347-00 P02 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $3.59 / Each

P 1034434 003326-00 P01 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P01 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Z 911968 004620-00 Z06 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

R 976932 004926-00 R05 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B20 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

N 911958 004608-00 N30 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
