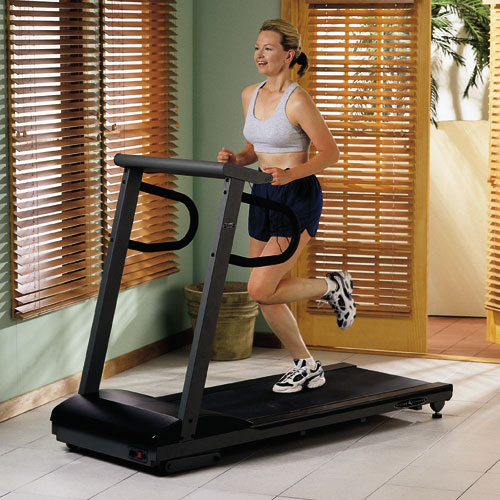

Vision Fitness - T8400HRC - 1998-2000

Repair Parts for Vision Fitness T8400HRC T8400HRC

Brand: Vision Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T8400HRC

Version: 1998-2000

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700013 000020-C2 122 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
700238 000758-B 136 PAD DECK CUSHION No Model Compatibility List $9.10 / Each

3,12,13,14
N 700254 000785-00 NOT SHOWN Water Bottle Holder Yes Model Compatibility List $8.87 / Each

1
700270 000826-00 138 Bushings;Elevation Frame Yes Model Compatibility List $5.80 / Each

3
700402 001251-F 141 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

1 700691 001842-A 103 MOTOR ELEVATOR 110V W/INSTRUCTIONS Yes Model Compatibility List $456.27 / Each
Out Of Stock 		10
1 700701 001955-00 178 Reed Switch Yes Model Compatibility List $25.40 / Each

4,5,6
1 700749 002130-00 171 Power Cord;110V/14AWG Yes Model Compatibility List $60.22 / Each

4,19,42
1 700750 002137-E 171 Power Cord;3000;3000;16AWG No Model Compatibility List $54.73 / Each

700838 002499-B2 169 Power Wire;Control Board;14AWG;White Yes Model Compatibility List $3.43 / Each

700840 002500-B2 166 Power Wire;Control Board;14AWG;Black Yes Model Compatibility List $3.43 / Each

700976 003104-00 175 TOUCH BOARD SIMPLE No Model Compatibility List $36.48 / Each

1
N 701008 003307-00 NOT SHOWN Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

701013 003326-00 164 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

1 701018 003340-C 162 Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $37.75 / Each

1
701024 003356-00 163 Power Socket;Large;100-120-170 No Model Compatibility List $12.71 / Each

4,5,6
701203 004158-00 132 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $57.49 / Each

23
701233 004215-B 133 Running Belt;503X2790X2.5T No Model Compatibility List $365.01 / Each

15
2 701284 004351-00 221 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

2 701294 004359-00 208 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2 701316 004372-00 203 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2 701403 004457-00 204 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
701439 004482-ZAB 235 BOLT HH M8X20 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
701451 004496-00 205 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

2 701529 004561-00 229 Screw;Plain Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701530 004562-00 225 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
2 701550 004577-00 237 Screw;Round Hex Socket;5/16-18UNCx3/4L No Model Compatibility List $1.79 / Each

701585 004616-00 202 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701637 004667-00 212 Screw;Wagon;3/8-16UNCx20L No Model Compatibility List $1.79 / Each

2
701642 004676-00 214 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701663 004698-Z 207 BOLT PH M8X50 PARTIAL No Model Compatibility List $1.79 / Each

2
2 701841 004859-00 228 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
2 701891 004924-00 211 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 226 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2 701907 004933-00 216 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

701908 004934-00 218 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

701968 005007-00 239 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

702025 005058-00 238 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

702030 005062-00 206 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702033 005065-00 209 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702040 005070-00 215 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
2 702052 005080-00 210 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702217 005330-00 201 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702313 005968-B NOT SHOWN MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
702419 006719-00 NOT SHOWN Warranty Card No Model Compatibility List $1.66 / Each

1
702456 007528-BX Not Shown Belt Guide Yes Model Compatibility List $5.98 / Each

15
702763 009573-B 123 FIX BLOCK No Model Compatibility List $23.92 / Each

1
703896 019111-00 146 ELASTOMER SEAT 70/74 No Model Compatibility List $1.79 / Each

12,13,14
703905 019170-00 142 Side Rail;Left No Model Compatibility List $26.49 / Each

9
703994 020077-00 232 Screw;Hex Socket;Round;M12X1.75PX60L(30L) No Model Compatibility List $4.00 / Each

2
2 704060 020156-00 230 Bolt;HH;3/8X80L;Partial No Model Compatibility List $1.92 / Each

2
704102 020245-Z 73 Bolt;Phillip;M8x95;Partial No Model Compatibility List $3.35 / Each

2
704169 020401-00 223 Nut;Nlk;M12X1.75P No Model Compatibility List $0.83 / Each

2
1 704937 026438-Z 14 SAFETY KEY ASSEMBLY Yes Model Compatibility List $41.68 / Each

3,9
1 705072 035097-AA 168 Console Cable;8 Pin;3000mm Yes Model Compatibility List $38.53 / Each

4,5,6,7,12,13,14
1 709277 1000111750 137 Leveler Yes Model Compatibility List $4.37 / Each

3
729310 ZMK1000063 Not Shown DECK Retrofit KIT No Model Compatibility List $16.87 / Each

3
729318 ZMK4000024 NOT SHOWN BOLT KIT EXTRA LONG FOR FRAME REINFORCEM No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3
N 729334 ZMS1000217 NOT SHOWN TREADMILL WAX WITH INSTRUCTIONS No Model Compatibility List $15.18 / Each

729335 ZMS1000220 NOT SHOWN MOTOR BRUSH LEESON No Model Compatibility List $45.99 / Each

10
729337 ZMS1000250 227 BOLT HH M8X15 No Model Compatibility List $1.85 / Each

2
729338 ZMS1000252 236 BOLT HH 3/8X47 PARTIAL No Model Compatibility List $0.00 / Each
Out Of Stock 		2
729384 ZMS1000362 217 WASHER LK 10X17X2 CHM No Model Compatibility List $2.00 / Each

2
729391 ZMS1000420 78 T85/84 (R) CONSOLE SUPPORT No Model Compatibility List $87.52 / Each

7,3
Display Console - Used Only 1004765 ZMS1000243 Display Console - Used Only No Model Compatibility List $245.70 / Each

7
Console Cable;6 Pin;3000mm(Used) 1012776 035097-AA-00 1 Console Cable;6 Pin;3000mm(Used) Yes Model Compatibility List $15.59 / Each

5
2.0 HP Drive Motor (Refurb) 1000951-R 024711-00 - 1 2.0 HP Drive Motor (Refurb) Yes Model Compatibility List $258.70 / Each

10
Lower Control Board Motor Controller 1000416 013680-DI 0 1 Lower Control Board Motor Controller Yes Model Compatibility List $319.00 / Each

1
1 1000538 002130-00 171 1 Power Cord (Used) Yes Model Compatibility List $22.99 / Each

4,19,42
1 1001381 003326-00 164 1 Power Switch Yes Model Compatibility List $29.99 / Each

1 1003973 1000111750 137 Leveling Foot Leveler Yes Model Compatibility List $12.99 / Each

3
1 1000573 003326-00 164 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

1 1002368 003340-C 162 Circuit Breaker Yes Model Compatibility List $22.99 / Each

1
Rear Back Roller Set 1002235 009809-A Rear Back Roller Set Yes Model Compatibility List $69.99 / Each
Out Of Stock
Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

1 1034434 003326-00 164 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

1 4K-UYTS-4IA5 003326-00 164 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

1 971727 002500-B2 166 Control Board Power Wire Harness Black (New) Yes Model Compatibility List $15.99 / Each

1 971720 002499-B2 169 Control Board Power Wire Harness White (New) Yes Model Compatibility List $15.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

2 976932 004926-00 226 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

2 957398 005330-00 201 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

2 986316 004616-00 202 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
N 971749 003307-00 NOT SHOWN Rate Chest Strap (New) No Model Compatibility List $194.99 / Each
