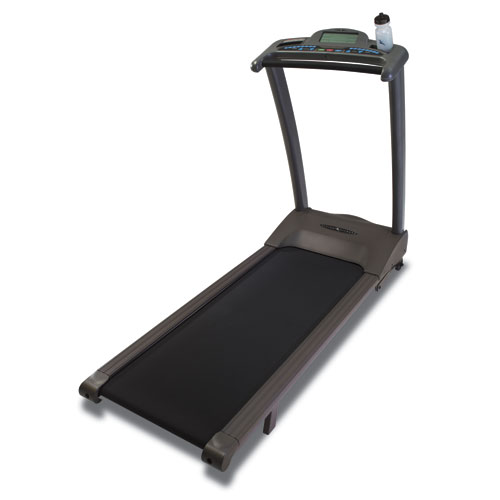

Vision Fitness - T9000 - 2002-2004

Repair Parts for Vision Fitness T9000 TM78

Brand: Vision Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T9000

Version: 2002-2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700013 000020-C2 H18 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
Elastomer;Orange;20x44L 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

Elastomer;Blue;20x44L 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

Cap;Tube;;PVC;Share D80;;;TM70 700251 000780-E B65 Cap;Tube;;PVC;Share D80;;;TM70 Yes Model Compatibility List $3.82 / Each

9,3
700291 000877-B M05 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $2.18 / Each

Bushing,;Strain Relief (SR-7R1 (110V)) 700568 001675-00 P12 Bushing,;Strain Relief (SR-7R1 (110V)) No Model Compatibility List $1.90 / Each

8
700700 001952-00 N22 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
Reed Switch 700702 001956-C N23 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black Yes Model Compatibility List $3.82 / Each

Power Cord;110V/14AWG 700749 002130-00 P10 Power Cord;110V/14AWG Yes Model Compatibility List $60.22 / Each

4,19,42
Sensor Wire;1250(OKI Magnet Reed Tube+2. 700776 002254-D2 P17 Sensor Wire;1250(OKI Magnet Reed Tube+2. Yes Model Compatibility List $25.17 / Each

3,4,5,6,8
700838 002499-B2 P38 Power Wire;Control Board;14AWG;White Yes Model Compatibility List $3.43 / Each

700840 002500-B2 P25 Power Wire;Control Board;14AWG;Black Yes Model Compatibility List $3.43 / Each

701013 003326-00 P03 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701016 003337-00 P05 Circuit Breaker;15A/125V Yes Model Compatibility List $28.73 / Each

4,5,6
701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
701253 004304-GA B36 Running Deck;571x1200x18T No Model Compatibility List $249.13 / Each

3
Screw;Umbrella Coss;M3x0.5Px10L 701284 004351-00 Q22 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL 701312 004370-00 N93 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

Screw;Phillip;BH;M5x0.8Px12L;Gap 701316 004372-00 N15 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

Screw;Phillip;BH;M5x0.8Px20L 701358 004409-00 J06 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L Yes Model Compatibility List $1.79 / Each

Screw;Hex Socket;Round;M8x1.25Px55L 701446 004488-AC Z04 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

Screw;Hex Socket;Sink;M8x1.25Px28L;Adher 701544 004571-00 B36 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

Screw;Round Hex Socket;5/16-18UNCx3/4L 701550 004577-00 M07 Screw;Round Hex Socket;5/16-18UNCx3/4L No Model Compatibility List $1.79 / Each

701561 004592-00 M05 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

701565 004597-00 H10 BOLT HH 3/8X60 PARTIAL No Model Compatibility List $0.00 / Each
Out Of Stock 		2
701585 004616-00 L10 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701597 004621-00 Q09 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701605 004627-00 N40 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

701642 004676-00 S04 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701716 004735-00 E22 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
Screw;Umbrella Hex Scoket;M8x1.25Px20L 701841 004859-00 L05 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701862 004884-00 D47 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701902 004930-00 U07 Nut;Nylon;1/4"-20UNC;Generator Axle No Model Compatibility List $2.00 / Each

2,8
701908 004934-00 M06 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

Nut;Nylon;M10x1.5P 701912 004941-00 L08 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702029 005061-00 B32 Washer;Flat;10.5x18x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702030 005062-00 B21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702040 005070-00 L10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;8.2x16.0x0.8T 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702105 005134-00 B60 Washer;Flat;8.2x14.0x1.5T;BAN; No Model Compatibility List $2.00 / Each

702160 005196-00 B12 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702313 005968-B V04 MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
702419 006719-00 NOT SHOWN Warranty Card No Model Compatibility List $1.66 / Each

1
702449 007489-00 P01 Fix Plate;Speed Sensor Yes Model Compatibility List $7.72 / Each

3
702794 009818-B AR17 Rear Roller Set - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $191.62 / Each

8
702853 012802-00 M14 Elevation Motor;110V No Model Compatibility List $354.87 / Each

10
Motor Control Board 703354 013680-DI M03 Motor Control Board Yes Model Compatibility List $479.52 / Each

1
SAFETY KEY ASSEMBLY 703373 013860-B AN6 SAFETY KEY ASSEMBLY Yes Model Compatibility List $40.14 / Each

1
703383 014066-A NOT SHOWN Hardware Pack No Model Compatibility List $96.93 / Each

4,5,6
703468 014800-00 P13 Painting;Fix Plate;BL;;;;TM19 No Model Compatibility List $9.57 / Each

3
703509 015055-AA B49 Fix Plate;Side Rail No Model Compatibility List $13.42 / Each

9,3
703793 016565-Z AR29 ROLLER FRONT No Model Compatibility List $191.62 / Each

8
Washer;Flat;10.2x25x2.0T 704192 020465-A M24 Washer;Flat;10.2x25x2.0T No Model Compatibility List $2.00 / Each

704259 021791-A NOT SHOWN MANUAL ASSEMBLY T9000/9100 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Drive Motor;2.0HP;Cambridge 704944 026570-Z1 M01 Drive Motor;2.0HP;Cambridge Yes Model Compatibility List $574.91 / Each

10
Console Cable;8 Pin;3000mm 705072 035097-AA P05 Console Cable;8 Pin;3000mm Yes Model Compatibility List $38.53 / Each

4,5,6,7,12,13,14
707809 1000095727 P15 BOLT BH M3X10 No Model Compatibility List $0.49 / Each

2
Drive Belt;Poly-V;180-J8 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

TREADMILL WAX WITH INSTRUCTIONS 729334 ZMS1000217 KIT TREADMILL WAX WITH INSTRUCTIONS No Model Compatibility List $15.18 / Each

729341 ZMS1000258 Z06 POWER CORD GROMMET No Model Compatibility List $1.90 / Each

2,4,5,6
Console Cable;6 Pin;3000mm(Used) 1012776 035097-AA-00 1 Console Cable;6 Pin;3000mm(Used) Yes Model Compatibility List $15.59 / Each

5
BOLT FH M6X40 SHOULDER (Used ONly) 1017906 022252-B # 2 BOLT FH M6X40 SHOULDER (Used ONly) No Model Compatibility List $12.99 / Each

2
Power Entry Socket Input Module 1020937 002124-B 0 1 Power Entry Socket Input Module Yes Model Compatibility List $25.99 / Each

Lower Control Board Motor Controller 1000416 013680-DI 0 1 Lower Control Board Motor Controller Yes Model Compatibility List $319.00 / Each

1
Power Cord (Used) 1000538 002130-00 0 1 Power Cord (Used) Yes Model Compatibility List $22.99 / Each

4,19,42
Power Switch 1001381 003326-00 0 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002025 1000109551 0 1 Belt Drive Yes Model Compatibility List $37.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

Lower Control Board Motor Controller 1000085 013680-DI Lower Control Board Motor Controller Yes Model Compatibility List $189.00 / Each
1
Power Entry Switch On/Off 1000573 003326-00 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

Lower Motor Controller Board 1000948 013680-DI Lower Motor Controller Board Yes Model Compatibility List $189.00 / Each

1
RPM Speed Sensor Reed Switch 1002371 002254-B RPM Speed Sensor Reed Switch Yes Model Compatibility List $14.99 / Each

4,19,42
jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

Front Roller Screw M8-1.25 1020604 004483-00 Front Roller Screw M8-1.25"x25mm Yes Model Compatibility List $11.99 / Each

Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $3.59 / Each

Power Entry On Off Switch EP212 1034434 003326-00 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

Power Switch on Off (New) 4K-UYTS-4IA5 003326-00 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Control Board Power Wire Harness Black (New) 971727 002500-B2 Control Board Power Wire Harness Black (New) Yes Model Compatibility List $15.99 / Each

Control Board Power Wire Harness White (New) 971720 002499-B2 Control Board Power Wire Harness White (New) Yes Model Compatibility List $15.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Deck screw M8X1.25PX28L (New) 911951 004571-00 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

Screw (New) 941989 004370-00 Screw (New) No Model Compatibility List $12.00 / Each

Umbrella Cross Tapped Screw 4x12L (New) 986316 004616-00 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
Rower Self Tapping Screw (New) 957090 004621-00 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
