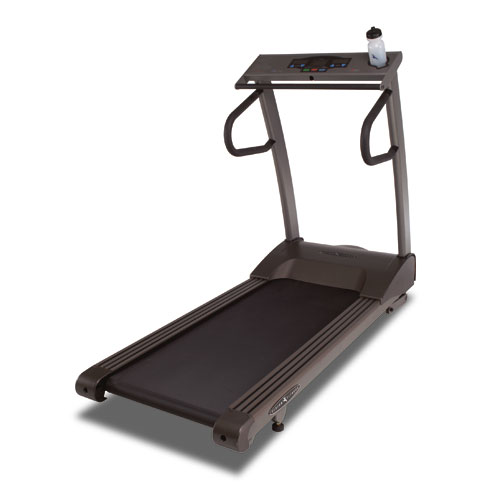

Vision Fitness - T9300 - 2002

Repair Parts for Vision Fitness T9300 TM55

Brand: Vision Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T9300

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

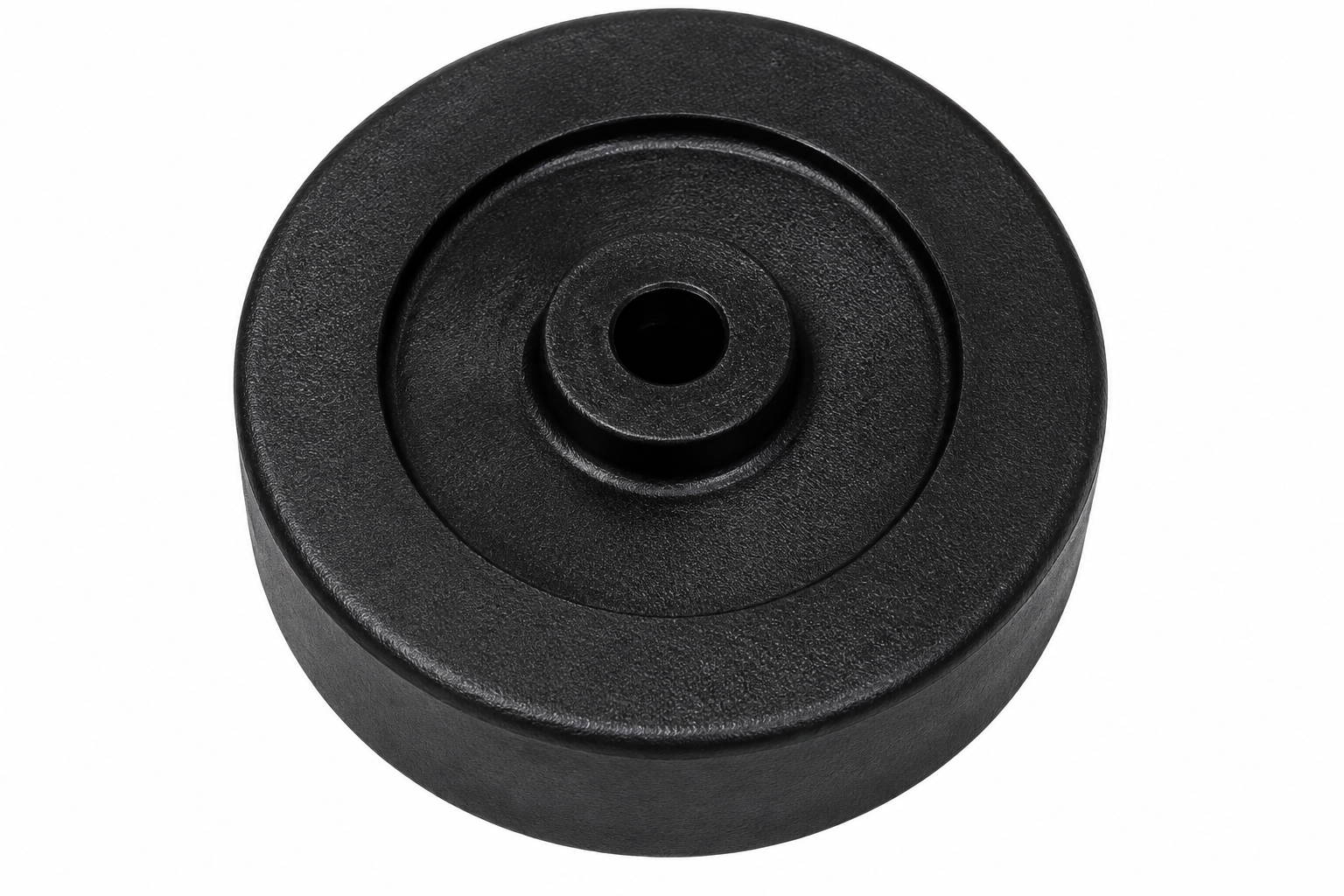

700013 000020-C2 H18 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
COVER CONSOLE MAST RIGHT 700092 000343-E Q05 COVER CONSOLE MAST RIGHT Yes Model Compatibility List $12.99 / Each

9
COVER CONSOLE MAST LEFT 700093 000344-E Q06 COVER CONSOLE MAST LEFT Yes Model Compatibility List $9.57 / Each

7,9
700240 000761-D B44 Elastomer;Yellow;12mm No Model Compatibility List $15.31 / Each

1
Elastomer;Black 90 700242 000763-E B40 Elastomer;Black 90 No Model Compatibility List $16.04 / Each

Elastomer;Blue;20x44L 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

Water Bottle Holder 700254 000785-00 N14 Water Bottle Holder Yes Model Compatibility List $8.87 / Each

1
700270 000826-00 H07 Bushings;Elevation Frame Yes Model Compatibility List $5.80 / Each

3
SLEEVE HANDLEBAR END 700534 001553-A G04 SLEEVE HANDLEBAR END Yes Model Compatibility List $7.10 / Each

3,9,11
Bushing,;Strain Relief (SR-7R1 (110V)) 700568 001675-00 P12 Bushing,;Strain Relief (SR-7R1 (110V)) No Model Compatibility List $1.90 / Each

8
700693 001858-00 M03 Motor Control Board;AC No Model Compatibility List $958.20 / Each

7,4,5,6,10
Console Safety Reed Switch;7/10 700703 001961-D2 N12 Console Safety Reed Switch;7/10 Yes Model Compatibility List $18.67 / Each

4
Power Cord;110V/14AWG 700749 002130-00 P10 Power Cord;110V/14AWG Yes Model Compatibility List $60.22 / Each

4,19,42
Sensor Wire;1250(OKI Magnet Reed Tube+2. 700776 002254-D2 P17 Sensor Wire;1250(OKI Magnet Reed Tube+2. Yes Model Compatibility List $25.17 / Each

3,4,5,6,8
700832 002464-B P04 CABLE CONSOLE JUMPER 750MM-6-PIN No Model Compatibility List $9.10 / Each

7,4,5,6,12,13,14
700838 002499-B2 P38 Power Wire;Control Board;14AWG;White Yes Model Compatibility List $3.43 / Each

700840 002500-B2 P25 Power Wire;Control Board;14AWG;Black Yes Model Compatibility List $3.43 / Each

700930 002850-A N01 OVERLAY CONSOLE T9200 No Model Compatibility List $91.23 / Each

7
700931 002851-A N01 OVERLAY T9300 No Model Compatibility List $91.23 / Each

1
700932 002852-A N01 OVERLAY PLATFORM 9400HRT/9500HRT No Model Compatibility List $91.23 / Each

7,12,13,14
700978 003129-C N05 TOUCH PAD T9200 No Model Compatibility List $36.48 / Each

12,13,14
Chest Strap;Polar;T34/T41 701008 003307-00 KIT Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

701013 003326-00 P03 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted 701018 003340-C P03 Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $37.75 / Each

1
Screw;Umbrella Coss;M3x0.5Px10L 701284 004351-00 Q22 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

Screw;Phillip;BH;M4x0.7Px10L;Gap; 701294 004359-00 M33 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

Screw;Round;Hex Socket;SH;M8X1.25PX20L 701435 004482-00 B60 Screw;Round;Hex Socket;SH;M8X1.25PX20L No Model Compatibility List $1.79 / Each

701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

Screw;Plain Hex Socket;M8x1.25Px20L 701529 004561-00 H32 Screw;Plain Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
Screw;Round Hex Socket;5/16-18UNCx3/4L 701550 004577-00 M07 Screw;Round Hex Socket;5/16-18UNCx3/4L No Model Compatibility List $1.79 / Each

701560 004591-00 H10 Screw;Hex;3/8-16UNCx75L/Tooth20L; No Model Compatibility List $4.00 / Each

2
701585 004616-00 L10 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701591 004620-00 Z31 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701642 004676-00 S04 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701646 004683-ZB M23 BOLT EB 1/4"X70 1/4"EYE PARTIAL No Model Compatibility List $3.64 / Each

2
701699 004724-00 D53 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701750 004774-00 C10 Long Handrail Button HeadScrew;Umbrella Hex Socket;M8X135L(20L) Yes Model Compatibility List $5.90 / Each

2
701897 004926-00 D34 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701902 004930-00 U07 Nut;Nylon;1/4"-20UNC;Generator Axle No Model Compatibility List $2.00 / Each

2,8
701908 004934-00 M06 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701968 005007-00 G28 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

702025 005058-00 D18 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

702030 005062-00 B21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702033 005065-00 B68 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702040 005070-00 L10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702313 005968-B V04 MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
702449 007489-00 P01 Fix Plate;Speed Sensor Yes Model Compatibility List $7.72 / Each

3
702456 007528-BX B34 Belt Guide Yes Model Compatibility List $5.98 / Each

15
Rear Roller Set 702793 009815-C AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

1
Motor Control Board 703354 013680-DI M03 Motor Control Board Yes Model Compatibility List $479.52 / Each

1
SAFETY KEY ASSEMBLY 703373 013860-B AN6 SAFETY KEY ASSEMBLY Yes Model Compatibility List $40.14 / Each

1
703468 014800-00 P13 Painting;Fix Plate;BL;;;;TM19 No Model Compatibility List $9.57 / Each

3
Motor Bracket 703498 015024-AA B18 Motor Bracket No Model Compatibility List $34.61 / Each

2,3,4,5,6,10
703507 015054-AC B25 Fix Plate;Side Rail No Model Compatibility List $1.38 / Each

9,3
703512 015075-A Q07 End Cap;Side Rail;Left Yes Model Compatibility List $33.70 / Each

9
703513 015076-A Q08 End Cap;Side Rail;Right Yes Model Compatibility List $31.20 / Each

9
Drive Motor;2.5HP;Cambridge 703782 016466-Z M01 Drive Motor;2.5HP;Cambridge Yes Model Compatibility List $574.91 / Each

28
703783 016475-Z N16 Heart Rate Receiver;Wireless No Model Compatibility List $82.89 / Each

4,5,6,12,13,14
703994 020077-00 H09 Screw;Hex Socket;Round;M12X1.75PX60L(30L) No Model Compatibility List $4.00 / Each

2
Counter Sunk Flat Head Screw;Hex Socket;M8X1.25X60L-20L;Partial 704049 020134-00 C22 Counter Sunk Flat Head Screw;Hex Socket;M8X1.25X60L-20L;Partial Yes Model Compatibility List $4.65 / Each

2
704169 020401-00 H16 Nut;Nlk;M12X1.75P No Model Compatibility List $0.83 / Each

2
704663 024694-B C02 Console Mast Set;Right No Model Compatibility List $73.58 / Each

7
704665 024697-B C02 Console Mast Set;Right No Model Compatibility List $139.91 / Each

7
704668 024769-A AH1 Elevation Rack - D/C, NO REPL: Part will show as orderable until stock is depleted Yes Model Compatibility List $86.71 / Each
Out Of Stock 		4,5,6,10
704669 024770-AC AH1 Elevation Rack No Model Compatibility List $118.33 / Each

4,5,6,10
704933 026411-Z Q01 COVER MOTOR ASSEMBLY UPPER Yes Model Compatibility List $165.70 / Each

9,3,10
REST ARM ASSEMBLY 704938 026509-Z AG1 REST ARM ASSEMBLY Yes Model Compatibility List $57.38 / Each

3
Drive Motor;2.0HP;Cambridge 704944 026570-Z1 M01 Drive Motor;2.0HP;Cambridge Yes Model Compatibility List $574.91 / Each

10
704945 026571-Z11 CNS CONSOLE ASSEMBLY TM49 PLATINUM No Model Compatibility List $1064.67 / Each

7,3
Console Cable;8 Pin;3000mm 705072 035097-AA P05 Console Cable;8 Pin;3000mm Yes Model Compatibility List $38.53 / Each

4,5,6,7,12,13,14
707809 1000095727 P15 BOLT BH M3X10 No Model Compatibility List $0.49 / Each

2
709100 1000109550 R03 Drive Belt;Poly-V;190-J8 Yes Model Compatibility List $60.22 / Each

23
Leveler 709277 1000111750 B23 Leveler Yes Model Compatibility List $4.37 / Each

3
Running Deck;605X1190LX25.4 710400 1000210086 B26 Running Deck;605X1190LX25.4 No Model Compatibility List $383.27 / Each

3
Running Belt;512X2770X1.6 710401 1000210087 R13 Running Belt;512X2770X1.6 Yes Model Compatibility List $401.52 / Each

15
Lift Motor;;110V;700lbs;6/1HP;77MM;225MM 714471 1000315168 M13 Lift Motor;;110V;700lbs;6/1HP;77MM;225MM Yes Model Compatibility List $383.27 / Each

10
Console Cable;6 Pin;3000mm(Used) 1012776 035097-AA-00 1 Console Cable;6 Pin;3000mm(Used) Yes Model Compatibility List $15.59 / Each

5
BOLT FH M6X40 SHOULDER (Used ONly) 1017906 022252-B # 2 BOLT FH M6X40 SHOULDER (Used ONly) No Model Compatibility List $12.99 / Each

2
Motor Bracket Used 1017922 024824-AA # 1 Motor Bracket Used Yes Model Compatibility List $32.49 / Each
Out Of Stock 		3
Red Elastomer Version - Used 1020890 000763-E B40 1 Red Elastomer Version - Used No Model Compatibility List $7.79 / Each

Front Drive Pulley Roller 009815-C 009815-C 0 1 Front Drive Pulley Roller Yes Model Compatibility List $206.70 / Each

1
Rail Side (Used) 1025038 001617-C 0 1 Rail Side (Used) No Model Compatibility List $50.70 / Each

1
Speed Sensor Harness + Wire 1000344 002254-B 0 1 Speed Sensor Harness + Wire No Model Compatibility List $19.99 / Each

4,19,42
Lower Control Board Motor Controller 1000416 013680-DI 0 1 Lower Control Board Motor Controller Yes Model Compatibility List $319.00 / Each

1
Power Cord (Used) 1000538 002130-00 0 1 Power Cord (Used) Yes Model Compatibility List $22.99 / Each

4,19,42
Power Switch 1001381 003326-00 0 1 Power Switch Yes Model Compatibility List $29.99 / Each

Motor Drive Assembly 1003167 016466-Z 0 1 Motor Drive Assembly Yes Model Compatibility List $429.00 / Each

28
Display Electronics (Used) 1032351 013710-BA N06 1 Display Electronics (Used) Yes Model Compatibility List $139.00 / Each
Leveling Foot Leveler 1003973 1000111750 Leveling Foot Leveler Yes Model Compatibility List $12.99 / Each

3
Lower Control Board Motor Controller 1000085 013680-DI Lower Control Board Motor Controller Yes Model Compatibility List $189.00 / Each
1
Power Entry Switch On/Off 1000573 003326-00 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

Lower Motor Controller Board 1000948 013680-DI Lower Motor Controller Board Yes Model Compatibility List $189.00 / Each

1
Motor Drive Belt 1002833 1000109550 Motor Drive Belt Yes Model Compatibility List $9.99 / Each

23
Circuit Breaker 1002368 003340-C Circuit Breaker Yes Model Compatibility List $22.99 / Each

1
Flexonic Pulley Drive Belt 1002332 1000109550 Flexonic Pulley Drive Belt Yes Model Compatibility List $34.99 / Each

23
RPM Speed Sensor Reed Switch 1002371 002254-B RPM Speed Sensor Reed Switch Yes Model Compatibility List $14.99 / Each

4,19,42
Rear Idler Roller 1001208 ‎009815-C Rear Idler Roller Yes Model Compatibility List $69.99 / Each

Treadmill walking belt 1037353 1000210087 Treadmill walking belt Yes Model Compatibility List $279.99 / Each
15
Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

Power Entry On Off Switch EP212 1034434 003326-00 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

Power Switch on Off (New) 4K-UYTS-4IA5 003326-00 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Walking Running Belt Treadbelt (New) 1021368 1000210087 Walking Running Belt Treadbelt (New) Yes Model Compatibility List $328.99 / Each

15
Control Board Power Wire Harness Black (New) 971727 002500-B2 Control Board Power Wire Harness Black (New) Yes Model Compatibility List $15.99 / Each

Control Board Power Wire Harness White (New) 971720 002499-B2 Control Board Power Wire Harness White (New) Yes Model Compatibility List $15.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Self Tapping Screw 4X12L (New) 911968 004620-00 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Nylon Lock Nut M8x1.25P (New) 976932 004926-00 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Umbrella Cross Tapped Screw 4x12L (New) 986316 004616-00 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
Rate Chest Strap (New) 971749 003307-00 Rate Chest Strap (New) No Model Compatibility List $194.99 / Each
