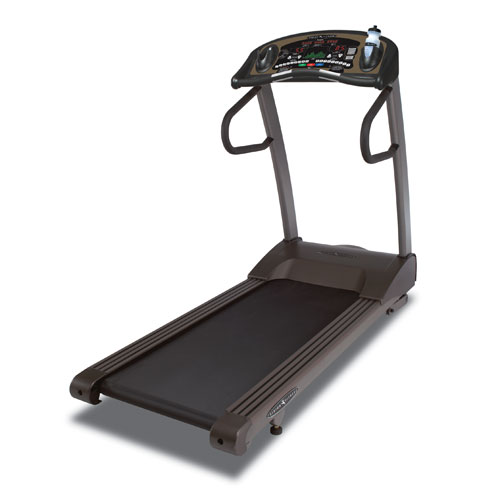

Vision Fitness - T9500 - N/A

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700013 000020-C2 H18 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
COVER CONSOLE MAST RIGHT 700092 000343-E Q05 COVER CONSOLE MAST RIGHT Yes Model Compatibility List $12.99 / Each

9
COVER CONSOLE MAST LEFT 700093 000344-E Q06 COVER CONSOLE MAST LEFT Yes Model Compatibility List $9.57 / Each

7,9
700239 000760-E B30 Elastomer;White Yes Model Compatibility List $17.34 / Each

1
700240 000761-D B44 Elastomer;Yellow;12mm No Model Compatibility List $15.31 / Each

1
Elastomer;Black 90 700242 000763-E B40 Elastomer;Black 90 No Model Compatibility List $16.04 / Each

700262 000808-B 80 Water Bottle No Model Compatibility List $9.88 / Each

1
700270 000826-00 H07 Bushings;Elevation Frame Yes Model Compatibility List $5.80 / Each

3
700288 000874-A2 H37 Rubber Stopper;AC003->TS;TM16 Yes Model Compatibility List $6.99 / Each

1
700291 000877-B M05 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $2.18 / Each

700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

SLEEVE HANDLEBAR END 700534 001553-A G04 SLEEVE HANDLEBAR END Yes Model Compatibility List $7.10 / Each

3,9,11
Bushing,;Strain Relief (SR-7R1 (110V)) 700568 001675-00 P12 Bushing,;Strain Relief (SR-7R1 (110V)) No Model Compatibility List $1.90 / Each

8
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

Power Cord;110V/14AWG 700749 002130-00 P10 Power Cord;110V/14AWG Yes Model Compatibility List $60.22 / Each

4,19,42
Sensor Wire;1250(OKI Magnet Reed Tube+2. 700776 002254-D2 P17 Sensor Wire;1250(OKI Magnet Reed Tube+2. Yes Model Compatibility List $25.17 / Each

3,4,5,6,8
700838 002499-B2 P38 Power Wire;Control Board;14AWG;White Yes Model Compatibility List $3.43 / Each

700840 002500-B2 P25 Power Wire;Control Board;14AWG;Black Yes Model Compatibility List $3.43 / Each

701013 003326-00 P03 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted 701018 003340-C P03 Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $37.75 / Each

1
701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
Motor Brush;3.0HP;Cambridge 701084 003623-00 M10 Motor Brush;3.0HP;Cambridge No Model Compatibility List $8.22 / Each

10
Drive Belt;Poly-V;190-J10 701218 004181-00 R12 Drive Belt;Poly-V;190-J10 Yes Model Compatibility List $57.49 / Each

23
Running Belt;503x2805x4.4T;Ortho 701241 004255-B R03 Running Belt;503x2805x4.4T;Ortho No Model Compatibility List $574.91 / Each

15
701283 004350-Z C55 BOLT BH M3X6 No Model Compatibility List $2.00 / Each

2
Screw;Umbrella Coss;M3x0.5Px10L 701284 004351-00 Q22 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

Screw;Phillip;BH;M5x0.8Px12L;Gap 701316 004372-00 N15 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701331 004384-00 P17 Screw;Phillip;BH;M5x0.8Px30L;Ni;Gap; No Model Compatibility List $2.00 / Each

701343 004389-00 N08 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
701379 004433-00 B64 Screw;FH;M4X0.7PX10L;CT;PH;BAN No Model Compatibility List $1.79 / Each

Screw;Hex Socket;Round;M8x1.25Px16L 701449 004493-00 U21 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
Screw;Round Hex Socket;5/16-18UNCx3/4L 701550 004577-00 M07 Screw;Round Hex Socket;5/16-18UNCx3/4L No Model Compatibility List $1.79 / Each

701560 004591-00 H10 Screw;Hex;3/8-16UNCx75L/Tooth20L; No Model Compatibility List $4.00 / Each

2
701591 004620-00 Z31 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701637 004667-00 M67 Screw;Wagon;3/8-16UNCx20L No Model Compatibility List $1.79 / Each

2
Bolt;Eye Hook; 1/4 701644 004678-00 R07 Bolt;Eye Hook; 1/4"-20UNCX55L No Model Compatibility List $1.79 / Each

701690 004719-00 C07 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
701750 004774-00 C10 Long Handrail Button HeadScrew;Umbrella Hex Socket;M8X135L(20L) Yes Model Compatibility List $5.90 / Each

2
Screw;Umbrella Hex Scoket;M8x1.25Px20L 701841 004859-00 L05 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 D34 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

Nut;Nylon;1/4 701907 004933-00 S06 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

701908 004934-00 M06 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

Nut;Nylon;M10x1.5P 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701968 005007-00 G28 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

702025 005058-00 D18 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

702030 005062-00 B21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702033 005065-00 B68 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702040 005070-00 L10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;5.3x10x1.0T;Black Zinc 702050 005078-00 I23 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

Washer;Flat;8.2x16.0x0.8T 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702313 005968-B V04 MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
702449 007489-00 P01 Fix Plate;Speed Sensor Yes Model Compatibility List $7.72 / Each

3
Rear Roller Set 702793 009815-C AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

1
702831 011179-00 F21 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2
Elevation Motor;110V 702852 012801-00 M02 Elevation Motor;110V Yes Model Compatibility List $383.27 / Each

10
703362 013732-B M02 Motor Control Board No Model Compatibility List $574.91 / Each

7,10
703468 014800-00 P13 Painting;Fix Plate;BL;;;;TM19 No Model Compatibility List $9.57 / Each

3
Motor Bracket 703497 015016-AA M05 Motor Bracket No Model Compatibility List $14.90 / Each

2,3,4,5,6,10
Fix Plate;Side Rail 703506 015054-A B72 Fix Plate;Side Rail Yes Model Compatibility List $8.53 / Each

9,3
703512 015075-A Q07 End Cap;Side Rail;Left Yes Model Compatibility List $33.70 / Each

9
703513 015076-A Q08 End Cap;Side Rail;Right Yes Model Compatibility List $31.20 / Each

9
GUIDE BELT LEFT 703828 018356-B AB6 GUIDE BELT LEFT Yes Model Compatibility List $14.01 / Each

15
703994 020077-00 H09 Screw;Hex Socket;Round;M12X1.75PX60L(30L) No Model Compatibility List $4.00 / Each

2
704017 020107-AB R21 BOLT HEX M10X50 PARTIAL No Model Compatibility List $1.40 / Each

2
704169 020401-00 H16 Nut;Nlk;M12X1.75P No Model Compatibility List $0.83 / Each

2
704608 024305-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $25.90 / Each

1
704623 024546-C AR1 Front Roller Set Yes Model Compatibility List $249.13 / Each

8
704663 024694-B C02 Console Mast Set;Right No Model Compatibility List $73.58 / Each

7
704668 024769-A AH1 Elevation Rack - D/C, NO REPL: Part will show as orderable until stock is depleted Yes Model Compatibility List $86.71 / Each
Out Of Stock
4,5,6,10
704933 026411-Z Q01 COVER MOTOR ASSEMBLY UPPER Yes Model Compatibility List $165.70 / Each

9,3,10
Drive Motor;3HP;Cambridge;Analog 704934 026412-Z M01 Drive Motor;3HP;Cambridge;Analog Yes Model Compatibility List $958.20 / Each

1
Console Cable;8 Pin;3000mm 705072 035097-AA P05 Console Cable;8 Pin;3000mm Yes Model Compatibility List $38.53 / Each

4,5,6,7,12,13,14
Leveler 709277 1000111750 B23 Leveler Yes Model Compatibility List $4.37 / Each

3
Running Deck;605X1190LX25.4 710400 1000210086 B26 Running Deck;605X1190LX25.4 No Model Compatibility List $383.27 / Each

3
Running Belt;512X2770X1.6 710401 1000210087 R13 Running Belt;512X2770X1.6 Yes Model Compatibility List $401.52 / Each

15
Console Cable;6 Pin;3000mm(Used) 1012776 035097-AA-00 1 Console Cable;6 Pin;3000mm(Used) Yes Model Compatibility List $15.59 / Each

5
Contact HR Bar (used) 1014121 026607-Z # 1 Contact HR Bar (used) Yes Model Compatibility List $115.70 / Each

3
Simple Display Console With Circuit Boards - Used Only 1014466 016335-ZUP-b 1 1 Simple Display Console With Circuit Boards - Used Only Yes Model Compatibility List $388.70 / Each
Out Of Stock
7
Simple Console Treadmill - OVERLAY ONLY 1020458 016335-ZUP COS Simple Console Treadmill - OVERLAY ONLY No Model Compatibility List $453.70 / Each

7
Power Entry Socket Input Module 1020937 002124-B 0 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

Red Elastomer Version - Used 1020890 000763-E B40 1 Red Elastomer Version - Used No Model Compatibility List $7.79 / Each

Red Deck Cushion Isolator (Used) 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $12.99 / Each

3
Front Drive Pulley Roller 009815-C 009815-C 0 1 Front Drive Pulley Roller Yes Model Compatibility List $206.70 / Each

1
Rail Side (Used) 1025038 001617-C 0 1 Rail Side (Used) No Model Compatibility List $50.70 / Each

1
Power Switch 1001381 003326-00 0 1 Power Switch Yes Model Compatibility List $29.99 / Each

Front  Roller Cover Left (Used) 1031731 016474-Z 002 1 Front Roller Cover Left (Used) No Model Compatibility List $14.99 / Each

Leveling Foot Leveler 1003973 1000111750 Leveling Foot Leveler Yes Model Compatibility List $12.99 / Each

3
Incline Motor Elevation Actuator 1003972 012801-00 Incline Motor Elevation Actuator Yes Model Compatibility List $299.00 / Each
10
Front Drive Roller 1003975 024546-C Front Drive Roller Yes Model Compatibility List $86.99 / Each

8
Power Entry Switch On/Off 1000573 003326-00 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

Display Console 1002772 016335-ZUP-b or 026607-Z Display Console Yes Model Compatibility List $218.99 / Each
Out Of Stock
Circuit Breaker 1002368 003340-C Circuit Breaker Yes Model Compatibility List $22.99 / Each

1
Rear Back Roller Set 1002235 009809-A Rear Back Roller Set Yes Model Compatibility List $69.99 / Each
Out Of Stock
Analog Drive Motor 1002230 026412-Z Analog Drive Motor Yes Model Compatibility List $299.00 / Each
Out Of Stock
1
DC 3HP Analog Drive Motor 1002859 026623-Z1 DC 3HP Analog Drive Motor Yes Model Compatibility List $390.99 / Each
Out Of Stock
Analog Drive Motor 1002231 026412-Z Analog Drive Motor Yes Model Compatibility List $1.00 / Each

1
RPM Speed Sensor Reed Switch 1002371 002254-B RPM Speed Sensor Reed Switch Yes Model Compatibility List $14.99 / Each

4,19,42
Rear Idler Roller 1001208 ‎009815-C Rear Idler Roller Yes Model Compatibility List $69.99 / Each

GUIDE BELT RIGHT 1036756 018355-B GUIDE BELT RIGHT Yes Model Compatibility List $9.00 / Each

Spring Lock Washer 10.75x17.2x2.16T (New) 701972 005010-00 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

Circuit Breaker QMB-152-11C3N-3BA (New) 1009784 003347-00 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

Power Entry On Off Switch EP212 1034434 003326-00 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

Power Switch on Off (New) 4K-UYTS-4IA5 003326-00 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Control Board Power Wire Harness Black (New) 971727 002500-B2 Control Board Power Wire Harness Black (New) Yes Model Compatibility List $15.99 / Each

Control Board Power Wire Harness White (New) 971720 002499-B2 Control Board Power Wire Harness White (New) Yes Model Compatibility List $15.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Self Tapping Screw 4X12L (New) 911968 004620-00 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Nylon Lock Nut M8x1.25P (New) 976932 004926-00 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Gear Rower Retainer Clip (New) 957398 005330-00 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
