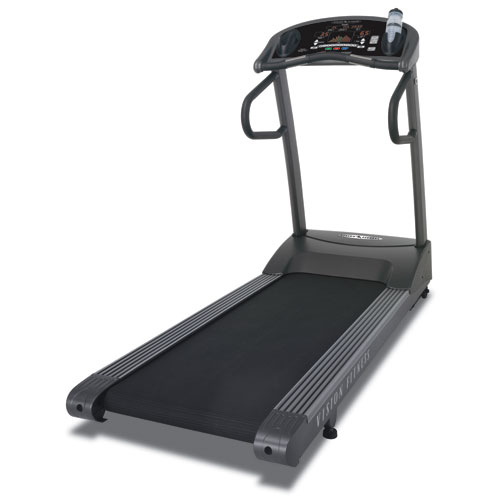

Vision Fitness - T9500 - N/A

Repair Parts for Vision Fitness T9500 TM241,TM242,TC175W

Brand: Vision Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T9500

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700013 000020-C2 H18 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
700239 000760-E B30 Elastomer;White Yes Model Compatibility List $17.34 / Each

1
700240 000761-D B44 Elastomer;Yellow;12mm No Model Compatibility List $15.31 / Each

1
Elastomer;Black 90 700242 000763-E B40 Elastomer;Black 90 No Model Compatibility List $16.04 / Each

700262 000808-B 80 Water Bottle No Model Compatibility List $9.88 / Each

1
700269 000825-AA B31 Deck Extension No Model Compatibility List $1.90 / Each

3
700270 000826-00 H07 Bushings;Elevation Frame Yes Model Compatibility List $5.80 / Each

3
700288 000874-A2 H37 Rubber Stopper;AC003->TS;TM16 Yes Model Compatibility List $6.99 / Each

1
700294 000881-B2 M05 Rubber Pad;Motor;Anti-Shake No Model Compatibility List $3.67 / Each

10,12,13,14
700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700414 001285-B2 R11 Bushing;TM42-B76B2 No Model Compatibility List $9.57 / Each

8
SLEEVE HANDLEBAR END 700534 001553-A G04 SLEEVE HANDLEBAR END Yes Model Compatibility List $7.10 / Each

3,9,11
Bushing,;Strain Relief (SR-7R1 (110V)) 700568 001675-00 P12 Bushing,;Strain Relief (SR-7R1 (110V)) No Model Compatibility List $1.90 / Each

8
Power Cord;110V/14AWG 700749 002130-00 P10 Power Cord;110V/14AWG Yes Model Compatibility List $60.22 / Each

4,19,42
Sensor Wire;1250(OKI Magnet Reed Tube+2. 700776 002254-D2 P17 Sensor Wire;1250(OKI Magnet Reed Tube+2. Yes Model Compatibility List $25.17 / Each

3,4,5,6,8
700838 002499-B2 P38 Power Wire;Control Board;14AWG;White Yes Model Compatibility List $3.43 / Each

700840 002500-B2 P25 Power Wire;Control Board;14AWG;Black Yes Model Compatibility List $3.43 / Each

701013 003326-00 P03 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted 701018 003340-C P03 Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $37.75 / Each

1
701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
Motor Brush;3.0HP;Cambridge 701084 003623-00 M10 Motor Brush;3.0HP;Cambridge No Model Compatibility List $8.22 / Each

10
701102 003830-B M25 Drive Pulley;Motor No Model Compatibility List $19.16 / Each

8,10
Drive Belt;Poly-V;200-J10 701216 004179-00 R12 Drive Belt;Poly-V;200-J10 Yes Model Compatibility List $100.36 / Each

15
701283 004350-Z C55 BOLT BH M3X6 No Model Compatibility List $2.00 / Each

2
Screw;Umbrella Coss;M3x0.5Px10L 701284 004351-00 Q22 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

Screw;Phillip;BH;M5x0.8Px12L;Gap 701316 004372-00 N15 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701331 004384-00 P17 Screw;Phillip;BH;M5x0.8Px30L;Ni;Gap; No Model Compatibility List $2.00 / Each

701343 004389-00 N08 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
701375 004425-B Z06 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

Screw;Hex Socket;Round;M8x1.25Px16L 701449 004493-00 U21 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
Screw;Round Hex Socket;5/16-18UNCx3/4L 701550 004577-00 M07 Screw;Round Hex Socket;5/16-18UNCx3/4L No Model Compatibility List $1.79 / Each

701560 004591-00 H10 Screw;Hex;3/8-16UNCx75L/Tooth20L; No Model Compatibility List $4.00 / Each

2
701561 004592-00 M05 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

701591 004620-00 Z31 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701612 004631-00 Q08 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701637 004667-00 M67 Screw;Wagon;3/8-16UNCx20L No Model Compatibility List $1.79 / Each

2
Bolt;Eye Hook; 1/4 701644 004678-00 R07 Bolt;Eye Hook; 1/4"-20UNCX55L No Model Compatibility List $1.79 / Each

701690 004719-00 C07 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
701750 004774-00 C10 Long Handrail Button HeadScrew;Umbrella Hex Socket;M8X135L(20L) Yes Model Compatibility List $5.90 / Each

2
Screw;Umbrella Hex Scoket;M8x1.25Px20L 701841 004859-00 L05 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Nut;Hex;3/8-16UNC 701864 004887-00 B25 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 D34 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701902 004930-00 U07 Nut;Nylon;1/4"-20UNC;Generator Axle No Model Compatibility List $2.00 / Each

2,8
701908 004934-00 M06 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

Nut;Nylon;M10x1.5P 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701968 005007-00 G28 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

702025 005058-00 D18 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

702030 005062-00 B21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702033 005065-00 B68 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702040 005070-00 L10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;5.3x10x1.0T;Black Zinc 702050 005078-00 I23 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

Washer;Flat;8.2x16.0x0.8T 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

Washer;Flat;10.5x20.0x2.0T;Black Zinc 702122 005146-AB Z02 Washer;Flat;10.5x20.0x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

702160 005196-00 B12 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702456 007528-BX B34 Belt Guide Yes Model Compatibility List $5.98 / Each

15
702831 011179-00 F21 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2
Elevation Motor;110V 702852 012801-00 M02 Elevation Motor;110V Yes Model Compatibility List $383.27 / Each

10
703362 013732-B M02 Motor Control Board No Model Compatibility List $574.91 / Each

7,10
703443 014686-C AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
703468 014800-00 P13 Painting;Fix Plate;BL;;;;TM19 No Model Compatibility List $9.57 / Each

3
703508 015054-AD B72 Fix Plate;Side Rail No Model Compatibility List $2.44 / Each

9,3
GUIDE BELT LEFT 703828 018356-B AB6 GUIDE BELT LEFT Yes Model Compatibility List $14.01 / Each

15
703994 020077-00 H09 Screw;Hex Socket;Round;M12X1.75PX60L(30L) No Model Compatibility List $4.00 / Each

2
Counter Sunk Flat Head Screw;Hex Socket;M8X1.25X60L-20L;Partial 704049 020134-00 C22 Counter Sunk Flat Head Screw;Hex Socket;M8X1.25X60L-20L;Partial Yes Model Compatibility List $4.65 / Each

2
704169 020401-00 H16 Nut;Nlk;M12X1.75P No Model Compatibility List $0.83 / Each

2
704608 024305-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $25.90 / Each

1
704623 024546-C AR1 Front Roller Set Yes Model Compatibility List $249.13 / Each

8
Drive Motor;3HP;Cambridge;Analog 704934 026412-Z M01 Drive Motor;3HP;Cambridge;Analog Yes Model Compatibility List $958.20 / Each

1
HANDLEBAR ASSEMBLY 704946 026574-Z AG1 HANDLEBAR ASSEMBLY Yes Model Compatibility List $58.76 / Each

3,11
Console Cable;8 Pin;3000mm 705072 035097-AA P05 Console Cable;8 Pin;3000mm Yes Model Compatibility List $38.53 / Each

4,5,6,7,12,13,14
705115 037769-AB AH1 Elevation Rack D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $89.91 / Each

4,5,6,10
705327 047111-AB M06 BRACKET MOTOR No Model Compatibility List $19.08 / Each

2,3,4,5,6,10
705353 048928-AA Q05 SLEEVE MAST CONSOLE No Model Compatibility List $9.57 / Each

7,3
705433 049155-BA Q02 SIDE RAIL No Model Compatibility List $75.76 / Each

9
705592 051806-ACX Q01 Motor Cover;Back Half No Model Compatibility List $82.81 / Each

9,4,5,6,10
END CAP SIDE RAIL LEFT 705593 051807-ACX Q07 END CAP SIDE RAIL LEFT Yes Model Compatibility List $37.83 / Each

9
END CAP SIDE RAIL RIGHT 705594 051808-ACX Q08 END CAP SIDE RAIL RIGHT Yes Model Compatibility List $37.83 / Each

9
705596 051809-ADX Q13 COVER MOTOR FRONT W/DECAL No Model Compatibility List $83.59 / Each

7,9,3,10
706655 064226-AX V02 DECAL COVER MOTOR VF No Model Compatibility List $71.06 / Each

7,9,3,10
Leveler 709277 1000111750 B23 Leveler Yes Model Compatibility List $4.37 / Each

3
709397 1000114067 V58 DECAL SIDE FRAME No Model Compatibility List $26.08 / Each

7,3
710402 1000210088 B26 DECK RUNNING 605X1265X25.4 No Model Compatibility List $287.46 / Each

3
Running Belt;503X2942X4.4;Ortho 710403 1000210089 R03 Running Belt;503X2942X4.4;Ortho No Model Compatibility List $574.91 / Each

15
Console Cable;6 Pin;3000mm(Used) 1012776 035097-AA-00 1 Console Cable;6 Pin;3000mm(Used) Yes Model Compatibility List $15.59 / Each

5
Contact HR Bar (used) 1014121 026607-Z # 1 Contact HR Bar (used) Yes Model Compatibility List $115.70 / Each

3
SIMPLE ELECTRONICS CIRCUITBOARD - DISPLAY CONSOLE 1020585 057764-aax 0 1 SIMPLE ELECTRONICS CIRCUITBOARD - DISPLAY CONSOLE No Model Compatibility List $258.70 / Each

7
Red Elastomer Version - Used 1020890 000763-E B40 1 Red Elastomer Version - Used No Model Compatibility List $7.79 / Each

Red Deck Cushion Isolator (Used) 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $12.99 / Each

3
Power Switch 1001381 003326-00 0 1 Power Switch Yes Model Compatibility List $29.99 / Each

Leveling Foot Leveler 1003973 1000111750 Leveling Foot Leveler Yes Model Compatibility List $12.99 / Each

3
Incline Motor Elevation Actuator 1003972 012801-00 Incline Motor Elevation Actuator Yes Model Compatibility List $299.00 / Each
10
Front Drive Roller 1003975 024546-C Front Drive Roller Yes Model Compatibility List $86.99 / Each

8
Power Entry Switch On/Off 1000573 003326-00 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

Circuit Breaker 1002368 003340-C Circuit Breaker Yes Model Compatibility List $22.99 / Each

1
Rear Back Roller Set 1002235 009809-A Rear Back Roller Set Yes Model Compatibility List $69.99 / Each
Out Of Stock
Analog Drive Motor 1002230 026412-Z Analog Drive Motor Yes Model Compatibility List $299.00 / Each
Out Of Stock 		1
DC 3HP Analog Drive Motor 1002859 026623-Z1 DC 3HP Analog Drive Motor Yes Model Compatibility List $390.99 / Each
Out Of Stock
Analog Drive Motor 1002231 026412-Z Analog Drive Motor Yes Model Compatibility List $1.00 / Each

1
RPM Speed Sensor Reed Switch 1002371 002254-B RPM Speed Sensor Reed Switch Yes Model Compatibility List $14.99 / Each

4,19,42
GUIDE BELT RIGHT 1036756 018355-B GUIDE BELT RIGHT Yes Model Compatibility List $9.00 / Each

Spring Lock Washer 10.75x17.2x2.16T (New) 701972 005010-00 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

Front Roller Screw M8-1.25 1020604 004483-00 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

Circuit Breaker QMB-152-11C3N-3BA (New) 1009784 003347-00 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

Power Entry On Off Switch EP212 1034434 003326-00 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

Power Switch on Off (New) 4K-UYTS-4IA5 003326-00 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Control Board Power Wire Harness Black (New) 971727 002500-B2 Control Board Power Wire Harness Black (New) Yes Model Compatibility List $15.99 / Each

Control Board Power Wire Harness White (New) 971720 002499-B2 Control Board Power Wire Harness White (New) Yes Model Compatibility List $15.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Self Tapping Screw 4X12L (New) 911968 004620-00 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Nylon Lock Nut M8x1.25P (New) 976932 004926-00 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Gear Rower Retainer Clip (New) 957398 005330-00 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
