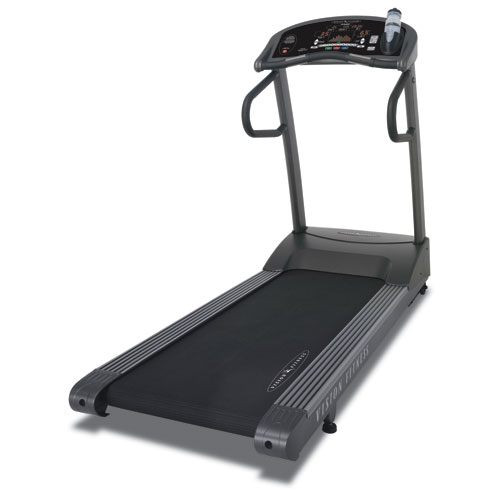

Vision Fitness - T9700S - 2007

Repair Parts for Vision Fitness T9700S TC183W,TM243

Brand: Vision Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T9700S

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700013 000020-C2 L01 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
B 700242 000763-E B46 Elastomer;Black 90 No Model Compatibility List $16.04 / Each

700262 000808-B NOT SHOWN Water Bottle No Model Compatibility List $9.88 / Each

1
700270 000826-00 H09 Bushings;Elevation Frame Yes Model Compatibility List $5.80 / Each

3
700288 000874-A2 H21 Rubber Stopper;AC003->TS;TM16 Yes Model Compatibility List $6.99 / Each

1
700291 000877-B M05 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $2.18 / Each

700402 001251-F B25 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700414 001285-B2 R20 Bushing;TM42-B76B2 No Model Compatibility List $9.57 / Each

8
G 700534 001553-A G04 SLEEVE HANDLEBAR END Yes Model Compatibility List $7.10 / Each

3,9,11
P 700568 001675-00 P14 Bushing,;Strain Relief (SR-7R1 (110V)) No Model Compatibility List $1.90 / Each

8
700713 002014-E2 P04 RIBBON CABLE No Model Compatibility List $44.85 / Each

4,5,6
P 700749 002130-00 P21 Power Cord;110V/14AWG Yes Model Compatibility List $60.22 / Each

4,19,42
P 700776 002254-D2 P16 Sensor Wire;1250(OKI Magnet Reed Tube+2. Yes Model Compatibility List $25.17 / Each

3,4,5,6,8
700838 002499-B2 P09 Power Wire;Control Board;14AWG;White Yes Model Compatibility List $3.43 / Each

700840 002500-B2 P08 Power Wire;Control Board;14AWG;Black Yes Model Compatibility List $3.43 / Each

701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

P 701018 003340-C P03 Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $37.75 / Each

1
R 701043 003414-00 R17 Magnet; 10X5 No Model Compatibility List $1.79 / Each

N 701084 003623-00 NOT SHOWN Motor Brush;3.0HP;Cambridge No Model Compatibility List $8.22 / Each

10
701102 003830-B M07 Drive Pulley;Motor No Model Compatibility List $19.16 / Each

8,10
U 701159 004077-A2 U08 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

R 701216 004179-00 R12 Drive Belt;Poly-V;200-J10 Yes Model Compatibility List $100.36 / Each

15
701283 004350-Z P52 BOLT BH M3X6 No Model Compatibility List $2.00 / Each

2
P 701284 004351-00 P15 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

Q 701316 004372-00 Q22 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701319 004374-ZAC M22 Screw;BH;M5X0.8X10 No Model Compatibility List $2.00 / Each

2
701331 004384-00 B34 Screw;Phillip;BH;M5x0.8Px30L;Ni;Gap; No Model Compatibility List $2.00 / Each

701375 004425-B B33 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

U 701406 004460-00 U22 Screw;Round;Hex Socket;M6X1.0PX20L No Model Compatibility List $1.66 / Each

U 701418 004468-00 U04 Screw;Hex Socket;Round;M6x1.0Px25L;;Zn-B No Model Compatibility List $1.79 / Each

N 701449 004493-00 N45 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

701451 004496-00 R14 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701454 004502-00 M19 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

701485 004529-ZAC B51 BOLT SH M10X40 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
H 701504 004539-AC H18 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

701530 004562-00 B37 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
701561 004592-00 M18 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

701591 004620-00 B31 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701642 004676-00 U17 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
M 701645 004682-00 M10 Bolt;Eye Hook;1/4"-20UNCx70L-10 No Model Compatibility List $1.79 / Each

B 701695 004721-00 B45 Screw;Hex Socket;BH;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
701750 004774-00 G05 Long Handrail Button HeadScrew;Umbrella Hex Socket;M8X135L(20L) Yes Model Compatibility List $5.90 / Each

2
C 701841 004859-00 C04 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701862 004884-00 U14 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 B35 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 B36 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701902 004930-00 M15 Nut;Nylon;1/4"-20UNC;Generator Axle No Model Compatibility List $2.00 / Each

2,8
701908 004934-00 M17 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

L 701912 004941-00 L03 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701961 005004-00 U05 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

701964 005005-00 M21 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701968 005007-00 H16 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

702018 005053-00 M20 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
702025 005058-00 H13 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

702030 005062-00 R15 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702033 005065-00 H10 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702040 005070-00 M14 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
U 702046 005075-00 U06 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

B 702050 005078-00 B32 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702160 005196-00 M28 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702217 005330-00 B30 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702321 006038-AX V02 DECAL MODEL T9700 No Model Compatibility List $47.37 / Each

7,3
702449 007489-00 B41 Fix Plate;Speed Sensor Yes Model Compatibility List $7.72 / Each

3
U 702524 008452-B U12 Stopper;Idler;;SPC;5.0t;;;JW01 SPC No Model Compatibility List $9.75 / Each

8
B 702715 009359-A B49 Washer;Grip;SS41 No Model Compatibility List $4.00 / Each

2,11
R 702792 009802-C R18 Front Roller Set Yes Model Compatibility List $227.66 / Each

8
702831 011179-00 H20 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2
U 703445 014696-E U03 Idler Assembly Yes Model Compatibility List $245.75 / Each

3,8
703468 014800-00 P13 Painting;Fix Plate;BL;;;;TM19 No Model Compatibility List $9.57 / Each

3
703495 015015-A M06 Motor Bracket No Model Compatibility List $32.08 / Each

2,3,4,5,6,10
703507 015054-AC B28 Fix Plate;Side Rail No Model Compatibility List $1.38 / Each

9,3
703811 017671-A H08 BLOCK INCLINE No Model Compatibility List $28.42 / Each

10
703849 018630-A U06 Spring;Extend;3.0X23.6X66.0LX11N;SWPB;OIL No Model Compatibility List $43.97 / Each

2,9
703994 020077-00 H17 Screw;Hex Socket;Round;M12X1.75PX60L(30L) No Model Compatibility List $4.00 / Each

2
C 704049 020134-00 C03 Counter Sunk Flat Head Screw;Hex Socket;M8X1.25X60L-20L;Partial Yes Model Compatibility List $4.65 / Each

2
H 704060 020156-00 H15 Bolt;HH;3/8X80L;Partial No Model Compatibility List $1.92 / Each

2
704094 020219-00 M27 Screw;CB;3/8-16UNCx25L;Black Zinc No Model Compatibility List $1.20 / Each

2,4,5,6
M 704097 020236-A M13 Bolt;Eye Hook;1/4"-20UNCx35L;Black Zinc No Model Compatibility List $4.00 / Each

2,4,5,6
704169 020401-00 H14 Nut;Nlk;M12X1.75P No Model Compatibility List $0.83 / Each

2
H 704174 020423-A H11 Washer;Lock;M10.2X19X2T No Model Compatibility List $2.00 / Each

704608 024305-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $25.90 / Each

1
704624 024558-A AG03/AG04 Handrail Assembly;Medical No Model Compatibility List $187.82 / Each

9,3
704661 024675-B C01 Console Mast Set;Left No Model Compatibility List $133.85 / Each

7
704664 024695-B C02 Console Mast Set;Right No Model Compatibility List $133.85 / Each

7
704669 024770-AC AH1 Elevation Rack No Model Compatibility List $118.33 / Each

4,5,6,10
M 704934 026412-Z M01 Drive Motor;3HP;Cambridge;Analog Yes Model Compatibility List $958.20 / Each

1
M 705039 032560-00 M03 Elevation Motor;110V Yes Model Compatibility List $383.27 / Each

10
705353 048928-AA Q05 SLEEVE MAST CONSOLE No Model Compatibility List $9.57 / Each

7,3
705435 049157-AC Q02 Side Rail;SL/GY;PVC L=1329.5mm;TM243; No Model Compatibility List $42.15 / Each
Out Of Stock 		9
705592 051806-ACX Q01 Motor Cover;Back Half No Model Compatibility List $82.81 / Each

9,4,5,6,10
Q 705593 051807-ACX Q07 END CAP SIDE RAIL LEFT Yes Model Compatibility List $37.83 / Each

9
Q 705594 051808-ACX Q08 END CAP SIDE RAIL RIGHT Yes Model Compatibility List $37.83 / Each

9
705595 051809-ABX Q03 FRONT MOTOR COVER, WITH DECAL No Model Compatibility List $94.64 / Each

7,9,3,10
706312 061162-AC B50 Screw;Hex Socket;Sink;M8x1.25Px40L No Model Compatibility List $4.00 / Each

2
706654 064225-AX V01 Decal;Vision Fitness No Model Compatibility List $47.37 / Each

7,3
707003 068202-A U15 Screw;Set;M8x1.25Px35L;-;-;-;BOX;-;-; No Model Compatibility List $2.57 / Each

2
707021 068433-A Q04 Screw;BH;M5x0.8Px15L No Model Compatibility List $2.42 / Each

2
B 709277 1000111750 B24 Leveler Yes Model Compatibility List $4.37 / Each

3
709399 1000114069 V30 Decal;Frame Side No Model Compatibility List $37.93 / Each

7,3
710396 1000210082 B22 DECK RUNNING 605X1350X25.4 No Model Compatibility List $501.90 / Each

3
R 710397 1000210083 R13 BELT RUNNING 503X3110X2.3t Yes Model Compatibility List $702.68 / Each

15
M 724007 1000414095 M02 Lower Control Set;Semi-Assy;;;ASM-MEA9J- Yes Model Compatibility List $844.97 / Each

7
N 725210 102733 NOT SHOWN Ground Wire;Lower Board to Frame;200(4.2-5.0);16AWG GN/YL No Model Compatibility List $1.90 / Each

727433 089165 B37 Clip Nut;Attached Plate;Elastomer;SPCC;1.6t;Zn Pl No Model Compatibility List $3.64 / Each

Elastomer Set;Running Deck;Front;T5x-02; 727470 0000089487 2 Elastomer Set;Running Deck;Front;T5x-02; Yes Model Compatibility List $32.55 / Each

727471 0000089488 3 Elastomer Set;Running Deck;Middle;T5x-02 Yes Model Compatibility List $29.95 / Each

Controller Dual Inline Connector MEF1J (Refurbished) 1002321-R 013738-A Controller Dual Inline Connector MEF1J (Refurbished) Yes Model Compatibility List $453.70 / Each

7
B 1020890 000763-E B46 1 Red Elastomer Version - Used No Model Compatibility List $7.79 / Each

Pulse Bar Circuit Board - Heart Rate - Used 1021165 E313065 0 1 Pulse Bar Circuit Board - Heart Rate - Used Yes Model Compatibility List $25.99 / Each

7
Walking Belt (Used) 1025385 004236-C R13 1 Walking Belt (Used) No Model Compatibility List $151.31 / Each

23
R 1000268 004179-00 R12 1 Drive Motor Main Belt 20 Inches Yes Model Compatibility List $54.99 / Each

15
Speed Sensor Harness + Wire 1000344 002254-B 0 1 Speed Sensor Harness + Wire No Model Compatibility List $19.99 / Each

4,19,42
P 1000538 002130-00 P21 1 Power Cord (Used) Yes Model Compatibility List $22.99 / Each

4,19,42
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

B 1003973 1000111750 B24 Leveling Foot Leveler Yes Model Compatibility List $12.99 / Each

3
P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

R 1002366 009802-C R18 Front Drive Roller Set Yes Model Compatibility List $51.99 / Each

8
M 1002326 032560-00 M03 Incline Elevation Motor Yes Model Compatibility List $99.00 / Each

10
P 1002368 003340-C P03 Circuit Breaker Yes Model Compatibility List $22.99 / Each

1
M 1002327 032560-00 M03 Incline Elevation Motor Yes Model Compatibility List $149.00 / Each

10
M 1002230 026412-Z M01 Analog Drive Motor Yes Model Compatibility List $299.00 / Each
Out Of Stock 		1
DC 3HP Analog Drive Motor 1002859 026623-Z1 DC 3HP Analog Drive Motor Yes Model Compatibility List $390.99 / Each
Out Of Stock
M 1002231 026412-Z M01 Analog Drive Motor Yes Model Compatibility List $1.00 / Each

1
RPM Speed Sensor Reed Switch 1002371 002254-B RPM Speed Sensor Reed Switch Yes Model Compatibility List $14.99 / Each

4,19,42
R 1037153 1000210083 R13 Treadbelt Yes Model Compatibility List $118.50 / Each

15
Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Treadmill walking belt 1025385 004236-C Treadmill walking belt Yes Model Compatibility List $489.90 / Each

23
P 971727 002500-B2 P08 Control Board Power Wire Harness Black (New) Yes Model Compatibility List $15.99 / Each

P 971720 002499-B2 P09 Control Board Power Wire Harness White (New) Yes Model Compatibility List $15.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

B 911968 004620-00 B31 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

B 976932 004926-00 B36 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B30 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
