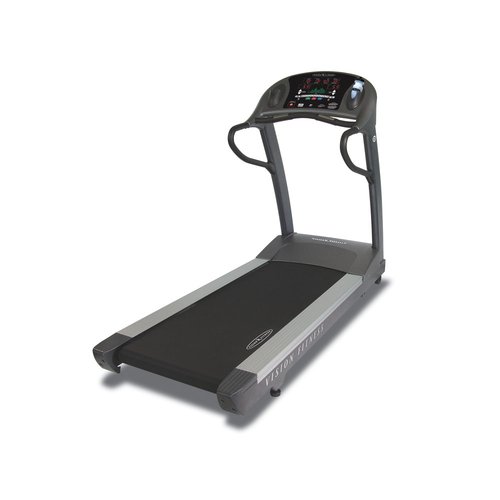

Vision Fitness - T9800HRT - 2007

Repair Parts for Vision Fitness T9800HRT CVTM0031

Brand: Vision Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T9800HRT

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700024 000041-AA L01 Transport Wheel Yes Model Compatibility List $9.10 / Each

B 700242 000763-E B32 Elastomer;Black 90 No Model Compatibility List $16.04 / Each

700264 000820-E2 B36 Deck Extension;Right No Model Compatibility List $1.90 / Each

700265 000821-E2 B37 Deck Extension;Left No Model Compatibility List $1.90 / Each

700270 000826-00 H10 Bushings;Elevation Frame Yes Model Compatibility List $5.80 / Each

3
700288 000874-A2 H09 Rubber Stopper;AC003->TS;TM16 Yes Model Compatibility List $6.99 / Each

1
700289 000874-AZ H09 BUMPER BLOCK RUBBER No Model Compatibility List $0.00 / Each
Out Of Stock 		1
700296 000885-C M08 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $16.74 / Each

B 700403 001253-FA B30 FIXING BLOCK SIDE RAIL Yes Model Compatibility List $14.01 / Each

9
M 700417 001295-B M76 Insulating Sleeve;Screw;ABS 10.2X14/24X7L No Model Compatibility List $1.79 / Each

U 700498 001514-B U23 Elastomer Pad;Aperture Cap;JW01 No Model Compatibility List $1.66 / Each

9,12,13,14
Q 700556 001603-BA Q06 SLEEVE HAND RAIL Yes Model Compatibility List $11.93 / Each

3,9
P 700736 002076-C P01 Console Cable;1900L;20-Pin Yes Model Compatibility List $127.74 / Each

4,5,6,7,12,13,14
700747 002127-A P03 BS Wire;60L;12AWG;Black;TM86; No Model Compatibility List $1.79 / Each

700814 002391-A P14 Ground Wire;EMI Filter; W/FERRITE 160L Yes Model Compatibility List $3.64 / Each

P 700816 002393-A P12 Power Wire;With Ferrite;80L Yes Model Compatibility List $37.52 / Each

4,5,6
P 700853 002521-D P02 WIRE POWER LOWER BOARD 350L Yes Model Compatibility List $38.14 / Each

4,5,6
P 700858 002551-B P04 Fan Extended Wire;100L;(ALEX-9357-03S+H7725R- No Model Compatibility List $8.42 / Each

8,9,4,5,6
P 700894 002676-A P16 Ground Wire;Console;100 Green Line YW St 100(5.0 TERMINAL+1.58-1P*M BASE) No Model Compatibility List $3.35 / Each

7,3,4,5,6
P 701015 003336-A P08 Power Switch;RF-1004;20A/125V Yes Model Compatibility List $27.35 / Each

4,5,6
P 701021 003347-00 P09 Circuit Breaker;Current;ZE-700 20A/250V; Yes Model Compatibility List $28.73 / Each

P 701028 003372-B P07 POWER SOCKET Yes Model Compatibility List $38.51 / Each
Out Of Stock 		4,5,6
P 701060 003533-BA P15 Cooling Fan;Lower Control Board;110V;TM35-P08B; 110V No Model Compatibility List $78.31 / Each

7,8
701280 004349-A P54 BOLT BH M3X25 ZNC No Model Compatibility List $1.22 / Each

2
M 701316 004372-00 M57 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

M 701332 004385-00 M57 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

M 701358 004409-00 M71 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

701362 004411-AB Z41 BOLT BH M4X20 NKL No Model Compatibility List $1.79 / Each

701408 004462-00 B51 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

Z 701413 004463-00 Z32 Screw;Hex Socket;Round;M6x1.0Px16L No Model Compatibility List $1.79 / Each

701430 004479-00 Z11 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

701432 004480-Z Q53 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

G 701449 004493-00 G51 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

701451 004496-00 R43 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701481 004527-AC R45 Screw;Round;Hex Socket;M8x1.25Px35L No Model Compatibility List $1.79 / Each

701530 004562-00 B53 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
701591 004620-00 B56 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701596 004620-ZAF B56 BOLT BH M4X12 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
701637 004667-00 M53 Screw;Wagon;3/8-16UNCx20L No Model Compatibility List $1.79 / Each

2
701640 004674-00 M53 BOLT CB 3/8X25 No Model Compatibility List $0.52 / Each

2
Z 701652 004693-00 Z31 Screw;Hex Socket;M8x1.25Px15L No Model Compatibility List $1.79 / Each

701665 004699-AB Z31 BOLT FH M8X15 No Model Compatibility List $0.65 / Each

2
701699 004724-00 B59 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701731 004757-00 L50 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

701844 004860-AB M70 Screw;BH;M4X0.7X8L;Oversize No Model Compatibility List $2.00 / Each

2
701862 004884-00 U24 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 M72 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 B52 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

U 701904 004931-00 U18 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

U 701907 004933-00 U18 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

701908 004934-00 M54 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701944 004979-00 B57 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

701961 005004-00 U21 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

L 702004 005042-00 L51 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

702007 005044-00 R46 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

R 702037 005067-00 R44 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702046 005075-00 U20 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702067 005096-Z Z34 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
702101 005131-Z Z14 Washer;Flat;10.5x18x2T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
702120 005145-ZA G50 Washer;Flat;8.2x19x2.0T No Model Compatibility List $1.79 / Each

2
B 702128 005155-A B58 Washer;Flat;6.2x12.0x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

702145 005177-00 M73 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

702178 005220-00 L52 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

H 702189 005232-A H14 Washer;Wavy;12.7x18x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702328 006128-A V06 DECAL SIDE FRAME VF No Model Compatibility List $45.42 / Each

7,3
702422 006774-A NOT SHOWN Owners Manual No Model Compatibility List $17.03 / Each

1
702454 007525-DX B38 GUIDE BELT No Model Compatibility List $8.71 / Each

15
U 702524 008452-B U22 Stopper;Idler;;SPC;5.0t;;;JW01 SPC No Model Compatibility List $9.75 / Each

8
H 702564 008652-A H11 Pin;Hairpin Cotter;2x33L;ZNC No Model Compatibility List $1.79 / Each

702565 008653-C H07 PIN M12X65 No Model Compatibility List $10.30 / Each

12,13,14
B 702715 009359-A B35 Washer;Grip;SS41 No Model Compatibility List $4.00 / Each

2,11
702776 009653-E Q05 Side Rail No Model Compatibility List $263.48 / Each

9
M 702858 012862-00 M56 Speed Sensor Set No Model Compatibility List $42.72 / Each
Out Of Stock 		1
702872 013003-A JM13 Elevation Motor;110V Yes Model Compatibility List $365.01 / Each

10
J 703361 013730-AX JD07 Motor Control Board Yes Model Compatibility List $1298.70 / Each

7,10
703394 014112-BX NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $19.99 / Each

1
703395 014115-AX NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $7.10 / Each

1
A 703398 014123-F AR1 Front Roller Set Yes Model Compatibility List $365.01 / Each

8
A 703399 014124-D AR2 Rear Roller Set Yes Model Compatibility List $365.01 / Each

8
703444 014695-A MED Handrail Set;Medical No Model Compatibility List $677.77 / Each

9,3
703446 014703-B TSW Idler Assembly No Model Compatibility List $209.61 / Each

8,3
703483 014936-AA AH1 Elevation Frame Set No Model Compatibility List $362.93 / Each

3,10
Q 703532 015147-AA Q03 End Cap;Side Rail;Left Yes Model Compatibility List $97.34 / Each

9
Q 703533 015148-AA Q04 End Cap;Side Rail;Right Yes Model Compatibility List $97.34 / Each

9
703847 018624-AB U25 Screw;Settle;M8x1.25Px35L; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
703849 018630-A U06 Spring;Extend;3.0X23.6X66.0LX11N;SWPB;OIL No Model Compatibility List $43.97 / Each

2,9
Z 704128 020294-ABX Z12 Screw;BH;M10x1.5Px20L;Chromed No Model Compatibility List $0.99 / Each

704213 020485-Z Z33 Washer;Arc;SP;6X16X2 No Model Compatibility List $2.00 / Each

2
704960 026765-ZL AC1 MAST CONSOLE LEFT No Model Compatibility List $344.42 / Each

7
704961 026765-ZR AC2 MAST CONSOLE RIGHT No Model Compatibility List $344.42 / Each

7
704962 026766-Z Q01 COVER MOTOR No Model Compatibility List $347.36 / Each

9,10
704963 026767-Z G01 HANDLEBAR ASSEMBLY No Model Compatibility List $126.59 / Each

3,11
M 704965 026770-Z M01 Drive Motor Set;5.0HP;Cambridge Yes Model Compatibility List $912.57 / Each

10
705005 029011-A P16 WIRE GROUND EMI No Model Compatibility List $31.43 / Each

4,5,6
N 705140 038118-A NOT SHOWN Ground Wire;Motor;240L;(KST RVS3-5)x2;TM No Model Compatibility List $9.41 / Each

P 705159 038410-A P22 CABLE TV 1400 Yes Model Compatibility List $20.02 / Each

4,5,6
706312 061162-AC B41 Screw;Hex Socket;Sink;M8x1.25Px40L No Model Compatibility List $4.00 / Each

2
706754 065248-A P57 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

H 706988 067951-AA H13 End-Cap;45x45x2.5t(BL);TM68-H53A; No Model Compatibility List $1.66 / Each

710092 1000206754 B31 DECK RUNNING 650X1375X25.4 No Model Compatibility List $479.10 / Each

3
M 710578 1000211092 M09 FILTER;20A;125/250V;ROHS;-; Yes Model Compatibility List $167.23 / Each

R 710742 1000213076 R40 BELT RUNNING 558x3270x1.4 Yes Model Compatibility List $702.68 / Each
15
R 716932 1000340397 R42 Belt;POLY-V;;250-J12;Halftone;GATES Yes Model Compatibility List $100.36 / Each

P 719169 1000356655 P10 External PWR Wire Set;10 feet;;;;;;US;TM526; Yes Model Compatibility List $102.93 / Each

725519 072568 V02 Decal; Side Cover No Model Compatibility List $29.02 / Each

WIRE POWER TV 1700 726169 0000080564 P19 WIRE POWER TV 1700 Yes Model Compatibility List $17.50 / Each

WIRE POWER TV 120 726457 0000081864 P20 WIRE POWER TV 120 Yes Model Compatibility List $11.02 / Each

726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.79 / Each

726660 083877 B25 PLATE STOP RAIL SIDE LEFT No Model Compatibility List $10.95 / Each

726661 083878 B26 PLATE STOP RAIL SIDE RIGHT No Model Compatibility List $10.95 / Each

726827 085363 H10 Washer;Flat;8.2X16.0X1.6T;Zinc No Model Compatibility List $1.79 / Each

726889 085811 B40 FIXING BASE POWER SWITCH No Model Compatibility List $23.43 / Each

Elastomer Set;Running Deck;Front;T5x-02; 727470 0000089487 2 Elastomer Set;Running Deck;Front;T5x-02; Yes Model Compatibility List $32.55 / Each

727471 0000089488 3 Elastomer Set;Running Deck;Middle;T5x-02 Yes Model Compatibility List $29.95 / Each

728624 095667 B48 Foot Pad Set;Rear;T7000 Pro;TM512-AB6; No Model Compatibility List $36.01 / Each

Foot Pad Leveler 000291 001250-AA # 1 Foot Pad Leveler Yes Model Compatibility List $28.60 / Each
3
Display Console - Used Only 1002982 :026764-ZUP - 1 Display Console - Used Only Yes Model Compatibility List $388.70 / Each

7
B 1020890 000763-E B32 1 Red Elastomer Version - Used No Model Compatibility List $7.79 / Each

Deck Spring - Black 1000412624 1000412624 B46 2 Deck Spring - Black Yes Model Compatibility List $16.33 / Each

Q 1029909 004480-Z Q53 Screw (Used) Yes Model Compatibility List $5.00 / Each

R matr250j12 1000340397 R42 1 Drive Belt Yes Model Compatibility List $34.99 / Each

P 1032499 002127-A P03 1 BS WIRE;60L;12AWG;BLACK;TM86; (Used) No Model Compatibility List $2.99 / Each

M 1000019 1000211092 M09 Power Entry Plate Switch Breaker Inlet Yes Model Compatibility List $34.99 / Each
P 1003694 003347-00 P09 Power Entry Circuit Breaker Yes Model Compatibility List $9.99 / Each

EMI Line Filter w/ Power & GND Wire 1005408 003530-A or 002386-B or 067538-A EMI Line Filter w/ Power & GND Wire Yes Model Compatibility List $29.99 / Each

P 1009784 003347-00 P09 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $3.59 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each
