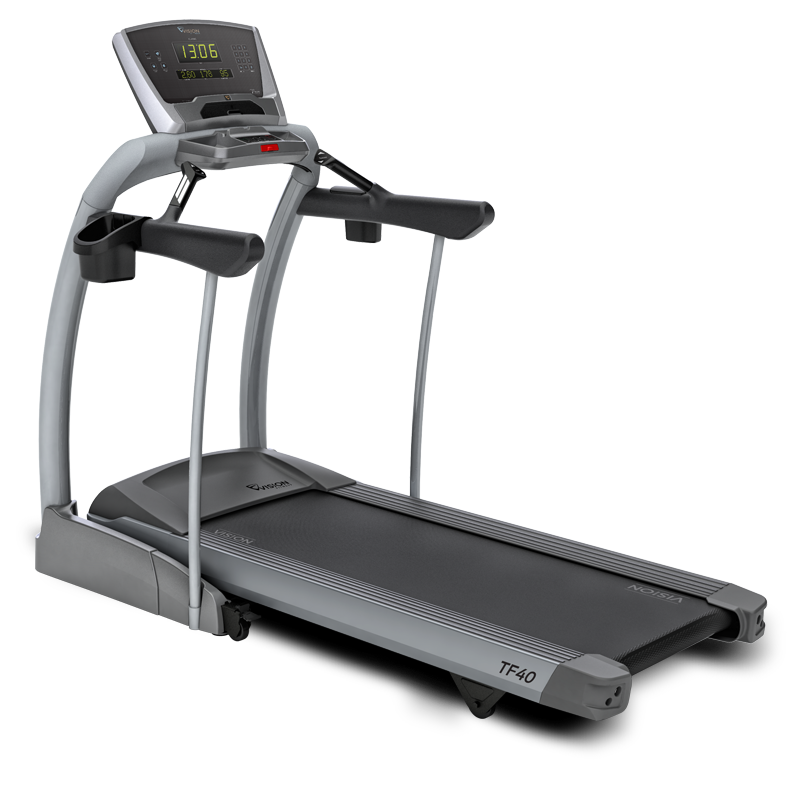

Vision Fitness - TF40 - 2012

Repair Parts for Vision Fitness TF40 TM434,TM435

Brand: Vision Fitness

Category: Folding

Type: Folding Treadmill

Model Name: TF40

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700570 001679-00 N82 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

N 701095 003722-00 N31 Screw;BH;M3X0.5PX6L;;PH;;WZN;ROHS;SP No Model Compatibility List $1.66 / Each

2
701577 004612-00 N26 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701590 004619-AB N28 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N27 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

N 701614 004633-00 N29 Screw;Phillip;BH;Tapped;5x10L;;Zn-BL No Model Compatibility List $1.85 / Each

2
N 706130 059357-00 N30 Screw;RND;M5X0.8PX10L;;PH;;BZN;ROHS;SP No Model Compatibility List $1.85 / Each

2
N 707653 1000094023 N72 Grounding Wire;250;4.0+6.0 No Model Compatibility List $3.82 / Each

N 708980 1000107853 N73 Heart Rate Receiver;Polar Yes Model Compatibility List $153.27 / Each

12,13,14
N 709423 1000114340 N66 Connect Wire;USB;150;XHS 2.5-6Yx2 Yes Model Compatibility List $3.82 / Each

4,5,6
N 709992 1000205707 N71 Ground Wire;Pulse;200L No Model Compatibility List $3.82 / Each

711140 1000217072 N65 SYNTHETIC LABEL;PATENT;;;;WINDOWS 6.0 AC No Model Compatibility List $35.46 / Each

4,5,6
N 711284 1000219554 N02 PLASTIC COVER;D;ABS;;CONSOLE;;TM437-1US; Yes Model Compatibility List $38.32 / Each

7,9
711285 1000219556 N04 RUBBER COVER;CONSOLE UPPER COVER;TM437-1 No Model Compatibility List $19.14 / Each

7,9
711286 1000219557 AN1 CONSOLE BASE SET;TM437-1US No Model Compatibility List $88.71 / Each

7,3
711288 1000219571 Not Shown DOCUMENTATION;MANUAL;MANIPULATE;ENGLISH; No Model Compatibility List $9.57 / Each

1
711297 1000219609 V02 LOGO LABEL;;;;;TM437-1US; No Model Compatibility List $9.57 / Each

1
711314 1000219800 Not Shown DOCUMENTATION;MANUAL;ENG;TM437-2KM; No Model Compatibility List $9.57 / Each

1
711315 1000219808 Not Shown DOCUMENTATION;MANUAL;MANIPULATE;FR&SP;TM No Model Compatibility List $9.57 / Each

1
711319 1000219887 N01 PLASTIC COVER;U;PAINT;SL;TM436-1US No Model Compatibility List $76.65 / Each

9
711321 1000219893 N01 PLASTIC COVERU;PAINTING;TM437-1US No Model Compatibility List $57.49 / Each

9
711324 1000220012 N63 KEYPAD;MEMBRANE;R;CONSOLE;DELUXE-12; No Model Compatibility List $38.32 / Each

7,9,12,13,14
711325 1000220013 N61 OVERLAY;U;ENGLISH;Elegant;; No Model Compatibility List $57.49 / Each

1
711326 1000220014 N61 OVERLAY;U;ENGLISH;Touch;; No Model Compatibility List $57.49 / Each

1
711327 1000220015 N62 KEYPAD;MEMBRANE;L;CONSOLE;DELUXE-12; No Model Compatibility List $38.32 / Each

7,9,12,13,14
711328 1000220017 N60 MO;CONSUMER GUI;10";NO TOUCH PANEL;;;;; No Model Compatibility List $1.30 / Each

7
711330 1000220023 N61 OVERLAY;U;EN;;Classic;TM435; No Model Compatibility List $57.49 / Each

1
711332 1000220025 N63 KEYPAD;MEMBRANE;L;;Bronze;4KEY;TM435 No Model Compatibility List $19.14 / Each

9,12,13,14
711333 1000220026 N64 KEYPAD;MEMBRANE;R;CONSOLE;Bronze;12KEY;T No Model Compatibility List $38.32 / Each

7,9,12,13,14
N 711334 1000220028 N63 CONTROL BOARD;USB;;;HBPB;;;;180?X Yes Model Compatibility List $15.00 / Each

7
711337 1000220061 N66 CONTROL BOARD;RF;;HBPB;-;;; No Model Compatibility List $47.89 / Each

7
711603 1000222199 N78 MO;SD BLOCK; 8G Scan Disk No Model Compatibility List $88.71 / Each

1
711605 1000222202 N64 USB Wire;-;-;250mm;XAP-08V-1?IXHS-6Y+XHS No Model Compatibility List $9.57 / Each

4,5,6
711606 1000222204 N77 WIRE;EAROHONE;300MM(JST:XAP-5V-1+XHS-4Y) No Model Compatibility List $8.87 / Each

4,5,6
711607 1000222205 N68 WIRE;IPOD;700L;JST:PAP-10V-S; No Model Compatibility List $35.46 / Each

4,5,6
N 711699 1000222585 N65 CONTROL BOARD;SOO1125;-;HBPB;-;JIS;ConnP Yes Model Compatibility List $20.00 / Each

7
N 711700 1000222587 N99 Pulse receiver set;I/O;Extra-work;-;-;-; No Model Compatibility List $95.81 / Each

12,13,14
N 711888 1000223509 N23 CONSOLE DOWN COVE;TM437-1US; Yes Model Compatibility List $19.14 / Each

7
711889 1000223510 N20 IPAD COVER;TM437 No Model Compatibility List $1.90 / Each

9,12,13,14
711963 1000224516 N73 Wire;60MM;JST:XAP-03V-1Green XHS-2Y No Model Compatibility List $3.82 / Each

4,5,6
711964 1000224517 N74 WIRE;HANDLEBAR;120MM;JST:XAP-08V-1 XHS-6 No Model Compatibility List $9.57 / Each

4,5,6,11
N 711971 1000224562 N69 CONTROL BOARD;EARPHONE;;SOO1124;HAPA;-; No Model Compatibility List $9.57 / Each

7
N 711977 1000224654 N71 CONTROL BOARD;HEART RATE BOARD;NEW REPLA Yes Model Compatibility List $38.32 / Each

7,12,13,14
711981 1000224660 N70 HEART RATE;NEW REPLACE;H101;CGC JST;;-; No Model Compatibility List $38.32 / Each

4,5,6,12,13,14
N 712110 1000226771 N78 WIRE;AUDIO SHORT CIRCUIT;20mm;JST;XAP-05 No Model Compatibility List $1.90 / Each

4,5,6
712191 1000227282 N15 Inner Package;-;-;TM437-1US No Model Compatibility List $1.77 / Each

4,5,6
712192 1000227283 N16 FOAM;SINGLESIDE;232.6X3.5X1.5T;TM436-1US No Model Compatibility List $1.77 / Each

1
712193 1000227284 N15 FOAM;SINGLESIDE;199.1X3.5X1.5T;TM437-1US No Model Compatibility List $1.77 / Each

1
712194 1000227285 N16 FOAM;SINGLESIDE;357.8X3.5X1.5T;TM437-1US No Model Compatibility List $1.77 / Each

1
712302 1000228319 N85 SPEAKER;BOXED;2W/8?[;150MM;JST:XAP-02V-1 No Model Compatibility List $19.14 / Each

1
712399 1000228713 N03 COVER;CONSOLE;U;PAINTING;CN/GY No Model Compatibility List $19.14 / Each

7,9
N 713173 1000233534 Not Shown CLASSIC CONSOLE SET;SA;CN12;TM435-;;; Yes Model Compatibility List $1168.70 / Each

7
713174 1000233536 Not Shown CONSOLE SET;SA;CN12;TM436-1US;;; No Model Compatibility List $2.60 / Each

7
713175 1000233538 Not Shown CONSOLE SET;SA;CN12;TM437-1US;;; Yes Model Compatibility List $2.60 / Each

7
Earphone Jack;ABS;PA757S 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.90 / Each

729099 Part of Console Set W94 Overlay;Touch panel;;;15.6#T:9PCT TF1-TP No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729100 Part of console set 1000233538 N60 CONSOLE BASE SET;TM437-1US No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
Speed feedback system Motor controller2 (Used) 1024187 080869 0 1 Speed feedback system Motor controller2 (Used) No Model Compatibility List $28.41 / Each
Out Of Stock 		1
Support Plate Cover (Used) 1029484 099615 B46 1 Support Plate Cover (Used) No Model Compatibility List $5.00 / Each

Display Matrix LCD Screen T80 Touch 1037002 1000229482 Display Matrix LCD Screen T80 Touch Yes Model Compatibility List $239.00 / Each

N 911968 004620-00 N27 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

View Drawing
