Vision Fitness - U20 - 2014-2015

Repair Parts for Vision Fitness U20 U20,CB157,EP588,Touch+

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

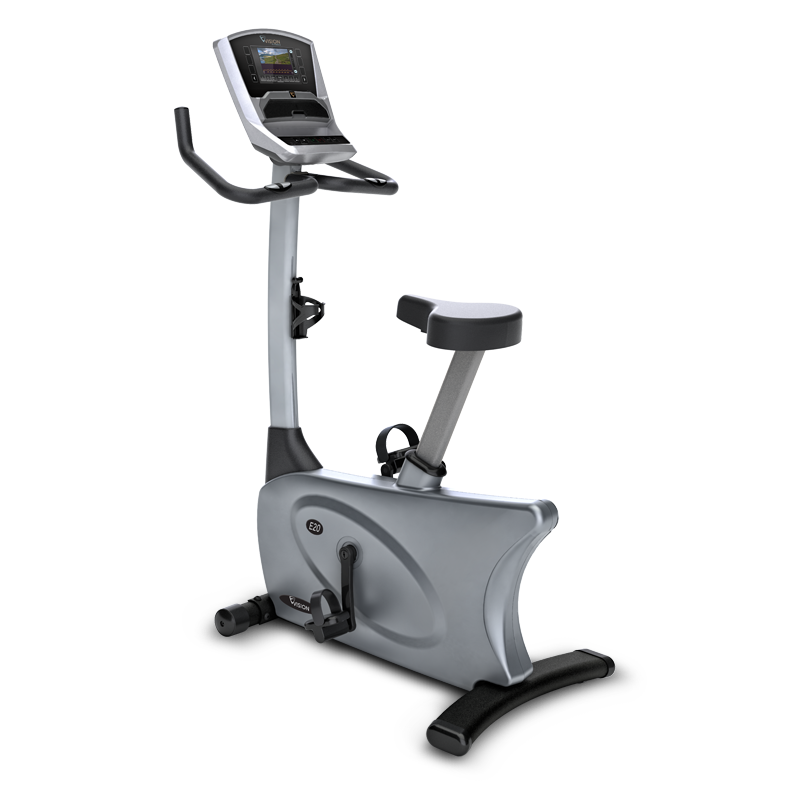

Model Name: U20

Version: 2014-2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700132 000485-00 F07 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
Wing Nut;Leveler;W3/8-16UNC;BED BL SPC 700135 000491-B F06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
Water Bottle Holder 700255 000787-00 C06 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
End Cap;Handlebar;25.4x2.3t;Back 700300 000894-00 C06 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
Plate;Power Socket 700376 001161-C Q19 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
Magnet;Crank Wheel;15x7t 701042 003413-00 T16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701148 004055-00 T02 Crank;Single side;Left;L=170mm;SS41;Blac No Model Compatibility List $7.28 / Each

8,4,5,6
Ball Bearing; 6202ZZ(BR6202ZZ) 701158 004075-A3 U03 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
Ball Bearing;6004ZZ;20X42X12T;;SKF;;; 701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

Drive Belt;Poly-V;410-J5 701229 004203-A R03 Drive Belt;Poly-V;410-J5 Yes Model Compatibility List $57.49 / Each

15,10
701308 004369-00 Z02 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

Screw;Umbrella Cross Tapped;4x10L 701583 004615-00 J09 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701597 004621-00 Q09 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
Screw;Phillip;BH;Tapped;4x10L;BED; 701602 004626-00 T27 Screw;Phillip;BH;Tapped;4x10L;BED; No Model Compatibility List $2.00 / Each

Screw;Phillip;BH;Tapped;4x16L 701613 004632-00 Q09 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701627 004648-00 G16 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

701699 004724-00 D53 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701893 004925-00 B57 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

Nut;Hex;M20X1.0P;SS41;BOX 701923 004956-00 R05 Nut;Hex;M20X1.0P;SS41;BOX No Model Compatibility List $4.00 / Each

2
Nut;Hex;Flange;3/8-26UNF;Black Zinc 701931 004968-00 104 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
701934 004972-00 F05 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) 701937 004973-00 C09 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 F03 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701952 004988-00 R05 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Washer;Spring;SW8 8.2X13.5X2.0T 701978 005015-00 Z05 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

Washer;DSP;8.0X18.0X0.9T 702194 005241-A T25 Washer;DSP;8.0X18.0X0.9T No Model Compatibility List $2.00 / Each

2
702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

C-Clip;Internal;R-35 702227 005352-00 U04 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

C-Clip;External;S-15 702236 005361-00 E20 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
C-Clip;External;S-20 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

Spring;Tension Assembly;16x2x65Lx25N 702274 005437-00 U08 Spring;Tension Assembly;16x2x65Lx25N Yes Model Compatibility List $2.00 / Each

2,3
702783 009677-00 D04 Seat Pull Pin Assembly No Model Compatibility List $9.10 / Each

3,12,13,14
702831 011179-00 F21 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2
704073 020185-00 E11 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

Screw;Hex Socket;BH;M8x1.25Px70L-20L;Partial 704120 020283-00 Z04 Screw;Hex Socket;BH;M8x1.25Px70L-20L;Partial No Model Compatibility List $2.00 / Each

2
Washer;Flat;6.2x19x2.0T 704180 020438-00 U09 Washer;Flat;6.2x19x2.0T No Model Compatibility List $1.79 / Each

2
Washer;Flat;10.2x20.0x2.0T;Black Zinc 704203 020478-00 L09 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Bracket;Side Cover;2 Hole Plate 704273 022177-A Q07 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

SCREW;BH;?X3X19L;SM;PH;;;;POT 705020 029526-A P33 SCREW;BH;?X3X19L;SM;PH;;;;POT No Model Compatibility List $1.85 / Each

705277 040419-B DAX Inside ECB Controller;CB120;CB120-R01B No Model Compatibility List $153.30 / Each

7,8
705284 040596-B N18 Wire;Pulse CON ;;110 female SM-2Y;450;;;CB102 No Model Compatibility List $3.82 / Each

4,5,6,12,13,14
Pulse Sensor Set;Single 705307 040690-A P02 Pulse Sensor Set;Single Yes Model Compatibility List $38.32 / Each

12,13,14
705320 040829-00 C12 Set Screw;M8x1.25x10L No Model Compatibility List $2.00 / Each

2
705366 048968-BX Q03 BOOT CONSOLE MAST No Model Compatibility List $13.10 / Each

7
705458 049248-00 L04 SCREW;BH;M6X1.0PX33L-15L;;PH;;;;P-T No Model Compatibility List $2.00 / Each

2
705517 049827-A P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
705565 051236-00 11 Semi-Assy;Pressure pulley Set;CB120-1US; No Model Compatibility List $38.32 / Each

8
706283 060739-AX V09 DECAL CRANK COVER No Model Compatibility List $3.82 / Each

7,8,9,3
706375 061533-B D05 SLEEVE SEAT POST No Model Compatibility List $3.82 / Each

3,12,13,14
706400 061791-Z PAX PEDAL AXLE ASSEMBLY No Model Compatibility List $102.80 / Each

8,9,3
706732 065075-00 P27 SCREW;BH;M4X0.7PX20L;CT;PH;;BAN;; No Model Compatibility List $1.85 / Each

Screw;Round Cross Tapped;M3X30L 706799 065640-A 183 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

707094 1000090311 Q09 SCREW BH 4x15L TAPPED NICKEL No Model Compatibility List $2.00 / Each

Washer;Split;8.2X13.5X2.0T;65MN;NKL; 707139 1000090447 B61 Washer;Split;8.2X13.5X2.0T;65MN;NKL; No Model Compatibility List $2.00 / Each

2
707153 1000090511 G10 SCREW;BH;M8X1.25PX20L;;HS;CRMO;G10.9;NKL No Model Compatibility List $0.60 / Each

2
707154 1000090513 L11 WASHER ARC 8.2X18X1.5 CHM No Model Compatibility List $2.00 / Each

2
707250 1000091605 AC1 MAST CONSOLE ASSEMBLY No Model Compatibility List $370.84 / Each

7,3
707251 1000091606 AG1 HANDLEBAR ASSEMBLY No Model Compatibility List $284.83 / Each

3,11
Screw;BH;M8X1.25PX25L;;HS;G8.8;NKL;;BP 707527 1000093249 J20 Screw;BH;M8X1.25PX25L;;HS;G8.8;NKL;;BP No Model Compatibility List $2.00 / Each

2
708141 1000100444 D06 Upright Saddle No Model Compatibility List $93.37 / Each

3
708252 1000101533 Not Shown Power Wire;DC;600mm Yes Model Compatibility List $10.01 / Each

4,5,6
709103 1000109595 T04 Crank Arm Cover;Round;Plastic;Black Yes Model Compatibility List $3.82 / Each

8,9,3,4,5,6

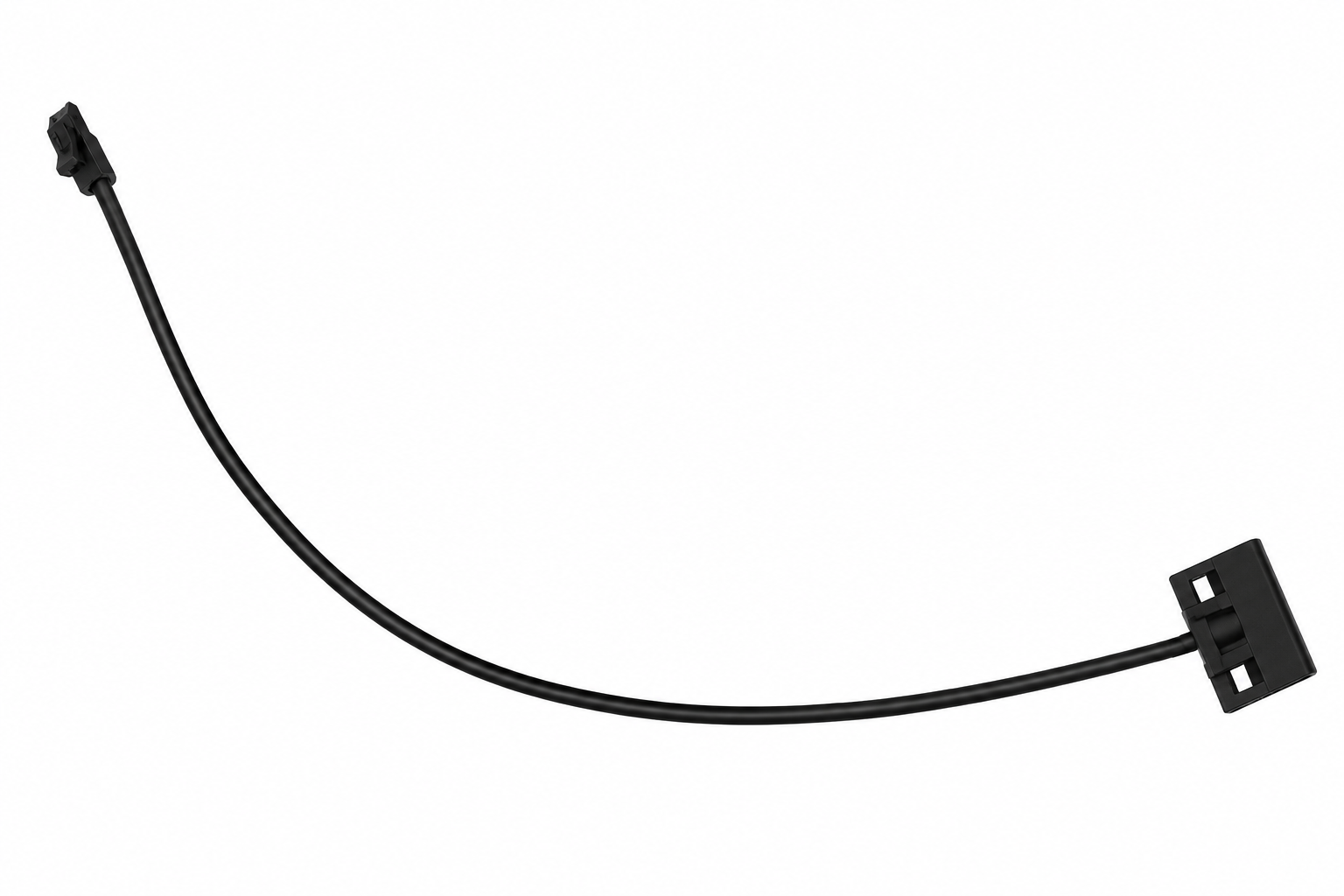

WIRE;SENSOR;;;;;250M;OKI SENSOR CKM25430 710204 1000207458 P09 WIRE;SENSOR;;;;;250M;OKI SENSOR CKM25430 No Model Compatibility List $5.72 / Each

4,5,6
Resistance Motor 710763 1000213379 S09 Resistance Motor Yes Model Compatibility List $180.67 / Each

711587 1000221959 P09 WIRE;ECB MOTOR;;;;650MM;CKM254301-8P CKM Yes Model Compatibility List $9.57 / Each

4,5,6,10
711943 1000224025 6 STABILIZER SET;SA;;CB157;;; No Model Compatibility List $95.81 / Each

1
711944 1000224032 V05 MODEL LABEL;COVER;;;;CB157-1US-F; No Model Compatibility List $3.82 / Each

9
711945 1000224034 5 WHEEL SET;SA;;CB157;;; No Model Compatibility List $95.81 / Each

8
711946 1000224047 Not Shown Documentation;Manual;Fr+Sp;;R20&R40&U20& No Model Compatibility List $9.57 / Each

1
712151 1000226921 V06 LOGO LABEL;COVER;;;;CB157; No Model Compatibility List $9.57 / Each

9
712265 1000227993 P02 WIRE;CONSOLE;;;;1500MM(CKM254301-8P SM-8 No Model Compatibility List $28.73 / Each

7,4,5,6
PEDAL SET;NO LOGO; 712462 1000228989 AT1 PEDAL SET;NO LOGO; Yes Model Compatibility List $54.73 / Each

712744 1000230490 6 Cover set;Semi-Assy;left;;;CB157;; No Model Compatibility List $76.65 / Each

9
712745 1000230491 10 Cover set;Semi-Assy;right;;;CB157;; No Model Compatibility List $76.65 / Each

9
712871 1000231136 Not Shown HARDWARE SET;;;CB157;;; No Model Compatibility List $37.15 / Each

1
712903 1000231413 AL1 WHEEL SET;SA;;RB153-1US-F;;; No Model Compatibility List $9.57 / Each

8
712904 1000231437 P25 PLASTIC BASE;-;N66;BL;;;; No Model Compatibility List $1.90 / Each

9,3
Control Board;Simulate Digital;DC;SOO112 713247 1000300436 P24 Control Board;Simulate Digital;DC;SOO112 No Model Compatibility List $76.65 / Each

7,4,5,6
713890 1000309309 F05 Cap;STABILIZER TUBE;left;ABS/PA757K;BL/B No Model Compatibility List $9.57 / Each

9,3
713891 1000309310 F04 Cap;STABILIZER TUBE;right;ABS/PA757K;BL/ No Model Compatibility List $9.57 / Each

9,3
Adapter;UL;100-240V/50-60Hz;12V/2A;;2.75m cord;2.1mm prong 714359 1000314036 P20 Adapter;UL;100-240V/50-60Hz;12V/2A;;2.75m cord;2.1mm prong No Model Compatibility List $72.98 / Each

715319 1000323658 Not Shown Console Wire;;;;;;150;SM-8A+Molex:70107- No Model Compatibility List $24.91 / Each

7,4,5,6
715320 1000323659 Not Shown Console Wire;;;;;;150;SM-8Y+Molex:70066 No Model Compatibility List $15.31 / Each

7,4,5,6
725006 100888 AD1 SEAT POST ASSEMBLY No Model Compatibility List $159.25 / Each

3,12,13,14
725007 100895 Q01 Cover;L;Panting;CB143 No Model Compatibility List $76.65 / Each

9
725008 100896 Q02 Cover;R;Panting;CB143 No Model Compatibility List $76.65 / Each

9
SCREW FHM8x1.0Px20 SERRATED 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
725598 073994 H02 Tension Cable; Steel Rope No Model Compatibility List $9.31 / Each

729052 Order Parts Separately A01 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729123 Part of Kit 11 AG2 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729152 Part of Kit 3 AE2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729165 Part of Kit 4 AE1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729172 Part of Kit 5 AD1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 AF2 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729201 Part of Kit 9 AG1 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729230 Part of Kit AL1 L01 Cover;Wheel;PP;RB108;RB108-L01B No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
729784 ZMS4004832 Not Shown Medium Silver Touch-Up Paint No Model Compatibility List $47.89 / Each

1
729785 ZMS4004833 Not Shown Flat Black Touch-Up Paint No Model Compatibility List $50.18 / Each

4,5,6
729786 ZMS4004834 Not Shown Dark Grey Touch-Up Paint No Model Compatibility List $45.60 / Each

1
Vision Fitness Bike Elliptical U40 U20 X40 Touch + Display Console 1025906 1000329341 1 1 Vision Fitness Bike Elliptical U40 U20 X40 Touch + Display Console No Model Compatibility List $908.70 / Each
Out Of Stock 		51
Crank arm cover 1037441 1000109595 Crank arm cover Yes Model Compatibility List $10.00 / Each
8,9,3,4,5,6
Gear Rower Retainer Clip (New) 957398 005330-00 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Rower Self Tapping Screw (New) 957090 004621-00 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
View Drawing
