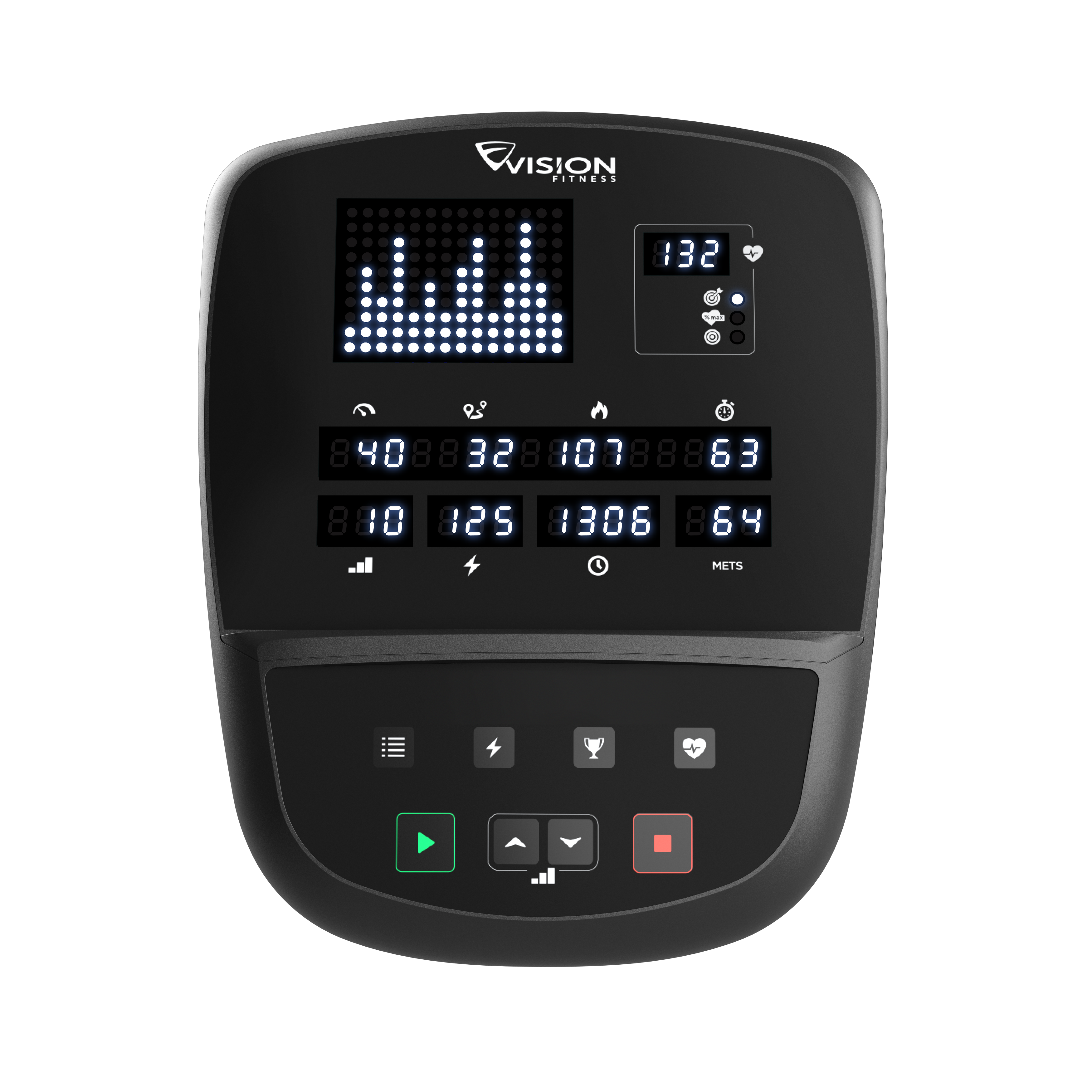

Vision Fitness - U60-03 - CB91C - 2019 - 2019-2025

Repair Parts for Vision Fitness U60-03 - CB91C - 2019 CB91C

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: U60-03 - CB91C - 2019

Serial Number Prefix: CB91C

Version: 2019-2025

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700055 000208-C Q03 Boot;Console Mast No Model Compatibility List $18.41 / Each

7
700132 000485-00 F07 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
Wing Nut;Leveler;W3/8-16UNC;BED BL SPC 700135 000491-B F06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
Sleeve;Mobile Wheel 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
End Cap;Pulse Grips;Inner 700357 001126-C P25 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

End Cap;Pulse Grips;Outer 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

Cover;Crank Arm 700360 001130-00 T109 Cover;Crank Arm No Model Compatibility List $1.90 / Each

700361 001131-D Q08 Cover;Crank;ABS;RB41 No Model Compatibility List $1.90 / Each

8,9
700375 001160-A Q05 Plate;Power Socket No Model Compatibility List $3.82 / Each

3,4,5,6
700705 001984-00 W59 BATTERY;9V ALKALINE;GP 1604A; No Model Compatibility List $18.23 / Each

700719 002024-E P01 Console Cable;1750L No Model Compatibility List $91.23 / Each

7,4,5,6
Generator Wire;150L;3.96-5P;CB62; 700899 002685-CR P02 Generator Wire;150L;3.96-5P;CB62; Yes Model Compatibility List $9.99 / Each

8,4,5,6
Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 701035 003393-A P21 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $3.64 / Each

Power Resistor;300W 701066 003556-D P03 Power Resistor;300W Yes Model Compatibility List $128.78 / Each

4,5,6
Transmission Wheel;60;One-Way Bearing;HFL-2530 701122 003911-E R03 Transmission Wheel;60;One-Way Bearing;HFL-2530 Yes Model Compatibility List $27.38 / Each

8
Ball Bearing;6004ZZ;20X42X12T;;SKF;;; 701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

Bearing;One-Way;;HFL2530;INA 701172 004092-00 R20 Bearing;One-Way;;HFL2530;INA Yes Model Compatibility List $84.11 / Each

8
Drive Belt;Poly-V;360-J6 701194 004145-00 R04 Drive Belt;Poly-V;360-J6 Yes Model Compatibility List $57.49 / Each

10,15
Drive Belt;Poly-V;450-J8 701211 004171-00 R19 Drive Belt;Poly-V;450-J8 Yes Model Compatibility List $54.73 / Each

15,10
701265 004326-00 N05 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
Screw;BH;M5X0.8PX12L;;PH;;BAN;; 701332 004385-00 E60 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

701334 004385-AC Z41 SCREW;BH;M5X0.8PX12L;;PH;;CHM;; No Model Compatibility List $1.79 / Each

Screw;Hex Socket;Round;M5x0.8Px12L;Adher 701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

Screw;Round;Hex Socket;M5X0.8PX30L 701394 004449-00 D87 Screw;Round;Hex Socket;M5X0.8PX30L No Model Compatibility List $1.79 / Each

2
Screw;Round;Hex Socket; M5X0.8PX10L(BED) 701403 004457-00 R15 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

Screw;Socket Head;M8X1.25PX50L-30L;;Hex 701441 004484-00 R05 Screw;Socket Head;M8X1.25PX50L-30L;;Hex No Model Compatibility List $1.85 / Each

Screw;Hex Socket;Round;M8x1.25Px16L 701449 004493-00 U21 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

Screw;Umbrella Cross Tapped;4x10L 701583 004615-00 J09 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701586 004617-00 Q11 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701618 004636-AD J45 Screw;BH;4X15L;SM;PH;;CHM;;POT No Model Compatibility List $0.81 / Each

Bolt;Eye Hook; 1/4 701644 004678-00 R07 Bolt;Eye Hook; 1/4"-20UNCX55L No Model Compatibility List $1.79 / Each

Screw;Hex Socket;Flat;M8x1.25Px12L 701658 004695-AB Z08 Screw;Hex Socket;Flat;M8x1.25Px12L No Model Compatibility List $2.00 / Each

701692 004720-00 Z04 Screw;BH;M8X1.25PX20L;;HS;;BZN;; No Model Compatibility List $2.00 / Each

Screw;BH;M8X1.25PX65L-20L;;HS;;;;BP;P-T 701719 004739-AB Z06 Screw;BH;M8X1.25PX65L-20L;;HS;;;;BP;P-T No Model Compatibility List $1.79 / Each

2
701727 004750-00 Z01 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Screw;Umbrella Hex Socket;M8x1.25Px15L 701796 004811-A D46 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
Nut;Hex;3/8-26UNCX4H 701870 004892-00 R11 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
Nut;Nylon;M5x0.8P;Black Zinc 701891 004924-00 T10 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

Nut;Nylon;1/4 701907 004933-00 S06 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

Nut;Hex;Flange;3/8-26UNF;Black Zinc 701931 004968-00 104 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) 701947 004983-A C07 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

Key;Round;Dual-End;6x6x10L; 701950 004986-00 R12 Key;Round;Dual-End;6x6x10L; No Model Compatibility List $1.79 / Each

9
701952 004988-00 R05 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Washer;Spring;8.2X13.5X2.0T;BZN 701979 005015-AB B38 Washer;Spring;8.2X13.5X2.0T;BZN No Model Compatibility List $1.79 / Each

2
Washer;Flat;20.2X35X1.5T;Black Zinc 701991 005029-00 C09 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702001 005040-AC K18 Washer;Flat;f8.5xf19.0x1.5t;;White Zinc; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Washer;Flat;10.2X15.0X1.5T;Black Zinc 702037 005067-00 J04 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

Washer;Flat;5.3x10x1.0T;Black Zinc 702050 005078-00 I23 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

Washer;Flat;5.0x16.0x1.0T;Black Zinc 702054 005082-00 H08 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
Washer, Flat;5/16x30x1.5T 702068 005097-00 L07 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
Washer;Flat;1/4 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702076 005109-00 Z06 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
702178 005220-00 Z20 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

Washer;Wavy;16.7x22.5x0.3T 702180 005222-00 D30 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Lock;10.0x20.0x1.0T 702193 005239-00 R18 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

C-Clip;External;S-20 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

C-Clip;External;S-25 702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

Spring;Tension Assembly;16x2x74L 702276 005439-00 U05 Spring;Tension Assembly;16x2x74L Yes Model Compatibility List $4.00 / Each

2,3
702359 006422-AX V10 Sticker;Cover;Crank;RB42C-Q10A;NON-ROHS No Model Compatibility List $3.82 / Each

8,9
Fix Plate;Eye Bolt 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

Connecting Plate;Side Cover 702483 007964-00 Q07 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
Adjustment Plate;Tension;6Hole 702517 008420-00 94 Adjustment Plate;Tension;6Hole No Model Compatibility List $1.66 / Each

3
702569 008686-BX L02 Axle;Wheel;;SS41;15.86;;;;CB58 No Model Compatibility List $15.00 / Each

8
Ring;26x10L;CB61 702579 008723-C R06 Ring;26x10L;CB61 No Model Compatibility List $3.35 / Each

1
Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) 702589 008864-A N50 Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.79 / Each

Screw;Special;Round;4.0x1.34Px12L(Hi-Lo 702591 008866-A N152 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.66 / Each

Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; 702601 008914-B T10 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

Generator;ECB;190 CE CB/RB MX/600;400W;JM07 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
703350 013656-CD N13 PULSE RECEIVER;HAND;H601B;VISION;CB37B; No Model Compatibility List $36.48 / Each

Lower Control Board;700 Series 703368 013783-AB S08 Lower Control Board;700 Series Yes Model Compatibility List $389.77 / Each

703410 014333-A AU2 Semi-Assy;RB72 Idler Set;1US;RB72 No Model Compatibility List $36.48 / Each

8
Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; 703852 018652-B 31 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $3.64 / Each

704289 022259-A Q31 Screw;TRH;4X6L;SM;PH;;BZN;;FLT No Model Compatibility List $2.00 / Each

2
Seat Sleeve 705003 028999-BA Q05 Seat Sleeve No Model Compatibility List $10.63 / Each

3,12,13,14
Washer;Flat;20.2x27.0x2.5T;Black Zinc 706838 066044-A H41 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
706997 068164-AA Q04 Seat Post Boot No Model Compatibility List $28.05 / Each

12,13,14
Painting;Console Mast Set;Carbon Grey; 710655 1000211645 C04 Painting;Console Mast Set;Carbon Grey; No Model Compatibility List $23.71 / Each

7
710658 1000211808 AB1 Painting;Frame Set;Pearl Gray BL/T75B1PV No Model Compatibility List $1013.97 / Each

3
710659 1000211860 7 Transmission Set;U60; No Model Compatibility List $249.13 / Each

1
710660 1000211867 9 Idler Set;U60; No Model Compatibility List $114.97 / Each

8
710728 1000212844 8 PULLEY SET;U60; No Model Compatibility List $249.13 / Each

8
711568 1000221318 R31 SCREW;TRH;M4x0.7Px8L;CT;PH;BZN; No Model Compatibility List $1.85 / Each

2
SCREW;TRH;4x15L;SM;PH;CHM;POT; 712797 1000230700 Z21 SCREW;TRH;4x15L;SM;PH;CHM;POT; No Model Compatibility List $1.79 / Each

713333 1000301731 R31 Washer;Flat;F25.3XF40X2.0T;S2Mo;; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
713890 1000309309 F05 Cap;STABILIZER TUBE;left;ABS/PA757K;BL/B No Model Compatibility List $9.57 / Each

9,3
713891 1000309310 F04 Cap;STABILIZER TUBE;right;ABS/PA757K;BL/ No Model Compatibility List $9.57 / Each

9,3
715532 1000325796 T08 Nut;Hex Flange;M10x1.25Px7T;SS41;Black A No Model Compatibility List $1.79 / Each

2,4,5,6
725188 102525 K18 RVN;HX;39515;;YZN;; No Model Compatibility List $1.90 / Each

Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL 726738 084533 G21 Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL No Model Compatibility List $1.79 / Each

Bottle Holder Set;Console Mast;ABS/PA746;BL 727375 0000088923 C11 Bottle Holder Set;Console Mast;ABS/PA746;BL Yes Model Compatibility List $15.52 / Each

Pulse Sensor Set 727558 0000089923 7 Pulse Sensor Set No Model Compatibility List $39.99 / Each

Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

Holder, Cup without Bracket (Used) 1035694 0000088923 C11 1 Holder, Cup without Bracket (Used) Yes Model Compatibility List $14.99 / Each

Front Roller Screw M8-1.25 1020604 004483-00 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

Screw;Hex Socket;Round;M5x0.8Px12L;;Zn-B 730194 004447-00 B52 Screw;Hex Socket;Round;M5x0.8Px12L;;Zn-B No Model Compatibility List $0.00 / Each
Out Of Stock

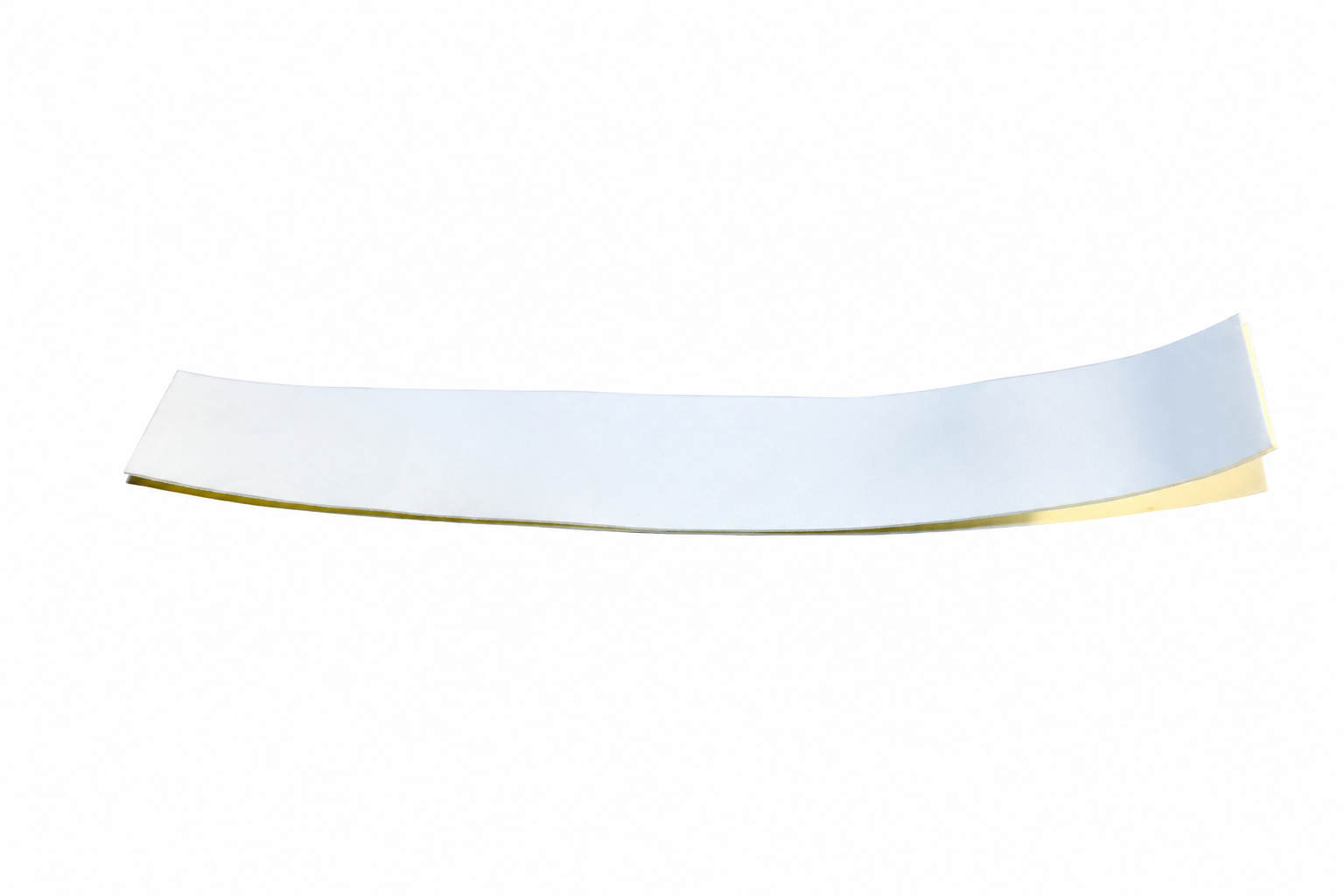

Foam Strips;140X25X1.0T(SINGLE) 730735 0000082662 W122 Foam Strips;140X25X1.0T(SINGLE) No Model Compatibility List $1.38 / Each

Screw;TH;M8X1.25PX20L;;HS;MT;BAN;;BP 730769 0000086277 G50 Screw;TH;M8X1.25PX20L;;HS;MT;BAN;;BP No Model Compatibility List $2.32 / Each

Tape;Dual Sided;20x30x3t;TM501; 730776 0000089111 N103 Tape;Dual Sided;20x30x3t;TM501; No Model Compatibility List $0.08 / Each

Screw;SH;M8X1.25PX16L;;HS;;BZN;;BP 731357 004476-00 C16 Screw;SH;M8X1.25PX16L;;HS;;BZN;;BP No Model Compatibility List $0.00 / Each
Out Of Stock
Face Plate Cover;Manipulate;up;Acrylic;0 731922 1000434903 N07 Face Plate Cover;Manipulate;up;Acrylic;0 No Model Compatibility List $67.02 / Each

Overlay;Manipulate;Down;;;RB306C; 731923 1000434900 N08 Overlay;Manipulate;Down;;;RB306C; No Model Compatibility List $13.08 / Each

Membrane Keypad;;D;8Key PET/0.125t;U60; 731924 1000211848 N09 Membrane Keypad;;D;8Key PET/0.125t;U60; No Model Compatibility List $25.74 / Each

Pulse receiver set;;Extra-work;;;2.5-3P+ 731925 013919-A N32 Pulse receiver set;;Extra-work;;;2.5-3P+ No Model Compatibility List $69.04 / Each

9 Volt Battery Buckle;;;;;;130mm;2.5-2PI 731926 002398-A N33 9 Volt Battery Buckle;;;;;;130mm;2.5-2PI No Model Compatibility List $0.00 / Each
Out Of Stock
TAPE;FOAM;One-Sided;25X15X2.5T; 731927 000686-A N34 TAPE;FOAM;One-Sided;25X15X2.5T; No Model Compatibility List $0.16 / Each

Control Board;Console;;H005;V003-004;;U/ 735351 1000434788 W01 Control Board;Console;;H005;V003-004;;U/ No Model Compatibility List $517.44 / Each

Console set;Semi-Assy;;;;;R60-03; 735682 1000434897 17 Console set;Semi-Assy;;;;;R60-03; No Model Compatibility List $1037.22 / Each

Stabilizer set;;;;CB91C;;U60-03; 735687 1000444499 6 Stabilizer set;;;;CB91C;;U60-03; No Model Compatibility List $95.58 / Each

Pedal;w/ Belt;L/R;JD-10A;Black1; 735690 1000211864 AT1 Pedal;w/ Belt;L/R;JD-10A;Black1; No Model Compatibility List $61.34 / Each

Crank;Left;SS41;BED;S14.8;CB59B-T03; 735707 0000089466 T03 Crank;Left;SS41;BED;S14.8;CB59B-T03; No Model Compatibility List $49.32 / Each

Crank;Right;SS41;BED;S14.8;CB59B-T04; 735708 0000089467 T04 Crank;Right;SS41;BED;S14.8;CB59B-T04; No Model Compatibility List $47.56 / Each

Swivel Axle;Idler;;S45C;;;Diam.20.0X34.9 735709 0000089856 U02 Swivel Axle;Idler;;S45C;;;Diam.20.0X34.9 No Model Compatibility List $4.54 / Each

Model Label;;;;SL Polish;;;U60-02; 735710 1000409522 V08 Model Label;;;;SL Polish;;;U60-02; No Model Compatibility List $7.00 / Each

Vision Label;;;;SL Polish;;;U60-02 735711 1000409523 V12 Vision Label;;;;SL Polish;;;U60-02 No Model Compatibility List $7.80 / Each

Overlay set;Semi-Assy;;;;;R60-03; 735712 1000434899 10 Overlay set;Semi-Assy;;;;;R60-03; No Model Compatibility List $0.00 / Each
Out Of Stock
stabilizer set;B;painting;Black;KD-A50;C 735719 1000224026 AF1 stabilizer set;B;painting;Black;KD-A50;C No Model Compatibility List $0.00 / Each
Out Of Stock
Pulley;;;;F235;CB03; 735720 014276-A AT2 Pulley;;;;F235;CB03; No Model Compatibility List $0.00 / Each
Out Of Stock
Extrawork;Crank Housing Set;U60; 735721 1000213565 AU3 Extrawork;Crank Housing Set;U60; No Model Compatibility List $0.00 / Each
Out Of Stock
Face Plate Cover;Console;;ABS PA746;Q520 735729 1000409489 N01 Face Plate Cover;Console;;ABS PA746;Q520 No Model Compatibility List $0.00 / Each
Out Of Stock
GRIP;Sensor;up;ABS/PA746;Black;;C8000; 735730 0000090511 N201 GRIP;Sensor;up;ABS/PA746;Black;;C8000; No Model Compatibility List $0.00 / Each
Out Of Stock
GRIP;Sensor;down;ABS/PA746;Black;;C8000; 735731 0000090512 N202 GRIP;Sensor;down;ABS/PA746;Black;;C8000; No Model Compatibility List $0.00 / Each
Out Of Stock
Console Uipper Cover;;back;ABS PA746;;;U 735732 1000409485 N51 Console Uipper Cover;;back;ABS PA746;;;U No Model Compatibility List $0.00 / Each
Out Of Stock
Console Down Cover;;back;ABS PA746;Q520- 735733 1000409487 N52 Console Down Cover;;back;ABS PA746;Q520- No Model Compatibility List $0.00 / Each
Out Of Stock
Cover;TV;;ABS PA746;Q520-7-3;;U60-02; 735734 1000409488 N56 Cover;TV;;ABS PA746;Q520-7-3;;U60-02; No Model Compatibility List $0.00 / Each
Out Of Stock
PULLEY;POLY-V;;;NYLON 66+30%FIBER;J6F220 735738 003917-D R03 PULLEY;POLY-V;;;NYLON 66+30%FIBER;J6F220 No Model Compatibility List $0.00 / Each
Out Of Stock
Axle, central;Idler;;SS41;NKL;CB91;f28x1 735740 1000212850 U03 Axle, central;Idler;;SS41;NKL;CB91;f28x1 No Model Compatibility List $0.00 / Each
Out Of Stock
Bearing;Dry;JFM-2023-15.5;F20x15.5L;;IGU 735741 0000091699 U09 Bearing;Dry;JFM-2023-15.5;F20x15.5L;;IGU No Model Compatibility List $0.00 / Each
Out Of Stock
Console set;Semi-Assy;;;metric;H005S002; 735743 1000434898 17 Console set;Semi-Assy;;;metric;H005S002; No Model Compatibility List $0.00 / Each
Out Of Stock
console mast set;;;MXR-DM515;U60-02;; 735771 1000409520 1 console mast set;;;MXR-DM515;U60-02;; No Model Compatibility List $132.02 / Each

Handlebar Set;U60; 735772 1000211828 2 Handlebar Set;U60; No Model Compatibility List $420.10 / Each

shield set;;right;;U60-02;; 735773 1000409469 5 shield set;;right;;U60-02;; No Model Compatibility List $140.90 / Each

Side Cover Set;;left;;U60-02;; 735774 1000409471 6 Side Cover Set;;left;;U60-02;; No Model Compatibility List $140.90 / Each

Seat Post Set;;;;CB59;Screen Printing; 735775 1000406832 AD1 Seat Post Set;;;;CB59;Screen Printing; No Model Compatibility List $212.00 / Each

Adjustment Pin Assembly;Cushions;;M16;U6 735776 1000323583 AD3 Adjustment Pin Assembly;Cushions;;M16;U6 No Model Compatibility List $39.94 / Each

Plastic Base;Kettle Rack;;ABS/PA746;Blac 735777 1000214835 C23 Plastic Base;Kettle Rack;;ABS/PA746;Blac No Model Compatibility List $5.46 / Each

Seat Pad;;PU,Vesicant;Black;LS-B38-1;CB9 735778 1000211826 D11 Seat Pad;;PU,Vesicant;Black;LS-B38-1;CB9 No Model Compatibility List $64.08 / Each

NUT;NLK;M8X1.25P;;ZN;; 735779 004926-AB D20 NUT;NLK;M8X1.25P;;ZN;; No Model Compatibility List $2.58 / Each

Connecting Wire;Pulse Sensor;1000L(2.54-2P-V+11 735780 0000092950 P07 Connecting Wire;Pulse Sensor;1000L(2.54-2P-V+11 No Model Compatibility List $8.48 / Each

Heart Rate Wire;1000;P2-I25002+J1730BS-2 735781 0000094482 P08 Heart Rate Wire;1000;P2-I25002+J1730BS-2 No Model Compatibility List $7.00 / Each

Console Mast-Extrawork;;;Screen print;;U 735782 1000409516 AC1 Console Mast-Extrawork;;;Screen print;;U No Model Compatibility List $0.00 / Each
Out Of Stock
Extrawork;Handlebar;Dipping;U60; 735783 1000214837 AG1 Extrawork;Handlebar;Dipping;U60; No Model Compatibility List $0.00 / Each
Out Of Stock
Side Cover Set;;R;painting;DM334;;U60-02 735784 1000409470 Q01 Side Cover Set;;R;painting;DM334;;U60-02 No Model Compatibility List $0.00 / Each
Out Of Stock
Side Cover Set;;L;painting;DM334;;U60-02 735785 1000409472 Q02 Side Cover Set;;L;painting;DM334;;U60-02 No Model Compatibility List $0.00 / Each
Out Of Stock
Axle;Fly Wheel;;SCM440;;U60;f25x98.3L; 735786 1000211861 R01 Axle;Fly Wheel;;SCM440;;U60;f25x98.3L; No Model Compatibility List $0.00 / Each
Out Of Stock
Axle, central;Pedal;;SCM440;Black Oxide; 735787 0000089465 T01 Axle, central;Pedal;;SCM440;Black Oxide; No Model Compatibility List $0.00 / Each
Out Of Stock
CE Label;;;;PETP;;;U60-02 735788 1000409525 V19 CE Label;;;;PETP;;;U60-02 No Model Compatibility List $0.00 / Each
Out Of Stock
AXLE FOOT FRONT 735789 008686-C L02 AXLE FOOT FRONT No Model Compatibility List $0.00 / Each
Out Of Stock
hardware set;;;For Service;U60;; D/C, NO REPL: Part will show as orderable until stock is depleted. 735790 1000309575 Not Shown hardware set;;;For Service;U60;; D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $0.00 / Each
Out Of Stock
Gear Rower Retainer Clip (New) 957398 005330-00 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
