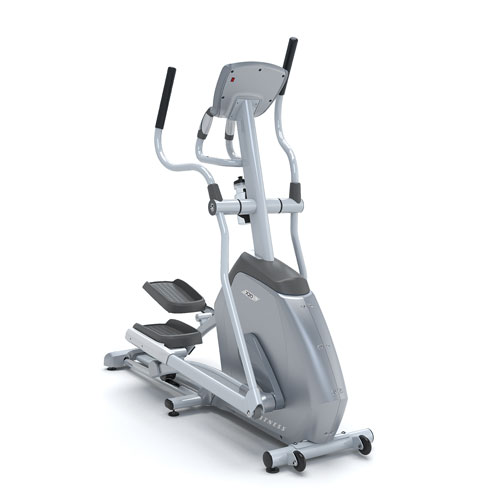

Vision Fitness - X20 - 2010

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
C 700255 000787-00 C16 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C10 Water Bottle No Model Compatibility List $9.88 / Each

1
G 700323 000960-AA G09 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
C 700357 001126-C C13 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

H 700390 001193-00 H13 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

R 701042 003413-00 R02 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
G 701159 004077-A2 G21 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

C 701309 004369-AD C17 Screw;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $2.00 / Each

2
Z 701522 004555-AB Z03 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

701591 004620-00 Z06 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701597 004621-00 M03 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701643 004677-00 R07 Bolt;Eye Hook;1/4"-20UNCX50L(25L);ZN-BL No Model Compatibility List $10.01 / Each

2
D 701681 004714-AB D10 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
701699 004724-00 G17 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

Z 701827 004847-AB Z34 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
H 701846 004863-00 H08 Screw;5x13L No Model Compatibility List $1.66 / Each

2
701848 004865-00 J03 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701858 004880-00 C25 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

R 701932 004969-A R10 Nut;Hxf;M14X1.5PX10L;BZN;G10 No Model Compatibility List $4.60 / Each

2
701952 004988-00 R11 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
701964 005005-00 Z12 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701966 005005-ZAB Z21 Washer;Spring;8.2x15.4x2.0t;Yellow Ni No Model Compatibility List $2.00 / Each

2
Z 701984 005020-AB Z05 Washer;;SPL;10.2X18.4X2.5T;;BAN; No Model Compatibility List $1.59 / Each

C 701994 005033-00 C31 Washer;Flat;8.6x26.0x2.0T No Model Compatibility List $1.79 / Each

2
Z 702005 005043-00 Z26 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
B 702028 005060-00 B19 Washer;Flat;12.0X23.0X2.5T No Model Compatibility List $1.79 / Each

2
702074 005106-00 Z04 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702092 005125-00 E15 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702107 005136-A E09 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
G 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

702165 005202-A Z24 Washer;Teflon;16.2X28.7X1.0T No Model Compatibility List $2.00 / Each

2
702178 005220-00 Z33 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702217 005330-00 B12 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

C 702240 005365-00 C14 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 R13 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702404 006644-BX V07 Sticker;Instructon;R; No Model Compatibility List $1.90 / Each

1
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

702829 011173-00 R15 Nut;Hex;M25x1.5P;Black No Model Compatibility List $4.00 / Each

2,4,5,6
M 702857 012847-00 M01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
Z 703965 020014-00 Z09 Screw;Phillip;BH;M4x0.7Px15L;Ni;Gap No Model Compatibility List $2.00 / Each

2
704068 020179-00 B18 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

704073 020185-00 P03 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

B 704273 022177-A B15 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

705485 049287-00 R17 Washer;Flat;12.5x20.0x2.0t; No Model Compatibility List $2.00 / Each

V 706142 059542-AX V09 Sticker;Warning No Model Compatibility List $1.77 / Each

1
706236 060370-A R12 Washer;Spring;14.2x24x1.0T No Model Compatibility List $2.00 / Each

2
D 706705 064736-AA D07 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
707094 1000090311 H14 SCREW BH 4x15L TAPPED NICKEL No Model Compatibility List $2.00 / Each

707107 1000090329 Z25 Screw;Hex;BH;M8X1.25X20 CHM No Model Compatibility List $2.00 / Each

2
L 707117 1000090362 L04 Screw;BH;M8X1.25PX45L;;HS;CRMO;G10.9;NKL No Model Compatibility List $3.69 / Each

2
707118 1000090363 L05 Nut;NLK;M8X1.25P;;NKL;; No Model Compatibility List $2.00 / Each

2
707119 1000090364 L06 Washer;Flat;;8.2X18.0X1.0T;SPHC ;NKL; No Model Compatibility List $1.85 / Each

2
707122 1000090367 Z02 Washer;Arc;8.4X17.0X1.0T;;NKL; No Model Compatibility List $1.85 / Each

2
L 707361 1000092318 L08 Front Leveler Yes Model Compatibility List $12.43 / Each

Z 707527 1000093249 Z01 Screw;BH;M8X1.25PX25L;;HS;G8.8;NKL;;BP No Model Compatibility List $2.00 / Each

2
707540 1000093315 NOT SHOWN CTL Board;AV&USB; No Model Compatibility List $35.44 / Each

4,5,6
708073 1000098892 C23 Sensor Wire;Pulse;850(110Female+SM-2Y); No Model Compatibility List $34.16 / Each

4,5,6,12,13,14
708075 1000098949 D13 Rear Stabilizer Cover;Panting;silver;EP240 No Model Compatibility List $44.30 / Each

9
G 708076 1000098969 G20 Pivot Tube Insert;POM;Pantone425CTR??EP2 No Model Compatibility List $9.57 / Each

8,3
Q 708077 1000098998 Q14 Crank Round Cover;Panting;silver;EP240 Yes Model Compatibility List $3.82 / Each

8,9
708078 1000099006 - Hardware;Semi-Assy;No RoHS;EP240 No Model Compatibility List $90.82 / Each

1
708090 1000099323 L09 End Cap;Front Stabilizer Yes Model Compatibility List $9.57 / Each

9
E 708160 1000100846 E18 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
A 708182 1000100946 AJ1 Crank Set Yes Model Compatibility List $191.62 / Each

8
G 708419 1000102774 G11 Screw;Settle;M4x0.7Px8L No Model Compatibility List $2.00 / Each

2
H 708433 1000102806 H05 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
H 708508 1000103023 H09 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
708543 1000103286 G10 Swivel Axle Cover;Arm Rest;EP240 No Model Compatibility List $10.09 / Each

8,9,3
708544 1000103293 Q08 Rear Side Cover;Painting;G/S;EP240 No Model Compatibility List $25.74 / Each

9
E 708545 1000103295 E17 Roller Cover;Left;Painting;G/S;EP240 No Model Compatibility List $11.93 / Each
Out Of Stock
8,9
708553 1000103340 E21 Front Link Arm Cover;Left Upper;Painting;EP240 No Model Compatibility List $9.57 / Each

9,3
708554 1000103341 E22 Front Link Arm Cover;Left Lower;Pedal Arm;Painting;EP240 No Model Compatibility List $9.57 / Each

8,9,3
E 708555 1000103342 E24 Roller Cover;Right;Painting;EP240 No Model Compatibility List $11.93 / Each

8,9
708556 1000103343 Q10 Pedal Arm Cover;Left;Painting;EP240 No Model Compatibility List $10.92 / Each

8,9,3
708557 1000103344 Q11 Pedal Arm Cover;Right;Painting;EP240 No Model Compatibility List $10.92 / Each

8,9,3
708748 1000105271 E25 Upper Front Cover;Link Arm;Right No Model Compatibility List $9.57 / Each

9,3
708749 1000105273 E26 Lower Front Cover;Link Arm;Right No Model Compatibility List $9.57 / Each

9,3
708763 1000105512 P02 Speed Sensor Wire;150mm(OKI+CWB:SM-2Y) No Model Compatibility List $9.57 / Each

4,5,6
P 708764 1000105513 P01 Console Cable Wire;1000 XHS-10Y+(300+450+100) Yes Model Compatibility List $76.65 / Each

4,5,6,7
709054 1000108776 C24 Screw;RND;M3x0.5Px32L;PH;8.8;CHM;F-T No Model Compatibility List $1.85 / Each

2
709056 1000108778 C28 Washer;Flat;?8.5x?20.0x1.0t;NKL No Model Compatibility List $2.00 / Each

2
709057 1000108779 Z20 Screw;BH;M8x1.25Px70L-12L;HS;8.8;NKL;BP; No Model Compatibility List $4.00 / Each

2
709058 1000108781 Z23 Nut;Nylon;M8x1.25P;NKL No Model Compatibility List $2.00 / Each

2
M 709092 1000109370 M02 Steel Resistance Cable Rope;ECB; 160L;L1+L2=65 Yes Model Compatibility List $16.89 / Each

1
G 709105 1000109696 G12 Pivot Tube Cover;Hand Arm;Nylon+30%;;EP240 Yes Model Compatibility List $3.82 / Each

8,9,3
Q 709106 1000109697 Q04 Console Mast Lower Cover;Front;Painting;EP240 Yes Model Compatibility List $54.86 / Each

7,9
709115 1000109865 V01 Model Sticker;Left;EP240 No Model Compatibility List $3.82 / Each

1
709116 1000109866 V02 Model;Sticker;Right;EP240 No Model Compatibility List $3.82 / Each

1
709117 1000109871 Q03 Console Mast Lower Cover;Rear;Painting;EP240 No Model Compatibility List $10.92 / Each

7,9
Z 709135 1000110274 Z32 Washer;Flat;20.2x27.2x1.5T;SPHC;BAN No Model Compatibility List $1.59 / Each

709142 1000110435 V12 Round Sticker;30;G/S;EP240 No Model Compatibility List $1.90 / Each

1
H 709152 1000110505 H06 Screw;Anti-slippery;TRHW;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
709161 1000110560 B16 Screw;SH;MT;HS;G12.9;ZNC;BP No Model Compatibility List $2.00 / Each

2
R 709201 1000110978 R18 Nut;HXF;levogyrate;M14x1.5Px10L;G10;NKL;Reverse Threaded No Model Compatibility List $2.00 / Each

7,2,12,13,14
709203 1000111013 AG5 Hang Arm Set;Painting;Gray/Silver;EP240 No Model Compatibility List $164.37 / Each

3
Z 709211 1000111159 Z10 Washer;Wavy;17.2x22.5x0.5T;65Mn No Model Compatibility List $1.59 / Each

2,4,5,6
709228 1000111352 AQ01 Side Cover,Right No Model Compatibility List $166.89 / Each

9
709229 1000111353 AQ02 Side Cover,Left No Model Compatibility List $166.89 / Each

9
709239 1000111416 8 Lower Handlebar Set;Right No Model Compatibility List $226.93 / Each

11
709241 1000111418 AN1 HR Grip / Pulse Sensor Set;EP241 No Model Compatibility List $38.32 / Each

7,12,13,14,11
709243 1000111420 2 Guide Rail Set;EP240 No Model Compatibility List $400.58 / Each

9
709244 1000111423 3 Pedal Arm Set;Left;EP240 No Model Compatibility List $462.98 / Each

8,9,3
709245 1000111425 4 Pedal Arm Set;Right;EP240 No Model Compatibility List $462.98 / Each

8,9,3
709247 1000111428 - Hardware;2;EP240 No Model Compatibility List $1.85 / Each

1
709249 1000111430 7 Lower Handlebar Set;Left No Model Compatibility List $226.93 / Each

11
709251 1000111441 13 Front Stabilizer Only No Model Compatibility List $176.93 / Each

1
709252 1000111446 - Hardware;7;EP240 No Model Compatibility List $1.85 / Each

1
1 709253 1000111448 15 Drive Axle Set;EP241 Yes Model Compatibility List $189.96 / Each

8,10
709266 1000111636 1 Console Mast Set;EP240 No Model Compatibility List $589.89 / Each

7
709267 1000111638 5 Upper DA Handle Bar Set;Left;U;EP240 No Model Compatibility List $158.03 / Each

11
709268 1000111639 6 Upper DA Handle Bar Set;Right;U;EP240 No Model Compatibility List $158.03 / Each

11
709269 1000111642 10 Link Arm Set;Right;EP240 No Model Compatibility List $248.40 / Each

3
Crank Pin Set;EP525-1US 709270 1000233192 14 Crank Pin Set;EP525-1US No Model Compatibility List $36.40 / Each

8,3
Q 709584 1000201422 Q09 Pedal;EP240 Yes Model Compatibility List $63.70 / Each

8,9
709802 1000203355 - Premier Console Set Serial Number EP249 No Model Compatibility List $1.30 / Each

7
Q 710015 1000205925 Q12 Crank Cover;Left;Panting;silver;ABS;EP240 Yes Model Compatibility List $44.28 / Each

8,9
Q 710016 1000205926 Q13 Crank Cover;Right;Painting;G/S;ABS;EP240 Yes Model Compatibility List $44.28 / Each

8,9
R 710064 1000206552 R06 Drive Belt;Poly-V;490-J10 Yes Model Compatibility List $57.49 / Each

23
1 710070 1000206628 16 Resistance Brake Flywheel;10.5KG Yes Model Compatibility List $360.20 / Each

8
710253 1000207981 - Manual;Assembly;EP240 No Model Compatibility List $10.24 / Each

3
- 710395 1000210076 - Deluxe Console Set Serial Number RB144 - D/C, NO REPL: Part will show as orderable until stock is depleted Yes Model Compatibility List $1038.70 / Each

7
- 710521 1000210808 - Plug and washer kit No Model Compatibility List $4.73 / Each

2
E 710722 1000212646 E11 MOVING WHEEL SET;-;S-EP534;-; Yes Model Compatibility List $189.00 / Each

8
712062 1000226201 E13 SCREW;SH;M10x1.5Px45L-16L;MT;G10.9;CRMO; No Model Compatibility List $2.00 / Each

2
712111 1000226784 E30 SHIM;CRANK SLEEVE;-;SPHC;-;EP558; No Model Compatibility List $3.82 / Each

8,3
712370 1000228586 E16 NUT;NLK;M10x1.5P;G10.0;BAN;; No Model Compatibility List $2.00 / Each

712874 1000231159 Not Shown ADAPTER;US;100-240V/50-60HZ;12V/2A;2.0M; Yes Model Compatibility List $80.29 / Each

H 713201 1000300189 H07 Bearing;Dry;-;-;Sheng Ge Ban No Model Compatibility List $6.68 / Each

713882 1000309223 9 Link Arm Set;Semi-Assy;left;;;EP240;; No Model Compatibility List $283.61 / Each

3
D 720052 1000368347 D08 Accent Plate Set;Semi-Assy;;;;EP595-1US; Yes Model Compatibility List $70.25 / Each

3,4,5,6
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

Crank Puller;30mm 725742 075513 KIT Crank Puller;30mm No Model Compatibility List $57.49 / Each

725869 077441 C10 Sticker;Warning;Console set;38x54;EP197 No Model Compatibility List $1.77 / Each

Transport Wheel;Nylon 726413 0000081709 L01 Transport Wheel;Nylon Yes Model Compatibility List $17.24 / Each

726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

Power Jack 728841 097930 P05 Power Jack Yes Model Compatibility List $16.51 / Each

728977 N/A 14 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock
8,,1,,1
Display Console - Used Only 1003376 1000109336 # 1 Display Console - Used Only Yes Model Compatibility List $180.70 / Each
Out Of Stock
7
M 1003402 012847-00 M01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
1
Z 911968 004620-00 Z06 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B12 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

M 957090 004621-00 M03 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
