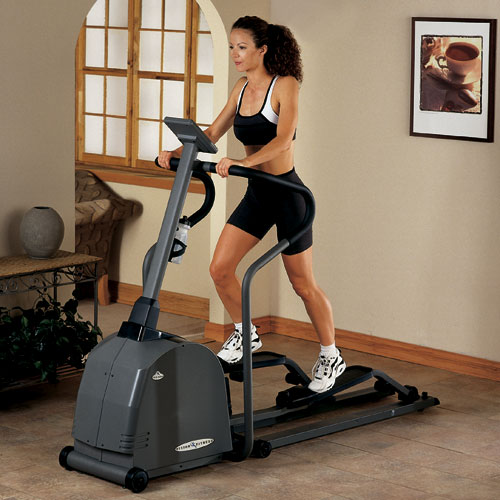

Vision Fitness - X6100 - 1998-2000

Repair Parts for Vision Fitness X6100 XXXXEP02

Brand: Vision Fitness

Category: Traditional

Type: Elliptical

Model Name: X6100

Version: 1998-2000

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L03 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
700059 000226-00 H03 Cover;Guide Rail No Model Compatibility List $30.34 / Each

9
700076 000294-B Q03 Cover;Pedal Arm;Right No Model Compatibility List $3.07 / Each

8,9,3
700132 000485-00 H12 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
700276 000846-B Q30 BUSHING STABILIZER; No Model Compatibility List $1.90 / Each

8
E 700331 000983-00 E32 End Cap;Locking Cylinder Yes Model Compatibility List $3.82 / Each

9
L 700352 001113-00 L06 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
700475 001458-00 Z21 TOE BOX TOP/POP PIN; Yes Model Compatibility List $12.71 / Each

12,13,14
E 700476 001459-00 E31 Roller Cover Yes Model Compatibility List $3.64 / Each

8,9
Z 701042 003413-00 Z88 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701052 003499-D2 P07 Power Adapter;9V/1.5A Yes Model Compatibility List $76.65 / Each

4,5,6
P 701056 003516-Z P01 Speed Sensor Wire;140mm Yes Model Compatibility List $9.88 / Each

4,5,6
R 701123 003918-A R15 BELT DRIVE TIMING; 1025-5M Yes Model Compatibility List $54.73 / Each

15,10
701154 004072-A2 E33 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
701217 004180-00 R15 Drive Belt;Poly-V;440-J10 No Model Compatibility List $54.73 / Each

15,10
701308 004369-00 H12 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

C 701316 004372-00 C07 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

R 701401 004454-00 R28 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

701585 004616-00 Q12 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701690 004719-00 E26 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
Z 701698 004723-00 Z44 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
701699 004724-00 R39 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701717 004737-00 Z42 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
L 701841 004859-00 L04 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
U 701891 004924-00 U05 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 Z43 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

B 701904 004931-00 B51 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701928 004965-00 R26 Nut;Hex;Flange;M14x1.5P;Zinc No Model Compatibility List $0.88 / Each

2
E 702004 005042-00 E37 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

R 702060 005087-00 R33 Washer;Flat;5.5x24.0x2.0t No Model Compatibility List $2.00 / Each

2
Z 702068 005097-00 Z46 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
702217 005330-00 Q11 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702236 005361-00 R31 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
702241 005366-00 R30 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702443 007041-A - Owners Manual No Model Compatibility List $9.57 / Each

1
702483 007964-00 Q10 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
702599 008889-E R01 DRIVE AXLE; No Model Compatibility List $79.51 / Each

8,10
702608 008977-C L01 Axle Wheel Front No Model Compatibility List $15.44 / Each

8
702618 009019-Z Q01 BOLT BH; M5X125 PARTIAL No Model Compatibility List $3.35 / Each

2
H 702790 009768-A2 H05 Folding Lock Latch Yes Model Compatibility List $57.49 / Each

1
702925 013308-Z E29 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

8
703565 015433-AB E01 Pedal Arm;Front No Model Compatibility List $145.44 / Each

8,9,3
704093 020216-Z Z47 Bolt;CB;M8x80;Partial No Model Compatibility List $3.35 / Each

2
704099 020241-A B49 Bolt;Eye Hook;1/4"-20UNCx85L-25L;Black Zinc No Model Compatibility List $1.72 / Each

2,4,5,6
R 704150 020340-00 R27 SCREW;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $3.64 / Each

704297 022341-00 Z22 Axle;Rear Wheel No Model Compatibility List $12.27 / Each

8
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

E 1000466 013308-Z E29 1 Roller Wheel Yes Model Compatibility List $49.99 / Each

8
E 1000478 014658-00 ECB 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each

10
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

B 1032473 020072-00 B26 1 Screw (Used) Yes Model Compatibility List $4.00 / Each

AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
E 1002977 013308-Z E29 Roller Wheel Yes Model Compatibility List $37.99 / Each

8
Upper Cover Mast (Used) 1037969 000182-00 Upper Cover Mast (Used) Yes Model Compatibility List $20.00 / Each

Console mast boot cover (used) 1037972 000188-Z Console mast boot cover (used) Yes Model Compatibility List $15.00 / Each

Z 976932 004926-00 Z43 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q11 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 986316 004616-00 Q12 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
