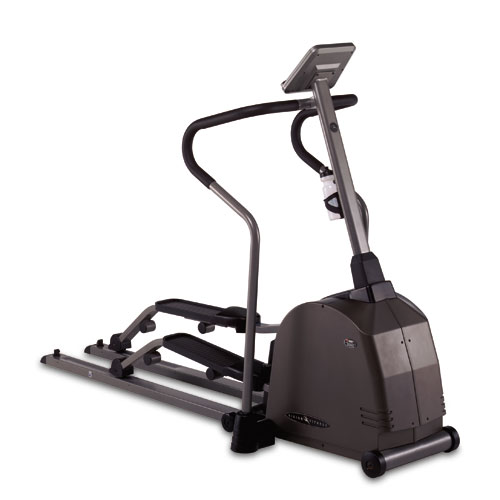

Vision Fitness - X6200HRC - 1998-2000

Repair Parts for Vision Fitness X6200HRC XXXXEP01

Brand: Vision Fitness

Category: Traditional

Type: Elliptical

Model Name: X6200HRC

Version: 1998-2000

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L03 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
700059 000226-00 Q09 Cover;Guide Rail No Model Compatibility List $30.34 / Each

9
700076 000294-B Q03 Cover;Pedal Arm;Right No Model Compatibility List $3.07 / Each

8,9,3
700132 000485-00 F08 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F07 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
E 700331 000983-00 E14 End Cap;Locking Cylinder Yes Model Compatibility List $3.82 / Each

9
L 700352 001113-00 L11 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
700475 001458-00 E11 TOE BOX TOP/POP PIN; Yes Model Compatibility List $12.71 / Each

12,13,14
E 700476 001459-00 E12 Roller Cover Yes Model Compatibility List $3.64 / Each

8,9
700480 001466-00 E32 Location Part;ADJ Pedal;BL;EP01 No Model Compatibility List $3.85 / Each

8,9
P 700710 001994-00 P04 Console Cable Yes Model Compatibility List $72.98 / Each

7,4,5,6
701023 003355-00 - POWER JACK; No Model Compatibility List $9.10 / Each

4,5,6
- 701042 003413-00 - Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701050 003478-A2 - Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
P 701056 003516-Z P07 Speed Sensor Wire;140mm Yes Model Compatibility List $9.88 / Each

4,5,6
R 701123 003918-A R07 BELT DRIVE TIMING; 1025-5M Yes Model Compatibility List $54.73 / Each

15,10
- 701160 004078-A2 - Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

701217 004180-00 R07 Drive Belt;Poly-V;440-J10 No Model Compatibility List $54.73 / Each

15,10
701315 004371-Z E33 Bolt;BH;M5X25 No Model Compatibility List $1.66 / Each

2
N 701316 004372-00 N08 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

R 701401 004454-00 R12 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

701591 004620-00 B31 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

E 701698 004723-00 E31 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
701717 004737-00 C07 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
L 701841 004859-00 L07 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
U 701891 004924-00 U05 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 C08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701928 004965-00 T06 Nut;Hex;Flange;M14x1.5P;Zinc No Model Compatibility List $0.88 / Each

2
E 702046 005075-00 E34 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

R 702060 005087-00 R16 Washer;Flat;5.5x24.0x2.0t No Model Compatibility List $2.00 / Each

2
L 702068 005097-00 L04 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
702217 005330-00 Q10 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

T 702240 005365-00 T07 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
702599 008889-E T01 DRIVE AXLE; No Model Compatibility List $79.51 / Each

8,10
702608 008977-C L01 Axle Wheel Front No Model Compatibility List $15.44 / Each

8
702618 009019-Z Q01 BOLT BH; M5X125 PARTIAL No Model Compatibility List $3.35 / Each

2
F 702790 009768-A2 F04 Folding Lock Latch Yes Model Compatibility List $57.49 / Each

1
702925 013308-Z E08 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

8
S 703436 014658-00 S01 ECB Brake Assembly Z3260121 Yes Model Compatibility List $89.00 / Each

10
703565 015433-AB AE1B Pedal Arm;Front No Model Compatibility List $145.44 / Each

8,9,3
704048 020133-00 E20 Screw;Countersunk;FH;M8X1.25PX12L;Stainless No Model Compatibility List $1.79 / Each

2
R 704150 020340-00 R11 SCREW;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $3.64 / Each

704271 022169-00 E30 Washer;Flat;8.5X15.5X0.1;Copper No Model Compatibility List $1.79 / Each

2
704297 022341-00 L09 Axle;Rear Wheel No Model Compatibility List $12.27 / Each

8

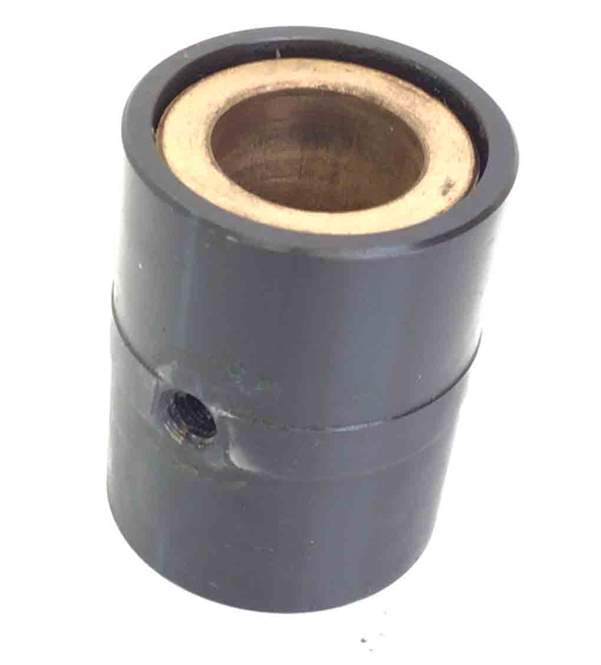

E 704359 023428-Z E18 BUSHING OIL LITE PEDAL ARM; Yes Model Compatibility List $43.58 / Each

8,9,3
704380 023553-Z R08 Housing Bearing Assembly D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $31.15 / Each

8,3
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

E 1000466 013308-Z E08 1 Roller Wheel Yes Model Compatibility List $49.99 / Each

8
S 1000478 014658-00 S01 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each

10
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

- 1004184 003478-A2 - AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
AC Adapter Power Supply Cord 1000439 003478-A2 or E161450 AC Adapter Power Supply Cord Yes Model Compatibility List $29.99 / Each
Out Of Stock
E 1002977 013308-Z E08 Roller Wheel Yes Model Compatibility List $37.99 / Each

8
S 1001818 014658-00 S01 Magnetic Brake Yes Model Compatibility List $59.99 / Each

10
B 911968 004620-00 B31 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Upper Cover Mast (Used) 1037969 000182-00 Upper Cover Mast (Used) Yes Model Compatibility List $20.00 / Each

Console mast boot cover (used) 1037972 000188-Z Console mast boot cover (used) Yes Model Compatibility List $15.00 / Each

E 1037974 001466-00 E32 Adjustment pop-pin (Used) Yes Model Compatibility List $10.00 / Each

8,9
C 976932 004926-00 C08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q10 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
