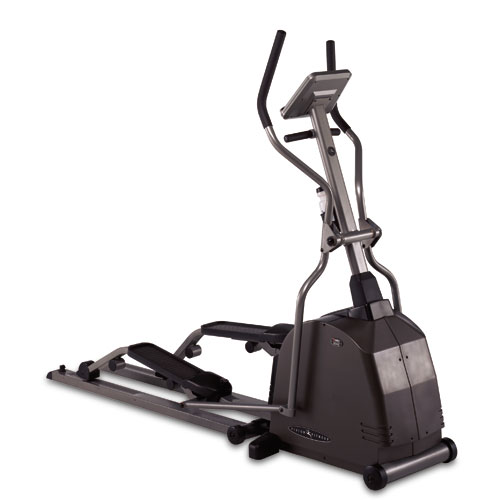

Vision Fitness - X6200HRT/DA - 2001

Repair Parts for Vision Fitness X6200HRT/DA MEP12

Brand: Vision Fitness

Category: Traditional

Type: Elliptical

Model Name: X6200HRT/DA

Version: 2001

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L03 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
700059 000226-00 Q09 Cover;Guide Rail No Model Compatibility List $30.34 / Each

9
700076 000294-B Q03 Cover;Pedal Arm;Right No Model Compatibility List $3.07 / Each

8,9,3
G 700108 000425-C G07 Cover;Right Stabilizer Yes Model Compatibility List $10.84 / Each

18
700132 000485-00 F08 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C10 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C09 Water Bottle No Model Compatibility List $9.88 / Each

1
C 700301 000901-00 C12 End Cap;Handlebar;20mm No Model Compatibility List $3.82 / Each

9,11
E 700331 000983-00 E14 End Cap;Locking Cylinder Yes Model Compatibility List $3.82 / Each

9
L 700352 001113-00 L06 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
G 700415 001293-00 G40 Screw Sleeve;AF001(M8)(>TS) Yes Model Compatibility List $7.20 / Each

2,3
700475 001458-00 E11 TOE BOX TOP/POP PIN; Yes Model Compatibility List $12.71 / Each

12,13,14

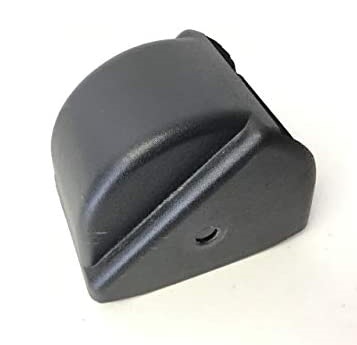

E 700476 001459-00 E12 Roller Cover Yes Model Compatibility List $3.64 / Each

8,9
700480 001466-00 E32 Location Part;ADJ Pedal;BL;EP01 No Model Compatibility List $3.85 / Each

8,9
P 700710 001994-00 P04 Console Cable Yes Model Compatibility List $72.98 / Each

7,4,5,6
701050 003478-A2 - Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6

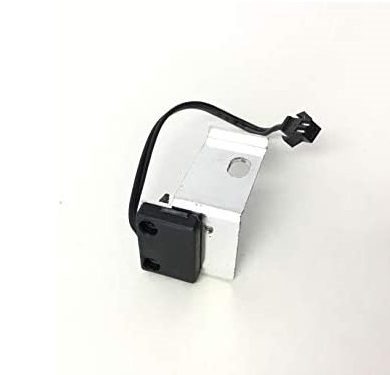

P 701056 003516-Z P07 Speed Sensor Wire;140mm Yes Model Compatibility List $9.88 / Each

4,5,6
R 701160 004078-A2 R51 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

701217 004180-00 R07 Drive Belt;Poly-V;440-J10 No Model Compatibility List $54.73 / Each

15,10
701315 004371-Z E33 Bolt;BH;M5X25 No Model Compatibility List $1.66 / Each

2
N 701316 004372-00 N08 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

P 701318 004374-00 P51 Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

701343 004389-00 C06 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
701585 004616-00 Q11 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

701597 004621-00 B31 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701699 004724-00 G28 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

L 701712 004729-00 L07 Screw;Hex Socket;BH;M8x1.25Px16L;Zn-B No Model Compatibility List $1.66 / Each

2
C 701726 004749-00 C07 Screw;Oval;Hex Socket;M8x1.25Px60L-20L No Model Compatibility List $1.90 / Each

2
E 701841 004859-00 E31 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
U 701891 004924-00 U05 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 G26 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701907 004933-00 R18 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

701928 004965-00 T06 Nut;Hex;Flange;M14x1.5P;Zinc No Model Compatibility List $0.88 / Each

2
701987 005025-00 E19 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

L 702004 005042-00 L04 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

L 702019 005054-00 L12 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
E 702046 005075-00 E34 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

R 702060 005087-00 R16 Washer;Flat;5.5x24.0x2.0t No Model Compatibility List $2.00 / Each

2
R 702070 005102-00 R19 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
G 702078 005110-00 G32 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
T 702177 005219-00 T08 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

702180 005222-00 G27 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702217 005330-00 Q10 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702226 005351-00 R15 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

T 702240 005365-00 T07 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
B 702511 008393-00 B28 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
702599 008889-E T01 DRIVE AXLE; No Model Compatibility List $79.51 / Each

8,10
702608 008977-C L01 Axle Wheel Front No Model Compatibility List $15.44 / Each

8
702618 009019-Z Q01 BOLT BH; M5X125 PARTIAL No Model Compatibility List $3.35 / Each

2
F 702790 009768-A2 F04 Folding Lock Latch Yes Model Compatibility List $57.49 / Each

1
702925 013308-Z E08 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

8
S 703436 014658-00 S01 ECB Brake Assembly Z3260121 Yes Model Compatibility List $89.00 / Each

10
704048 020133-00 E20 Screw;Countersunk;FH;M8X1.25PX12L;Stainless No Model Compatibility List $1.79 / Each

2
704093 020216-Z E26 Bolt;CB;M8x80;Partial No Model Compatibility List $3.35 / Each

2
R 704150 020340-00 R11 SCREW;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $3.64 / Each

704271 022169-00 E30 Washer;Flat;8.5X15.5X0.1;Copper No Model Compatibility List $1.79 / Each

2
704297 022341-00 L09 Axle;Rear Wheel No Model Compatibility List $12.27 / Each

8
704381 023557-Z E18 Bearing;Needle;Pedal Arm No Model Compatibility List $69.97 / Each

8,9,3
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

ff-1001 Switch 1018915 003329-00 0 1 ff-1001 Switch Yes Model Compatibility List $19.49 / Each
Out Of Stock 		6
Wire Harness Power Input Jack (Used) 1024190 024446-A P06 1 Wire Harness Power Input Jack (Used) No Model Compatibility List $25.99 / Each
Out Of Stock 		1,4
Display Console (Used) 1000431 019704-A AN1 1 Display Console (Used) Yes Model Compatibility List $183.99 / Each
Out Of Stock 		51
E 1000466 013308-Z E08 1 Roller Wheel Yes Model Compatibility List $49.99 / Each

8
S 1000478 014658-00 S01 1 Magnetic Brake ECB (Used) Yes Model Compatibility List $69.99 / Each

10
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

- 1004184 003478-A2 - AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
E 1002977 013308-Z E08 Roller Wheel Yes Model Compatibility List $37.99 / Each

8
S 1001818 014658-00 S01 Magnetic Brake Yes Model Compatibility List $59.99 / Each

10
Upper Cover Mast (Used) 1037969 000182-00 Upper Cover Mast (Used) Yes Model Compatibility List $20.00 / Each

Console mast boot cover (used) 1037972 000188-Z Console mast boot cover (used) Yes Model Compatibility List $15.00 / Each

E 1037974 001466-00 E32 Adjustment pop-pin (Used) Yes Model Compatibility List $10.00 / Each

8,9
Flywheel (Used) 1037990 013140-Z Flywheel (Used) Yes Model Compatibility List $89.00 / Each

Display Console (Used) 1037967 019704-A Display Console (Used) Yes Model Compatibility List $199.00 / Each
Out Of Stock 		51
G 976932 004926-00 G26 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q10 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 986316 004616-00 Q11 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
P 986204 004374-00 P51 Button Head Phillip Screw (New) No Model Compatibility List $12.99 / Each
Out Of Stock
B 957090 004621-00 B31 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
