Weider - 500

Repair Parts for Weider 500 831.150731

Brand: Weider

Category: Benches

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

831.150731

Model Name: 500

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
100886	103087	.		CABLE CLIP	No	Model Compatibility List	$15.20 / Each	2,4,5,6,1
104029	105495	.		3/8" WASHER	No	Model Compatibility List	$0.15 / Each	2
106008	112125	.		38MM SQUARE INT ENDCAP	No	Model Compatibility List	$1.29 / Each	9,4,5,6
104470	112560	44		GRIP	Yes	Model Compatibility List	$2.24 / Each	11
100814	115366	9		TRANSPORT HANDLE ENDCAP	No	Model Compatibility List	$0.55 / Each	9,4,5,6,11
101666	012002	.		M8 NYLON LOCKNUT	No	Model Compatibility List	$0.46 / Each
102045	012033	.		M10 NYLON LOCKNUT	No	Model Compatibility List	$2.22 / Each
106584	120696	12		FRAME CROSSBAR ENDCAP	No	Model Compatibility List	$3.33 / Each	9,3,4,5,6
104626	120733	23		25MM ROUND INNER CAP	No	Model Compatibility List	$1.63 / Each	9
101287	012082	.		5/16" NYLON LOCK NUT	Yes	Model Compatibility List	$0.22 / Each
122940	121503	.		M8 X 64MM BOLT	No	Model Compatibility List	$5.55 / Each	2
113814	122321	.		SPRING CLIP	No	Model Compatibility List	$15.46 / Each	2

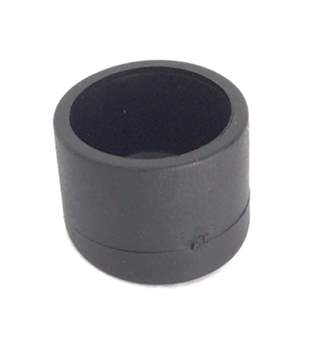

113812	123396	.		25MM ROUND ANGLED CAP	Yes	Model Compatibility List	$1.67 / Each	9
119570	013043	.		SEAT KNOB BOLT	No	Model Compatibility List	$6.01 / Each
132239	013105	.		M8 X 48MM BOLT	No	Model Compatibility List	$2.89 / Each
119569	013118	.		M8 X 16MM SEAT BOLT	No	Model Compatibility List	$1.02 / Each
137562	013128	.		SCREW	No	Model Compatibility List	$1.49 / Each
147362	132095	.		M10 X 60MM BOLT	No	Model Compatibility List	$6.23 / Each	2
124705	013414	.		CARRIAGE BOLT	No	Model Compatibility List	$0.59 / Each
100664	135575	.		M6 X 38MM BOLT	No	Model Compatibility List	$6.66 / Each	1
116773	135884	.		M6 X 16MM SCREW	No	Model Compatibility List	$1.33 / Each	2
162196	140239	22		FOAM PAD, 5 3/4"	Yes	Model Compatibility List	$20.79 / Each	12,13,14
102276	014041	.		IDLER ARM WASHER	No	Model Compatibility List	$0.12 / Each
104040	014127	.		1/4" WASHER	Yes	Model Compatibility List	$1.20 / Each
104532	150842	#		WARNING DECAL, BLACK	No	Model Compatibility List	$2.76 / Each	7,3,4,5,6
165306	162511	.		USER-S MANUAL, 15073	No	Model Compatibility List	$5.73 / Each	1
104482	163633	.		90MM PULLEY	No	Model Compatibility List	$71.96 / Each	8
164058	171438	#		WT CARRIAGE WARNING DECAL	No	Model Compatibility List	$1.97 / Each	7,3
000018	135575	84	1	Bolt M6 X 38MM	No	Model Compatibility List	$15.99 / Each	1
1000302	149701	0	1	Walking Running Belt Treadbelt	No	Model Compatibility List	$82.16 / Each	15
1029211	163633	24	2	3 1/2" Pulley Cable (Used)	No	Model Compatibility List	$49.00 / Each	8
1011501	012082	0	1	Locknut 5/16"	Yes	Model Compatibility List	$11.99 / Each
