Weider - POWER GUIDE

Repair Parts for Weider POWER GUIDE X20

Brand: Weider

Category: Accessories

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

X20

Model Name: POWER GUIDE

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
117344	101263	77		3/8-16X4" Hex Bolt	No	Model Compatibility List	$3.55 / Each	2
124654	101278	43		5/16" X 3" BOLT	No	Model Compatibility List	$1.16 / Each	2
124541	103053	7		5/16" X 2.5" SCREW	No	Model Compatibility List	$0.92 / Each	2
100886	103087	57		CABLE CLIP	No	Model Compatibility List	$15.20 / Each	2,4,5,6,1
163789	103758	11		1/4" X 1/2" RND HD SCREW	No	Model Compatibility List	$0.41 / Each Out Of Stock	2
117166	208378	23		FOAM PAD, 3" X 5 1/2"	No	Model Compatibility List	$28.28 / Each	3,12
101902	103833	19		POST CAP	No	Model Compatibility List	$4.69 / Each	1
118655	104049	51		3/8" X 3.5" BOLT	No	Model Compatibility List	$1.63 / Each	2
104029	105495	5		3/8" WASHER	No	Model Compatibility List	$0.15 / Each	2
124418	105674	83		MOTOR TENSION WASHER	No	Model Compatibility List	$0.18 / Each	2
117640	107503	67		MOTOR BOLT 3/8-16X5"	Yes	Model Compatibility List	$6.51 / Each	1
104631	108778	8		BRACKET RETAINER	No	Model Compatibility List	$0.88 / Each	2,3,4,5,6
104470	112560	27		GRIP	Yes	Model Compatibility List	$2.24 / Each	11
102151	113666	24		1 3/4" SQUARE INNER CAP	Yes	Model Compatibility List	$1.23 / Each	9
121905	113814	14		MOTOR BOLT	No	Model Compatibility List	$0.74 / Each	2
104529	115177	59		HANDLE	No	Model Compatibility List	$40.40 / Each	11
100814	115366	10		TRANSPORT HANDLE ENDCAP	No	Model Compatibility List	$0.55 / Each	9,4,5,6,11
121626	116868	58		CHAIN FOR PULY BKT, 12"L	No	Model Compatibility List	$11.89 / Each	1
114215	118475	9		25MM ROUND INNER CAP	No	Model Compatibility List	$1.40 / Each	9
117170	119192	15		SEAT KNOB	No	Model Compatibility List	$3.96 / Each Out Of Stock	12,13,14
163844	119217	54		4"L RND PIVOT BUSHING	No	Model Compatibility List	$5.32 / Each	8
142115	119222	66		METAL SPACER	No	Model Compatibility List	$2.11 / Each	2,3,4,5,6
100237	119439	75		ELECTRONIC BRACKET NUT	No	Model Compatibility List	$0.18 / Each	2,3,4,5,6
104342	119445	39		1.25" TEK SCREW	No	Model Compatibility List	$1.46 / Each	2
114759	120808	30		CURL BAR CAP	No	Model Compatibility List	$1.20 / Each	9
101287	012082	1		5/16" NYLON LOCK NUT	Yes	Model Compatibility List	$0.22 / Each
102840	012090	3		1/4" NUT	No	Model Compatibility List	$1.54 / Each
101294	012108	2		3/8" NYLON LOCKNUT	No	Model Compatibility List	$0.33 / Each
121971	130868	68		PIVOT BOLT 3/8-16X1.75X.5	Yes	Model Compatibility List	$2.07 / Each	2,8
124798	013211	76		MOTOR MOUNTING BOLT	No	Model Compatibility List	$0.35 / Each
124530	013231	49		SCREW	No	Model Compatibility List	$1.73 / Each
114110	132819	69		CABLE TRAP BKT, 3.5"PULY	No	Model Compatibility List	$3.40 / Each	4,5,6
107103	013303	44		5/16 X 1" SCREW,BKT/CNSL	No	Model Compatibility List	$0.35 / Each
103373	133945	82		3/8" HEX LOCK NUT	Yes	Model Compatibility List	$0.34 / Each	2
124705	013414	64		CARRIAGE BOLT	No	Model Compatibility List	$0.59 / Each
123656	013574	78		3/8" X 2.25" BOLT	No	Model Compatibility List	$1.61 / Each
106378	139996	81		HEX NUT	No	Model Compatibility List	$0.29 / Each	2
102276	014041	6		IDLER ARM WASHER	No	Model Compatibility List	$0.12 / Each
123654	204031	74		V-PULLEY	No	Model Compatibility List	$40.46 / Each	8

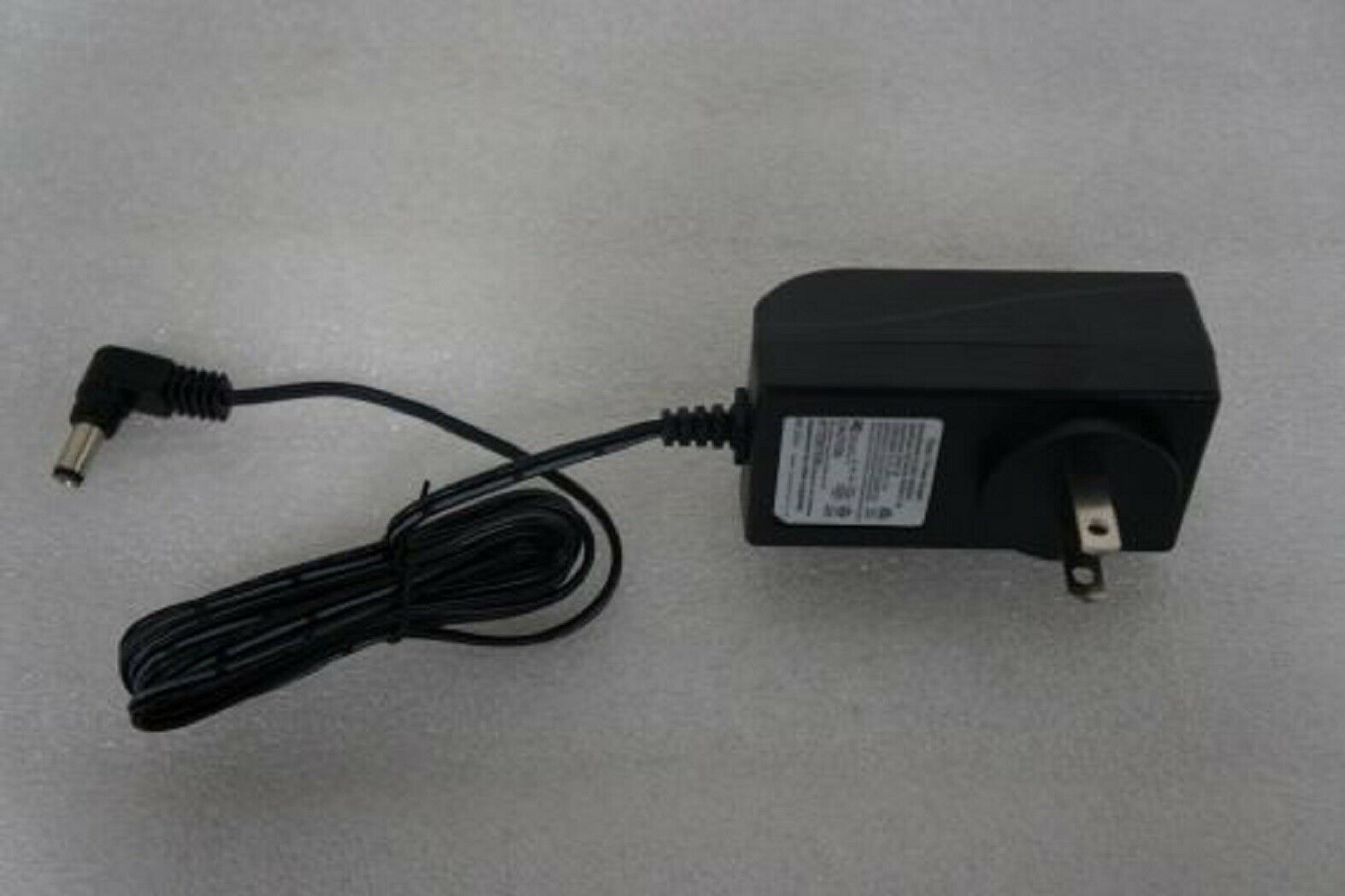

1001766	1000231159	0	1	Adapter DC	Yes	Model Compatibility List	$81.99 / Each

View Drawing
