Weider - PRO 545

Repair Parts for Weider PRO 545 831.150470

Brand: Weider

Category: Benches

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

831.150470

Model Name: PRO 545

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
102151	113666	#		1 3/4" SQUARE INNER CAP	Yes	Model Compatibility List	$1.23 / Each	9
104626	120733	.		25MM ROUND INNER CAP	No	Model Compatibility List	$1.63 / Each	9
113814	122321	.		SPRING CLIP	No	Model Compatibility List	$15.46 / Each	2
113812	123396	.		25MM ROUND ANGLED CAP	Yes	Model Compatibility List	$1.67 / Each	9
102208	130287	.		M10 X 75MM BOLT	No	Model Compatibility List	$11.75 / Each	2
164088	132652	.		M8 X 58MM CARRIAGE BOLT	No	Model Compatibility List	$10.57 / Each	2
102175	013374	.		M10 X 70MM BOLT	No	Model Compatibility List	$5.75 / Each
114477	133759	.		M10 X 86MM BOLT	No	Model Compatibility List	$16.45 / Each	2
114029	013531	.		M6 X 63MM SCREW	No	Model Compatibility List	$8.46 / Each
168899	139869	#		USER-S MANUAL	No	Model Compatibility List	$16.24 / Each	1
114480	139880	.		M10 X 154MM BOLT	No	Model Compatibility List	$16.80 / Each	2
100027	140206	.		M10 FLAT WASHER	No	Model Compatibility List	$1.33 / Each	2
114549	140208	.		M6 X 16MM SCREW	No	Model Compatibility List	$2.32 / Each	2
141800	140226	.		M6 X 50MM SCREW	No	Model Compatibility List	$1.62 / Each	2
114472	140234	.		19MM ROUND INT ENDCAP	No	Model Compatibility List	$1.29 / Each	9,4,5,6
162196	140239	48		FOAM PAD, 5 3/4"	Yes	Model Compatibility List	$20.79 / Each	12,13,14
165097	140242	51		CABLE	Yes	Model Compatibility List	$95.56 / Each	4,5,6
100042	014063	.		1/4" FLAT WASHER	No	Model Compatibility List	$1.03 / Each
100584	014100	.		M8 CURVE WASHER	No	Model Compatibility List	$0.88 / Each
165099	141042	#		CN,ASSY UPDATE	No	Model Compatibility List	$1.02 / Each	1
165098	142651	#		FIXKIT, EXT TUBE	No	Model Compatibility List	$13.59 / Each	3
100540	148710	.		M10 LOCKNUT	No	Model Compatibility List	$1.57 / Each	2
104532	150842	#		WARNING DECAL, BLACK	No	Model Compatibility List	$2.76 / Each	7,3,4,5,6
104632	230475	.		SMALL PULLEY	No	Model Compatibility List	$71.96 / Each	8
116070	328739	3		SMALL AXLE CAP	No	Model Compatibility List	$0.46 / Each	8,9
1029229	PRO545-78"CLPTWS	0	1	78" Cable Lat Pulldown to Weight Stack (Used)	No	Model Compatibility List	$59.00 / Each Out Of Stock
1029213	120294	0	1	Weight Plate 12.5lb (Used)	No	Model Compatibility List	$29.00 / Each Out Of Stock	3
1029233	122022	46	1	PIN SELF-LOCK 5 1/2" (Used)	No	Model Compatibility List	$10.00 / Each Out Of Stock	1
1029212	125919	0	1	Weight Header 6LB (Used)	No	Model Compatibility List	$49.00 / Each	3
1029209	139882	0	1	Guid Rod Plastic Washer (Used)	No	Model Compatibility List	$5.00 / Each	1

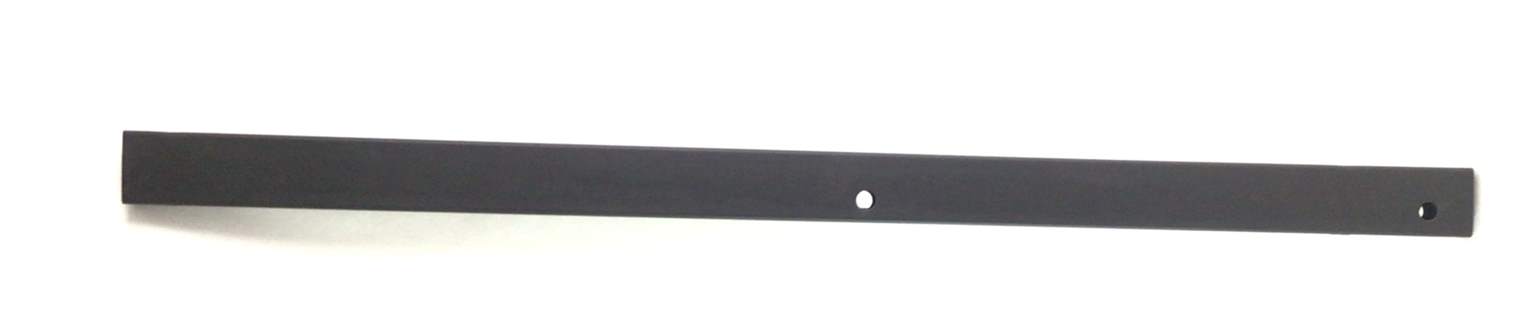

1029217	140216	25		TUBE BACKREST DKNGY (Used)	Yes	Model Compatibility List	$20.00 / Each	1

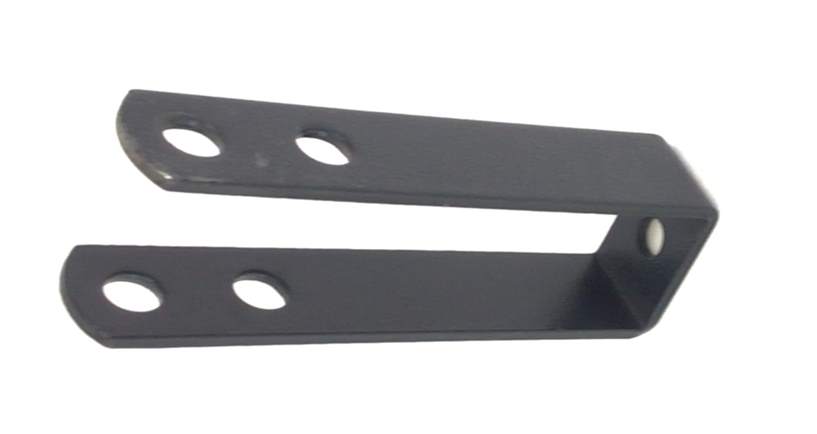

1029234	140221	30		Bracket U Pulley Black (Used)	Yes	Model Compatibility List	$15.00 / Each Out Of Stock	1

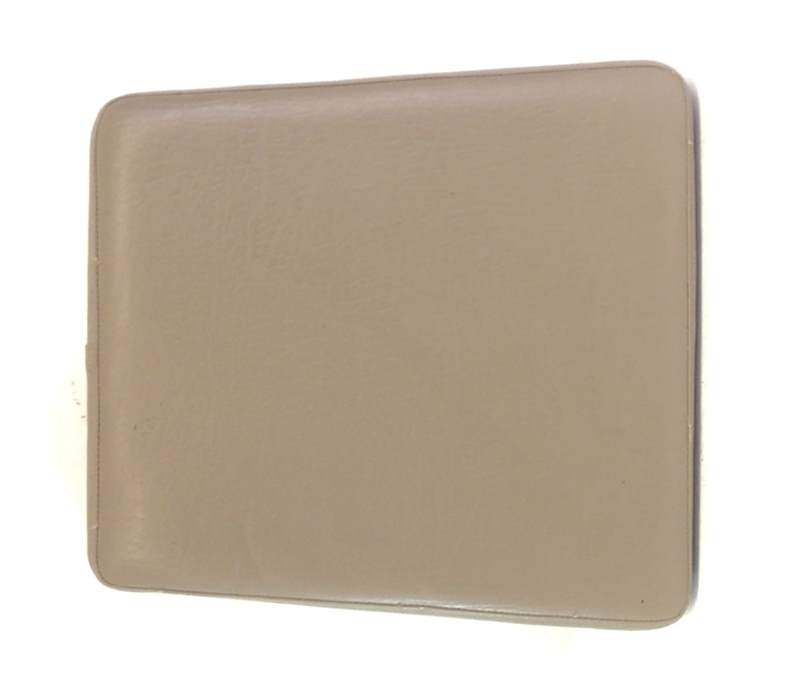

1029214	140225	34	1	PAD Cushion WEDGE 11/14X14.0 (Used)	No	Model Compatibility List	$40.00 / Each Out Of Stock	1
1029210	140228	37	2	Tube Weight Stop Chrome (Used)	Yes	Model Compatibility List	$30.00 / Each Out Of Stock	1
1029216	140229	0	1	78" x 25mm Guide Rod for weight plate Home Gym (Used)	No	Model Compatibility List	$69.00 / Each Out Of Stock	1

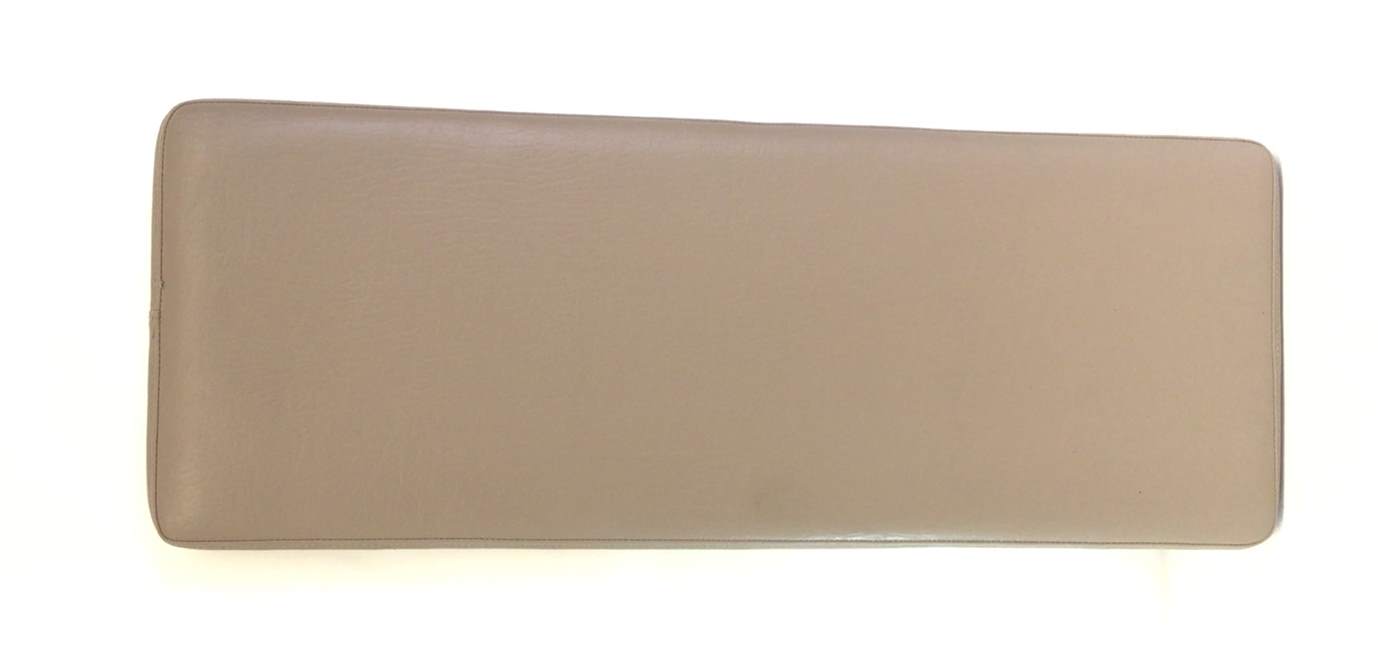

1029215	144920	0	1	BACKREST PAD FOAM TAUPE (Used)	No	Model Compatibility List	$59.00 / Each	1
1029230	147592	0	1	Chain w snap link (Used)	Yes	Model Compatibility List	$9.99 / Each	1
1029232	155878	0	1	V groove pulley 3.5" (Used)	No	Model Compatibility List	$49.00 / Each Out Of Stock	8
1029211	163633	24	2	3 1/2" Pulley Cable (Used)	No	Model Compatibility List	$49.00 / Each	8
1029840	PRO545-LERWDR22	0	1	Leg Extenson Rest Weldent Diagram Reference 22 (Used)	No	Model Compatibility List	$29.99 / Each Out Of Stock	1
