Weider - T28

Repair Parts for Weider T28 WEBE11880

Brand: Weider

Category: Fixed Bench

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

WEBE11880

Model Name: T28

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
100886	103087	37		CABLE CLIP	No	Model Compatibility List	$15.20 / Each	2,4,5,6,1
101902	103833	7		POST CAP	No	Model Compatibility List	$4.69 / Each	1
100396	104838	#		LUBE, GREASE	No	Model Compatibility List	$6.19 / Each	1,15
100814	115366	12		TRANSPORT HANDLE ENDCAP	No	Model Compatibility List	$0.55 / Each	9,4,5,6,11
106302	117544	52		40MM X 50MM INT ENDCAP	Yes	Model Compatibility List	$3.12 / Each	1
100031	119425	.		3/8" HEX JAM NUT	Yes	Model Compatibility List	$0.55 / Each	2
122035	120354	.		WHEEL BOLT	No	Model Compatibility List	$1.89 / Each Out Of Stock	2,8
101661	012056	.		5/16" NYLON LOCKNUT	No	Model Compatibility List	$0.48 / Each
104626	120733	16		25MM ROUND INNER CAP	No	Model Compatibility List	$1.63 / Each	9
101792	121446	.		IDLER BOLT	Yes	Model Compatibility List	$0.96 / Each	2,8
113814	122321	.		SPRING CLIP	No	Model Compatibility List	$15.46 / Each	2
113812	123396	18		25MM ROUND ANGLED CAP	Yes	Model Compatibility List	$1.67 / Each	9
106102	126650	28		RUBBER BUMPER	Yes	Model Compatibility List	$3.01 / Each	1
118978	127948	.		UPRIGHT BOLT	No	Model Compatibility List	$1.10 / Each	2,3
163782	129186	#		EXERCISE CHART	No	Model Compatibility List	$0.90 / Each	1
119594	129187	22		3/8" X 2" CARR BOLT	No	Model Compatibility List	$1.10 / Each Out Of Stock	2
100149	013300	29		#8 X 3/4" WASHER HD SCREW	Yes	Model Compatibility List	$1.28 / Each
106621	013375	.		3/8" BOLT	No	Model Compatibility List	$4.17 / Each
115963	013442	19		BELT ADJUSTMENT SCREW	No	Model Compatibility List	$1.39 / Each
100450	013547	.		IDLER ARM BOLT	No	Model Compatibility List	$2.89 / Each
104347	013578	10		M10 - 3/8-16 X 2.25" HEX EAD WHEEL BOLT	Yes	Model Compatibility List	$7.28 / Each
100472	014073	.		5/16" WASHER	Yes	Model Compatibility List	$1.25 / Each
100263	014132	.		IDLER WHEEL WASHER	No	Model Compatibility List	$2.43 / Each
121656	142412	.		LOCK KNOB	No	Model Compatibility List	$11.33 / Each	1
147137	143843	55		WEIGHT STOP	No	Model Compatibility List	$18.44 / Each	3

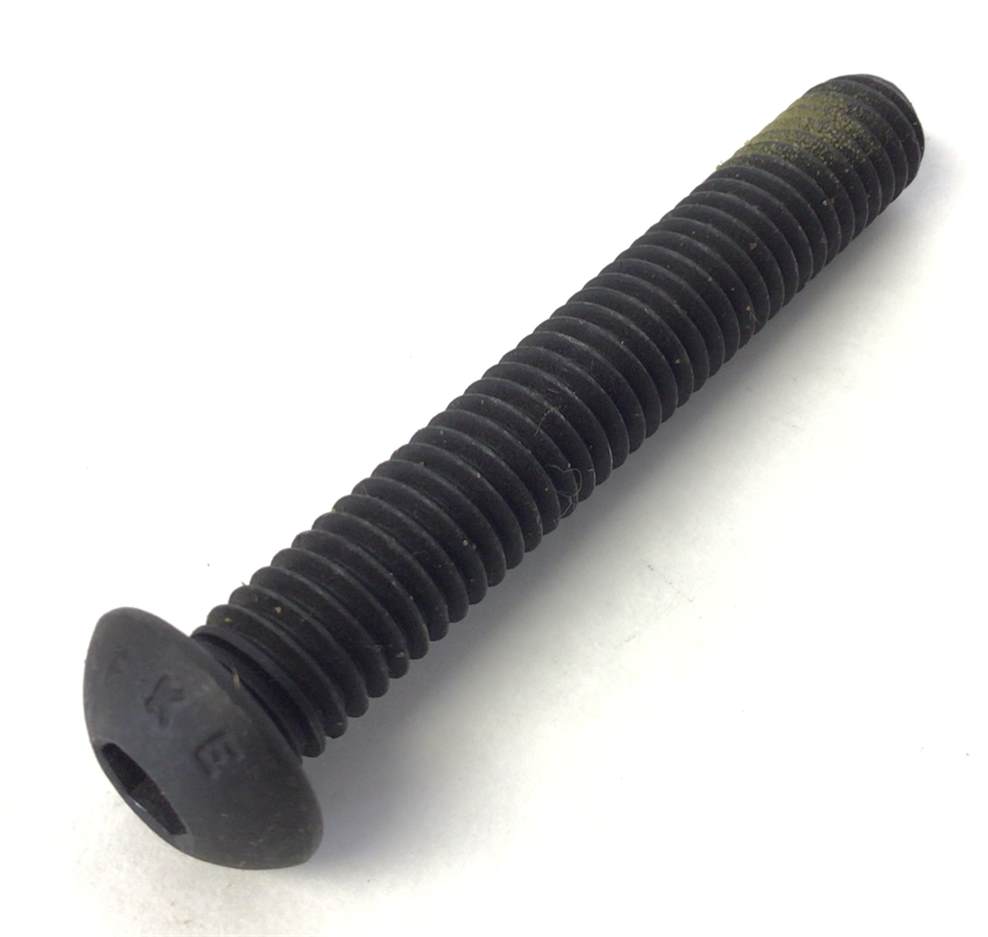

164329	146431	3		1/4" X 1/2" SCREW	No	Model Compatibility List	$0.72 / Each	2
116690	148932	.		3/8" SQUARE NUT	No	Model Compatibility List	$0.53 / Each	2
100695	152478	.		M8 X 25MM WASHER	Yes	Model Compatibility List	$0.75 / Each	2
164330	153277	#		WT CARRIAGE WARNING DECAL	No	Model Compatibility List	$4.82 / Each	7,3
164331	153351	.		USER-S MANUAL	No	Model Compatibility List	$4.27 / Each	1
114732	157721	.		SMALL CABLE TRAP	No	Model Compatibility List	$6.72 / Each	4,5,6
100602	166909	#		PAD FRAME WARNING DECAL	No	Model Compatibility List	$1.84 / Each	7,3,12,13,14,1
100564	218557	#		DECAL, GENERAL WARNING	No	Model Compatibility List	$2.11 / Each	7,3
104632	230475	42		SMALL PULLEY	No	Model Compatibility List	$71.96 / Each	8
013270	013375	0	1	Incline Motor Bolt	No	Model Compatibility List	$18.99 / Each
013272	013547	0	1	Bolt 3/8" X 1"	No	Model Compatibility List	$12.99 / Each
1010890	119425	38	1	Nylock Nut	Yes	Model Compatibility List	$0.55 / Each	2
1011501	012082	0	1	Locknut 5/16"	Yes	Model Compatibility List	$11.99 / Each
1011523	133945	0	1	Nylock Jam Nut 3/8"	Yes	Model Compatibility List	$11.99 / Each	2

View Drawing
