Replacement Parts for Weider ULTRA FLEX CXT%2fFLEX 20220 Home Gyms

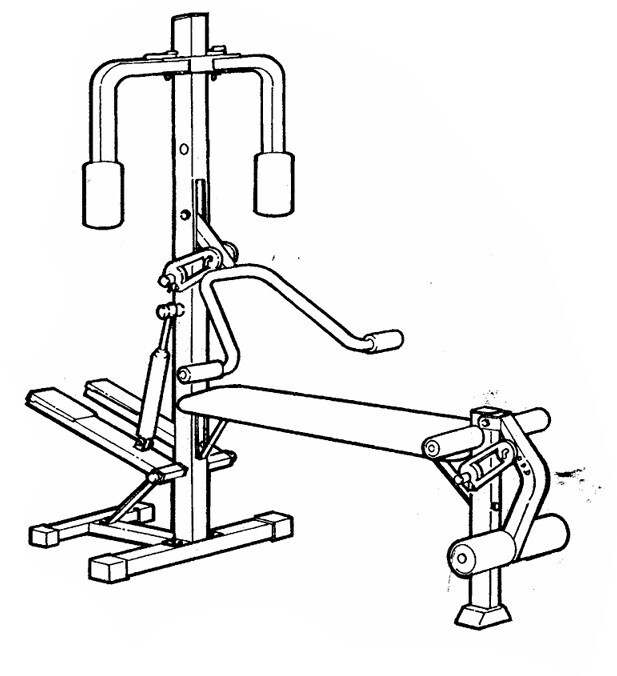

Weider - ULTRA FLEX CXT%2fFLEX

Repair Parts for Weider ULTRA FLEX CXT%2fFLEX 831.20220

Brand: Weider

Category: Home Gyms

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

831.20220

Model Name: ULTRA FLEX CXT%2fFLEX

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
124654	101278	31		5/16" X 3" BOLT	No	Model Compatibility List	$1.16 / Each	2
124541	103053	32		5/16" X 2.5" SCREW	No	Model Compatibility List	$0.92 / Each	2
163934	103163	40		1/4"X1 3/4" CARRIAGE BOLT	No	Model Compatibility List	$0.89 / Each	2
117166	208378	10		FOAM PAD, 3" X 5 1/2"	No	Model Compatibility List	$28.28 / Each	3,12
101902	103833	62		POST CAP	No	Model Compatibility List	$4.69 / Each	1
118655	104049	46		3/8" X 3.5" BOLT	No	Model Compatibility List	$1.63 / Each	2
104029	105495	48		3/8" WASHER	No	Model Compatibility List	$0.15 / Each	2
104631	108778	76		BRACKET RETAINER	No	Model Compatibility List	$0.88 / Each	2,3,4,5,6
116081	112488	77		PUSH NUT	Yes	Model Compatibility List	$1.92 / Each	2
100814	115366	63		TRANSPORT HANDLE ENDCAP	No	Model Compatibility List	$0.55 / Each	9,4,5,6,11
119560	120694	68		WHEEL FRAME ENDCAP	No	Model Compatibility List	$3.01 / Each	8,9,3,4,5,6
104626	120733	66		25MM ROUND INNER CAP	No	Model Compatibility List	$1.63 / Each	9
114759	120808	64		CURL BAR CAP	No	Model Compatibility List	$1.20 / Each	9
101287	012082	39		5/16" NYLON LOCK NUT	Yes	Model Compatibility List	$0.22 / Each
102840	012090	44		1/4" NUT	No	Model Compatibility List	$1.54 / Each
101294	012108	47		3/8" NYLON LOCKNUT	No	Model Compatibility List	$0.33 / Each
103133	013210	33		MOTOR BOLT	No	Model Compatibility List	$0.56 / Each
124705	013414	34		CARRIAGE BOLT	No	Model Compatibility List	$0.59 / Each
102276	014041	38		IDLER ARM WASHER	No	Model Compatibility List	$0.12 / Each
104040	014127	43		1/4" WASHER	Yes	Model Compatibility List	$1.20 / Each
176159	CNN-1213	A		OWNER-S MANUAL CNN-1213	No	Model Compatibility List	$3.68 / Each	1
163788	ZZ-0004	14		RESISTANCE CYLINDER	No	Model Compatibility List	$102.95 / Each Out Of Stock	10
1029828	120822	40	2	Endcap Square External (Used)	No	Model Compatibility List	$5.00 / Each Out Of Stock	1
1011501	012082	0	1	Locknut 5/16"	Yes	Model Compatibility List	$11.99 / Each

View Drawing
