Weslo - STEPFIT CLIMBER

Repair Parts for Weslo STEPFIT CLIMBER WLEL31216C0

Brand: Weslo

Category: Residential Ellipticals

Type: Elliptical

Model Name: STEPFIT CLIMBER

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
THRUST WASHER 101351 116014 25 THRUST WASHER No Model Compatibility List $8.36 / Each

2,12,13,14,1
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
M6 LOCKNUT 101429 012142 66 M6 LOCKNUT No Model Compatibility List $1.98 / Each

101859 121642 46 HANDLEBAR CAP No Model Compatibility List $0.96 / Each

9,11,46
105930 129144 59 CABLE PULLEY WASHER No Model Compatibility List $2.70 / Each

2,8,4,5,6
WIRE TIE 100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
M10 LOCKNUT 100540 148710 74 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
121243 180148 80 M8 X 40MM BOLT No Model Compatibility List $7.91 / Each

2
M8 X 35MM SCREW 100785 183870 68 M8 X 35MM SCREW Yes Model Compatibility List $1.61 / Each

2
STABILIZER ENDCAP 152377 185674 17 STABILIZER ENDCAP Yes Model Compatibility List $14.86 / Each

9
HANDLEBAR CAP 101335 186477 16 HANDLEBAR CAP Yes Model Compatibility List $3.36 / Each

9,11,46
MAGNET 100223 195476 71 MAGNET No Model Compatibility List $11.88 / Each

8,1
M4 X 16MM SCREW 100586 195562 82 M4 X 16MM SCREW Yes Model Compatibility List $1.49 / Each

2
171653 200327 15 GRIP FOAM No Model Compatibility List $2.06 / Each

11
M4 X 10MM SCREW 100889 208320 67 M4 X 10MM SCREW Yes Model Compatibility List $0.32 / Each

2
109404 224545 27 M8 SMALL WASHER No Model Compatibility List $4.80 / Each

2,45
110667 228191 76 M6 X 30MM BUTTON SCREW No Model Compatibility List $1.91 / Each

2
M8 X 16MM SCREW 100985 237612 78 M8 X 16MM SCREW No Model Compatibility List $0.96 / Each

2
SCREW M6 - 1.0 X 14MM 101024 243878 81 SCREW M6 - 1.0 X 14MM Yes Model Compatibility List $4.65 / Each

2
M8 X 18MM BOLT 109399 247329 79 M8 X 18MM BOLT No Model Compatibility List $2.16 / Each

2
101948 248340 62 FLAT WASHER No Model Compatibility List $0.77 / Each

2
M8 X 38MM BOLT 115889 251830 63 M8 X 38MM BOLT Yes Model Compatibility List $3.08 / Each

2
M10 X 73MM BUTTON BOLT 108949 258847 75 M10 X 73MM BUTTON BOLT No Model Compatibility List $4.18 / Each

1
101867 297255 # 5MM ALLEN WRENCH No Model Compatibility List $5.51 / Each

2,1
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

2,1
115005 326943 47 FOAM GRIP No Model Compatibility List $8.11 / Each

11
M8 LOCKNUT, DECK MTG 100099 333350 69 M8 LOCKNUT, DECK MTG Yes Model Compatibility List $1.44 / Each

2,3
M8 X 14MM SHOULDER SCREW 105123 347975 29 M8 X 14MM SHOULDER SCREW Yes Model Compatibility List $4.31 / Each

2
155151 360482 18 REAR LEVELING FOOT No Model Compatibility List $20.53 / Each

9
171690 360949 65 M5 X 12MM FLANGE SCREW No Model Compatibility List $0.23 / Each

2
133933 371472 52 M4 X 10MM FLAT HEAD SCREW No Model Compatibility List $0.24 / Each

2
104528 373258 77 M10 X 20MM BOLT No Model Compatibility List $3.91 / Each

2
131240 379569 73 M8 X 68MM SCREW No Model Compatibility List $6.26 / Each

2
171682 380158 53 CABLE No Model Compatibility List $14.71 / Each

4,5,6
171681 380160 51 BRAKE DISC No Model Compatibility List $4.40 / Each

1
171668 380162 36 RESISTANCE AXLE No Model Compatibility List $8.58 / Each

8,10
171691 380473 70 GROMMET No Model Compatibility List $0.69 / Each

2
171686 380543 57 SNAP SPRING No Model Compatibility List $0.69 / Each

2
171680 381029 50 PULLEY No Model Compatibility List $15.69 / Each

8
RESISTANCE CYLINDER 171647 381076 9 RESISTANCE CYLINDER No Model Compatibility List $110.10 / Each

10
171640 381287 1 FRAME No Model Compatibility List $107.57 / Each

3
171648 381293 10 BASE LEG No Model Compatibility List $75.08 / Each

3
171646 381298 8 LEFT PEDAL LEG No Model Compatibility List $56.59 / Each

8,9
171645 381304 7 RIGHT PEDAL LEG No Model Compatibility List $56.59 / Each

8,9
171642 381307 3 LEFT CLIMBING CARRIAGE No Model Compatibility List $49.20 / Each

1
171641 381312 2 RIGHT CLIMBING CARRIAGE No Model Compatibility List $49.20 / Each

1
171643 381314 4 HANDLEBAR No Model Compatibility List $40.46 / Each

11
171669 381324 37 FORK BRACKET No Model Compatibility List $17.90 / Each

2,3,4,5,6
171652 381328 14 GRIP No Model Compatibility List $31.12 / Each

11
171696 381332 13 FRONT STABILIZER No Model Compatibility List $220.51 / Each

1
171649 381336 11 BASE BRACE No Model Compatibility List $11.52 / Each

3,4,5,6
171664 381340 32 FRONT FRAME LOWER COVER No Model Compatibility List $10.79 / Each

9,3
171657 381341 22 FRONT BASE COVER No Model Compatibility List $8.09 / Each

9,3
171656 381342 21 REAR BASE COVER No Model Compatibility List $7.19 / Each

9,3
171666 381347 34 KNOB No Model Compatibility List $3.71 / Each

1
171658 381348 23 BASE LEG COVER No Model Compatibility List $1.63 / Each

9,3
171662 381349 30 MAGNET BRACKET No Model Compatibility List $1.63 / Each

2,8,3,4,5,6
171661 381350 28 PEDAL LEG COVER No Model Compatibility List $0.69 / Each

8,9
171659 381351 24 BASE POST COVER No Model Compatibility List $1.16 / Each

9,3,12,13,14
171660 381352 26 PEDAL LEG BUSHING No Model Compatibility List $1.39 / Each

8,9
171670 381353 38 RESISTANCE BRACKET No Model Compatibility List $1.63 / Each

2,3,4,5,6,10
171677 381354 45 CONSOLE BRACKET CAP No Model Compatibility List $1.63 / Each

7,2,9,3,4,5,6
171689 381355 61 PEDAL LEG CAP No Model Compatibility List $1.16 / Each

8,9
171679 381356 49 HANDLEBAR BRACKET No Model Compatibility List $1.39 / Each

2,3,4,5,6,11
171684 381357 55 HANDLEBAR BUSHING No Model Compatibility List $2.55 / Each

8,11
171685 381358 56 SNAP BUTTON No Model Compatibility List $1.63 / Each

1

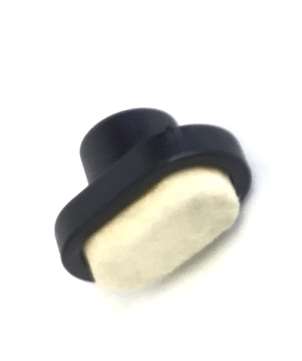

BRAKE 171673 381361 41 BRAKE No Model Compatibility List $2.55 / Each

1
171675 381364 43 ROLLER No Model Compatibility List $13.73 / Each

8
171688 381641 60 RESISTANCE SPRING No Model Compatibility List $0.46 / Each

2,10
171683 381702 54 AXLE No Model Compatibility List $2.78 / Each

8
171676 382009 44 CARRIAGE CAP No Model Compatibility List $1.16 / Each

9
171692 382083 72 PAD No Model Compatibility List $2.78 / Each

12,13,14
171663 382087 31 FRONT FRAME UPPER COVER No Model Compatibility List $45.32 / Each

9,3
171665 382088 33 REAR FRAME COVER No Model Compatibility List $49.98 / Each

9,3
171650 382613 12 REAR STABILIZER No Model Compatibility List $60.49 / Each

1
171667 382616 35 KNOB BRACKET No Model Compatibility List $20.10 / Each

2,3,4,5,6
171672 382617 40 RESISTANCE SPACER No Model Compatibility List $0.69 / Each

2,3,4,5,6,10
131419 382619 64 M10 X 30MM SCREW No Model Compatibility List $2.78 / Each

2
171678 382697 48 RESISTANCE PIN No Model Compatibility List $0.23 / Each

10,12,13,14
171655 384534 20 EXTENSION WIRE No Model Compatibility List $9.06 / Each

4,5,6
135191 384535 83 REED SWITCH/WIRE No Model Compatibility List $11.28 / Each

4,5,6
171674 385248 42 BRAKE PIN No Model Compatibility List $0.23 / Each

12,13,14
171695 385655 5 CONSOLE BRACKET No Model Compatibility List $48.82 / Each

7,2,3,4,5,6
171687 385725 58 CONSOLE No Model Compatibility List $111.41 / Each

7
171671 386462 39 CARRIAGE BUMPER No Model Compatibility List $0.69 / Each

1
171699 390834 19 PEDAL/STRAP No Model Compatibility List $32.67 / Each

8,9
171701 393470 # USER-S MANUAL, ECA No Model Compatibility List $0.00 / Each
Out Of Stock 		7
171702 393471 # USER-S MANUAL, FCA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
M6 Split Washer Lock 1019810 012142 79 4 M6 Split Washer Lock No Model Compatibility List $1.79 / Each
