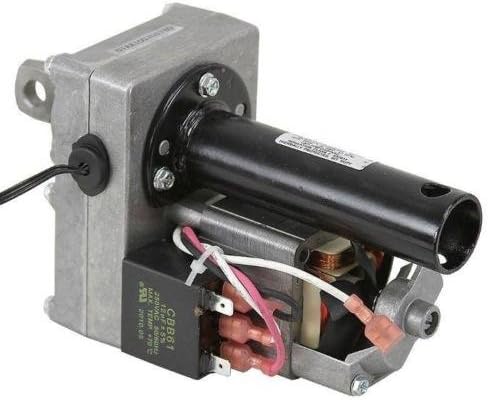

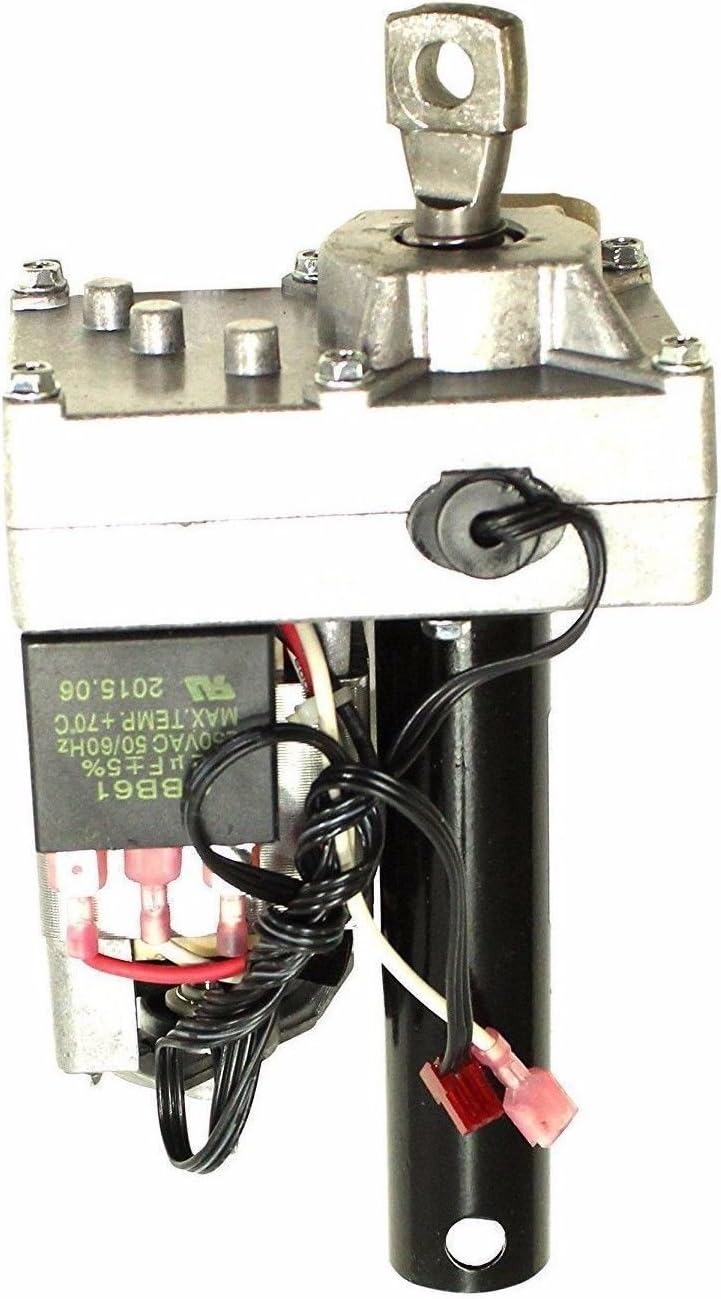

Incline Motor Lift Actuator

Catalog Number: 1000507

4.5" STROKE 900LB PULL 120 VAC LINEAR ACTUATOR

New, Icon Health & Fitness model# 293452 120V 900LB PULL linear actuator. Power extend and power retract. Rated to pull up to 900 pounds, extend under no load. Shaded pole motor with open construction and external fan, thermally protected. Hall-effect sensor connected to internal gearing allows for use with position-sensing circuits.

SPECIFICATIONS

Stroke 4-1/2"
Voltage 120 VAC, 60 Hz
Amperage 1.55 Amps
Push/Pull Rating
Dynamic Rated to Pull 900 lb.
Extension Speed
No Load 0.0896 in./sec.
RPM 27 RPM
Thread 3/4"-6 Acme Thread
Limit Switches No Limit Switches
Direction Reversible
Duty Intermittent
Retracted length 7-1/2"
Rod End Pin Hole 3/8"
Base End Pin Hole 1/2"
Size 8-1/4" x 4-1/4" x 3-1/8"
Shpg. 6 lb.
